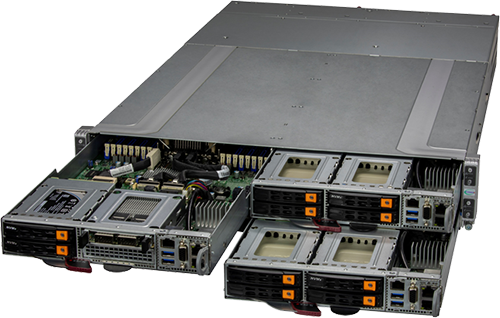

SYS-210GT-HNTF

Key Applications
- HPC
- Cloud Gaming
- MEC (Multi-Access Edge Computing)
- Multi-Purpose CDN
- High-availability Cache Cluster



Key Features

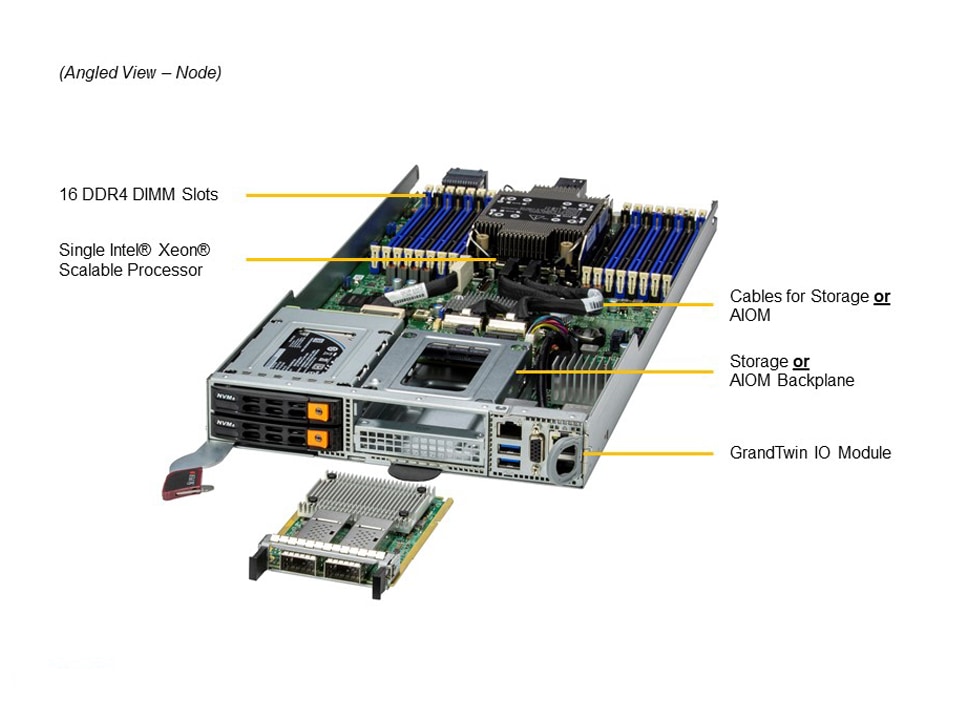

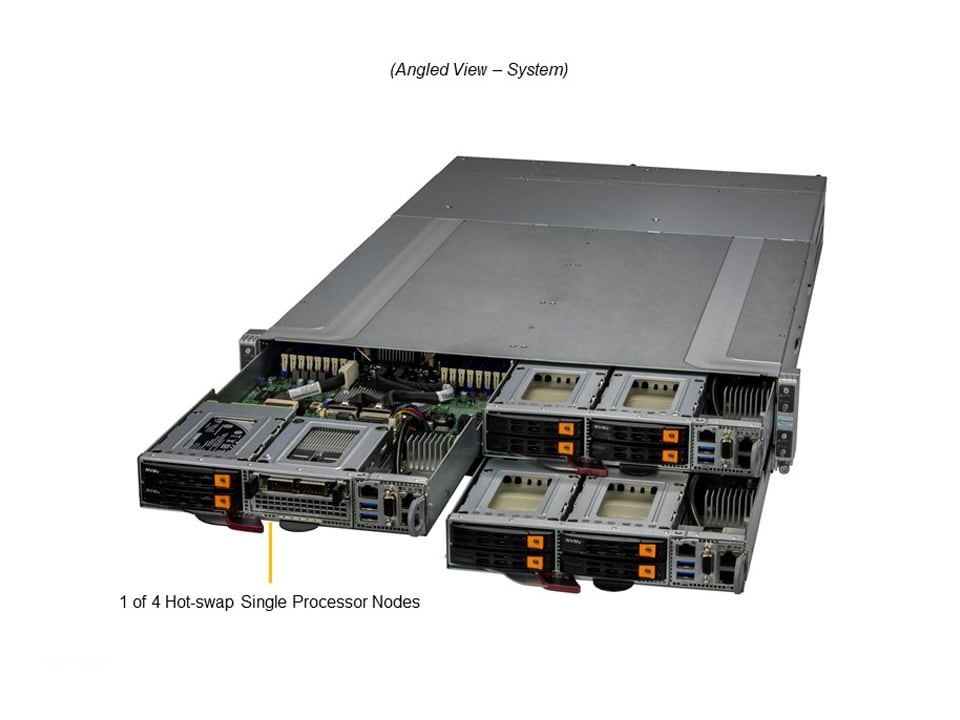

Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
  1. Single-Socket, 3rd Gen Intel® Xeon® Scalable processors up to 270W TDP
  2. Intel® C621A
  3. Up to 16 DIMM Slots or 4TB (with Intel® Optane™ Persistent Memory support)
  4. Optional: AIOM PCI-E 4.0 x16 LP (OCP 3.0 compliant)
  5. Integrated GrandTwin I/O Module with BMC, 2x USB, VGA and 2x 10GbE or 2x 25GbE
  6. Up to 4 Hot-swap 2.5" NVMe/SATA drives
  7. 2x cooling fans per 2U enclosure, 16.5K RPM Heavy Duty; Shared Cooling Design

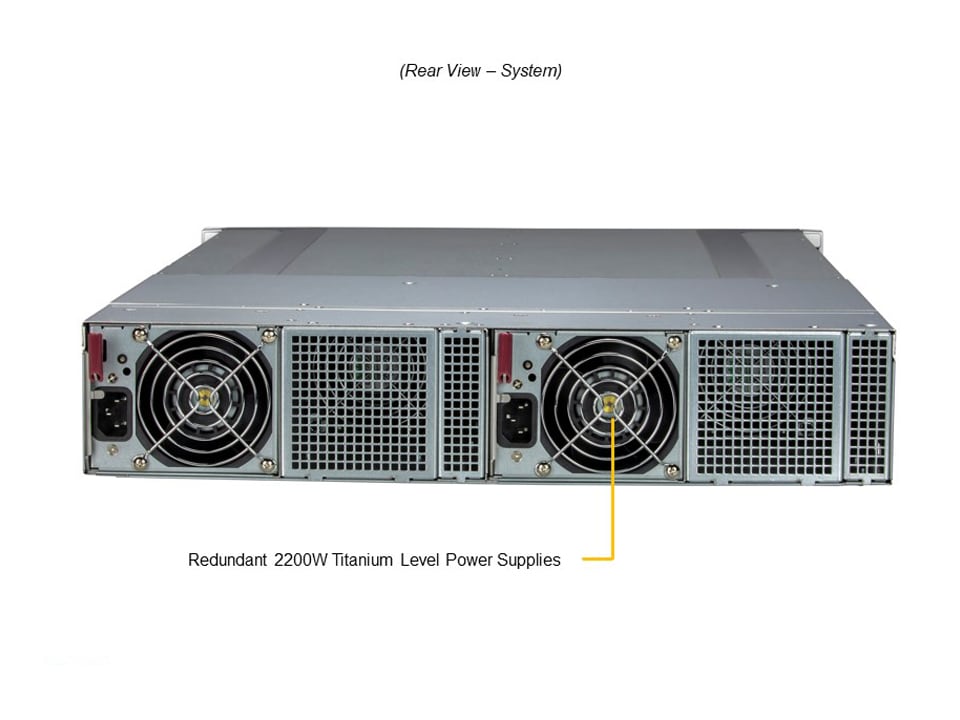

  8. 2200W Redundant Power Supplies Titanium Level (96%+); Shared Power Design
Specifications
Product SKUs
SYS-210GT-HNTF
  • SuperServer SYS-210GT-HNTF (Gray)

Motherboard


Super X12SPT-G

Processor (per Node)
CPU
  • Single Socket P+ (LGA 4189)
  • 3rd Gen Intel® Xeon® Scalable processors
  • Support CPU TDP 270W *
Cores
  • Up to 40C/80T; Up to 60MB Cache
Note
  • *Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization

System Memory (per Node)
Memory
  • Memory Capacity: 16 DIMM slots
  • Up to 4TB: 16x 256 GB DRAM
  • Up to 6TB: 8x 256 GB DRAM and 8x 512 GB PMem
  • Memory Type: 3200MHz ECC DDR4 RDIMM
  • Intel® Optane™ persistent memory 200 series

On-Board Devices (per Node)
Chipset
  • Intel® C621A
Network Connectivity
  • Via IO Module
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input / Output (per Node)
LAN
  • 1 RJ45 Dedicated BMC LAN port
USB
  • 2 USB 3.0 port(s) (2 USB)
Video
  • 1 VGA port(s)

System BIOS
BIOS Type
  • AMI 32MB Flash ROM

Management
Software
Power Configurations

PC Health Monitoring
CPU
  • 7+1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory.
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-GT214BF-R2K21BP

Dimensions and Weight
Height
  • 3.46" (88mm)
Width
  • 17.67" (449mm)
Depth
  • 28" (711.2mm)
Package
  • 9.76" (H) x 24.65" (W) x 45.28" (D)
Weight
  • Net Weight: 68 lbs (30.8 kg)
  • Gross Weight: 88 lbs (39.9 kg)
Available Color
  • Gray

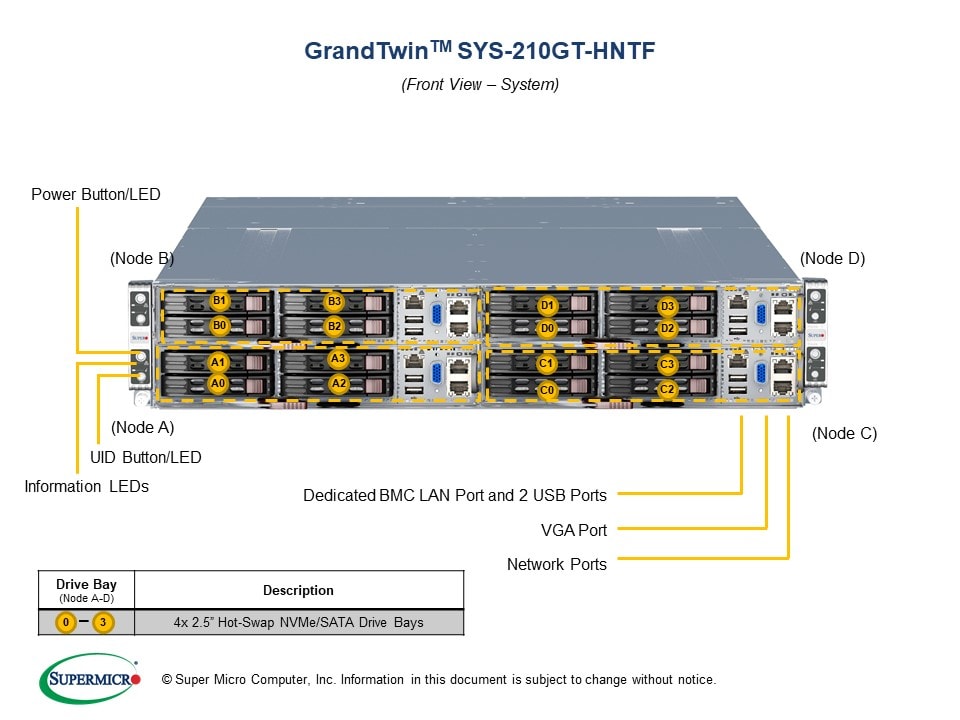

Front Panel
Buttons
  • Power On/Off button
  • UID button
LEDs
  • HDD activity LED
  • Network activity LEDs
  • Power status LED
  • Universal Information (UID) LED

Expansion Slots (per Node)
PCI-Express (PCI-E)
  • Slot 1: PCI-E 4.0 x16 LP (Replace Drive Bay 0 & 1); AIOM - PCI-E 4.0 x16 LP (Replace Drive Bay 2 & 3)

Drive Bays / Storage (per Node)
Hot-swap
  • 4x 2.5" hot-swap NVMe/SATA drive bays (4x 2.5" NVMe dedicated)
M.2
  • 2 M.2 NVMe OR 2 M.2 SATA3

System Cooling
Fans
  • 2x 16.5K RPM Heavy Duty 8cm Fan(s)

Power Supply
2U 2200W Redundant Power Supply
Dimension

(W x H x L)
  • 106 x 84 x 245 mm
AC Input
  • 100-127Vac / 50-60Hz
Certification   Titanium Level




  [ Test Report ]

Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity:
       5% to 95% (Non-Condensing)


Parts List
Parts List - (Items Included)


Part Number

Qty

Description

Motherboard / Chassis MBD-X12SPT-G

CSE-GT214BF-R2K21BP
4

1
Super X12SPT-G Motherboard

2U Chassis
Cable 1 CBL-PWCD-0578-1 2 PWCD,US,IEC60320 C14 TO C13,3FT,14AWG,RoHS
Software SFT-OOB-LIC 4 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0077V 4 X12 ICX/CPX CPU Heatsink (78x113x25.5mm), VC Base, Cu Fin
*Power Supply PWS-2K21A-BR 2 2200W MicroBlade redundant Power Supply, Titanium Level
*Power Distributor BPN-PDB-GT214 1 Power Distribution for GrandTwin
*FAN 1 FAN-0183L4 2 80x80x38 mm, 16.5K RPM, Non-hot-swappable Middle Cooling Fan for X11 Twin Pro, X10 and X11 Big Twin Series Servers
*Rail Set MCP-290-00172-0N 1 2U non-tip rail set, quick release, default for 2,3U 17.6";W
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
  Part Number Qty Description
AIOM Enablement Kit MCP-450-21403-ASM 0 - 1 GT214 AIOM kit,RoHS
GrandTwin I/O Module 2x10GbE AOC-GTG-I2T-O 1 Grand Twin I/O card 2-Port 10GbE RJ45, Intel Carlsville X710-AT2, w/ 1x BMC dedicated LAN/RJ45 PORT, 2x USB 3.0 & 1x VGA port.,RoHS
GrandTwin I/O Module 2x25GbE AOC-G25G-M2S-O 1 Grand Twin I/O card 2-Port 25GbE SFP28, Mellanox CX-4 Lx EN, w/ 1x BMC dedicated LAN/RJ45 PORT, 2x USB 3.0 & 1x VGA port.,RoHS
HDD Dummy Tray MCP-120-21401-0N 0 - 2 GT214 FIO HDD dummy bracket(1slot)
NVMe Enablement Kit MCP-450-21402-ASM 0 - 2 GT214 2 port NVMe U.2 Enablement Kit, RoHS
SAS/SATA Enablement Kit MCP-450-21404-ASM 0 - 1 GT214 4 Port SATA/SAS U.2 Enablement kit, RoHS
SPI Capable TPM 1.2 AOM-TPM-9670V-S - SPI Capable TPM 1.2 Provisioned for Server, Horizontal Form Factor
SPI Capable TPM 2.0 AOM-TPM-9670V-S - SPI Capable TPM 2.0 Provisioned for Server, Horizontal Form Factor
VROC Intel SSD Only AOC-VROCINTMOD - Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only)
VROC Premium AOC-VROCPREMOD - Intel VROC Premium, RAID 0, 1, 5, 10
VROC Standard AOC-VROCSTNMOD - Intel VROC Standard, RAID 0, 1, 10
