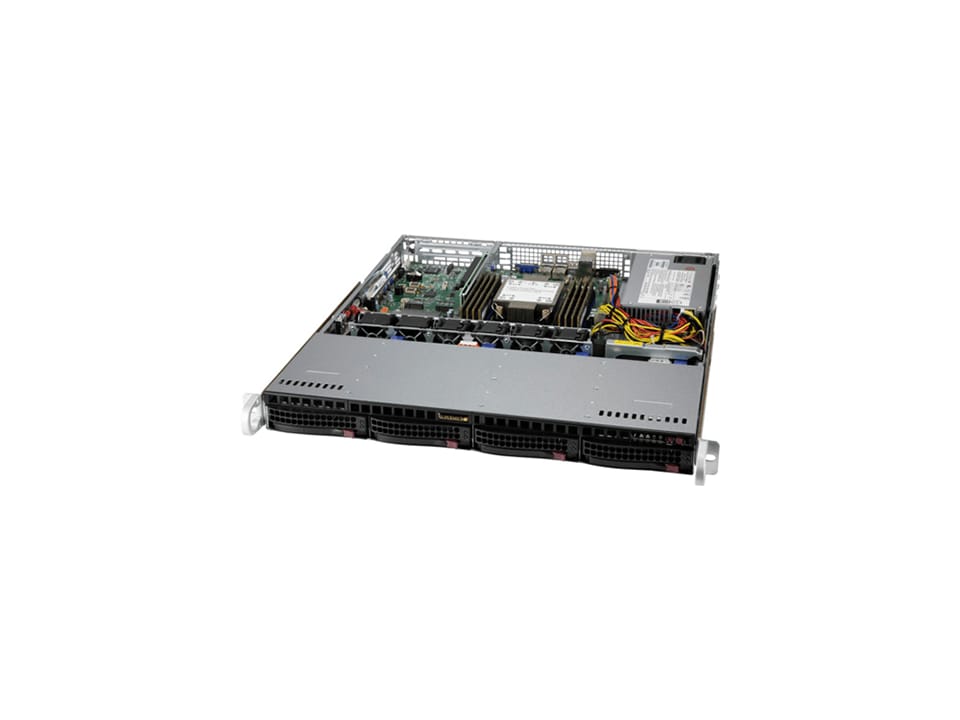

SYS-510P-M

Key Applications
- Small Business
- Web/Hosting Application
- Email/Firewall/Print Server



Key Features

  1. Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors. Up to 220W TDP.
  2. 8 DIMMs; Supports 3DS DDR4-3200: RDIMM/LRDIMM/Intel® DCPMM
  3. 1 PCI-E 4.0 x16 (FHHL) slot
  4. Intel® Ethernet Controller i350 2x 1GbE RJ45
  5. 4x hot-swap 3.5'' Hybrid SATA3/NVMe drive bays, SAS3 with additional SAS controller card; Onboard 2x NVMe/SATA M.2
  6. Single Platinum 500W Power Supply
Specifications
Product SKUs
SYS-510P-M
  • SuperServer SYS-510P-M (Black)

Motherboard


Super X12SPO-F

Processor
CPU
  • Single Socket P+ (LGA 4189)
  • Support Intel® 3rd Gen Xeon® Scalable Processors
  • Support CPU TDP 220W
Cores
  • Up to 36C/72T; Up to 54MB Cache

System Memory
Memory
  • Memory Capacity: 8 DIMM slots
  • Up to 2TB: 8x 256 GB DRAM
  • Up to 3TB: 4x 256 GB DRAM and 4x 512 GB PMem
  • Memory Type: 3200/2933/2666MHz ECC DDR4 RDIMM;LRDIMM
  • Intel® Optane™ persistent memory 200 series
Memory Voltage
  • 1.25 V
Error Detection
  • Yes

On-Board Devices
SATA
  • SATA3 (6Gbps); RAID 0/1/5/10 support
NVMe
  • NVMe; RAID 0/1/5/10 support (*VROC HW key is required)
Chipset
  • Intel® C621A
Network Connectivity
  • 2x 1GbE BaseT with Intel® i350
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input / Output
SATA
  • 10 SATA (6Gbps) port(s)
LAN
  • 1 RJ45 Dedicated IPMI LAN port
  • 2 RJ45 1GbE LAN ports
USB
  • 5 USB 3.2 Gen 1 port(s) (2 headers; 2 rear; 1 Type A)
  • 6 USB 2.0 port(s) (4 headers; 2 rear)
Video
  • 1 VGA port(s)
Serial Port
  • 2 COM Port(s) (1 header; 1 rear)
DOM
  • 2 SuperDOM (Disk on Module) port with built-in power

System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM

Management
Software
Power Configurations
  • ACPI/APM Power Management

PC Health Monitoring
CPU
  • 7+1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-813MF2TS-505CBP

Dimensions and Weight
Height
  • 1.7" (43mm)
Width
  • 17.2" (437mm)
Depth
  • 19.98" (507mm)
Package
  • 8.5" (H) x 24" (W) x 29.5" (D)
Weight
  • Net Weight: 17.6 lbs (8 kg)
  • Gross Weight: 30.4 lbs (13.8 kg)
Available Color
  • Black

Front Panel
Buttons
  • Power On/Off
  • System Reset
LEDs
  • Device Activity
  • LAN 1 Activity
  • LAN 2 Activity
  • Power status
  • System information

Expansion Slots
PCI-Express (PCI-E)
  • Slot 1: PCI-E 4.0 x16 FHHL

Drive Bays / Storage
Drive Bays
  • 4x 3.5" NVMe/SATA drive bays (4x 3.5" NVMe hybrid)
M.2
  • 2x PCI-E 3.0 x 4 and SATA
  • M-key, 2280, 22110
Peripheral Bays
  • 2x 2.5" drive bays

System Cooling
Fans
  • 2 AOC cooling Fan(s) (optional)
  • 4 middle cooling PWM 40x40x28mm Fan(s)

Power Supply
1U 500W Multi-output, Platinum level with PMbus 24pin, W100xL180xH40mm,RoHS/REACH
Total Output Power
  • 500W
Dimension

(W x H x L)
  • 100 x 40 x 180 mm
AC Input
  • 500W: 100-240Vac / 3.2A-6.6A / 50-60Hz
+12V
  • Max: 41A / Min: 0.5A
5V SB
  • Max: 3A / Min: 0A
Certification   Platinum Level




  [ Test Report ]

Operating Environment
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)


Parts List
Parts List - (Items Included)


Part Number

Qty

Description

Motherboard / Chassis MBD-X12SPO-F

CSE-813MF2TS-505CBP
1

1
Super X12SPO-F Motherboard

1U Chassis
Backplane BPN-SAS3-815TQ-N4 1 4-port 1U SAS3 12Gbps Hybrid backplane, support up to 4x 3.5-inch SAS3/SATA3/NVMe Storage Devices
Cable 1 CBL-0182L 1 PWR EXTENSION.HDD TO RIGHT ANGLE HDD,PBF
Cable 2 CBL-SAST-0811 1 MINI SAS HD-4 SATA (RA),12G,INT,50/50/60/70,70CM SB,30AWG
Manual MNL-2267-QRG 1 510P-M/MR Quick Reference Guide
Riser Card RSC-S-6G4 1 1U LHS Standard riser card with one PCI-E 4.0 x16 slot,HF,Ro
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0077P 1 1U Passive CPU Heat Sink for X12 Generation Intel Whitley and Cedar Island Platforms
*Power Supply PWS-505P-1H 1 1U 500W Multi-output, Platinum level w/ PMbus 24pin, W100xL180xH40mm,RoHS/REACH
*Cable 3 CBL-0071L 1 ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
*Peripheral Drive1 CSE-PT93L-B 1 Black DVD dummy cover for SC813, 813M, 815, PBF-RoHS
*FAN 1 FAN-0154L4 4 40x40x28 mm, 22.5K RPM, SC813MF Middle Cooling Fan,RoHS/REACH
*Front Panel FPB-FP813-D 1 Front control board dual color for SC815,SC813M (C)
*Drive Tray(s) MCP-220-00075-0B 4 Black gen 5.5 hot-swap 3.5“ HDD tray
*Parts MCP-260-00078-0N 1 1U I/O shield for X10 and X9 Server MB with 5X5mm vent hole and EMI Gasket,RoHS/REACH,PBF
*Rail Set MCP-290-00102-0N 1set Outer rail, quick-release type, 25.6" to 33.05"
*Rail Set MCP-290-00108-0N 1set Inner rail, front, short, quick-release type
*Rail Set MCP-290-00110-0N 1set Inner rail, extension (quick) for 1U 17.2
*Fan Holder MCP-320-00060-0N 1 Slim Fan tray for six 40x28 fans in SC813M (for X11DPL-i 12"x10.15")
*Parts MCP-340-00001-01 2 Dummy fan 40x28mm
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
  Part Number Qty Description
3.5" to 2.5" Converter Tray(s) MCP-220-00043-0N • - Hot-swap Gen-4 3.5" to 2.5" HDD tray, Black
3.5'' to 2.5" NVMe Drive Tray(s) MCP-220-00138-0B • - Tool-less Hot-swap Gen-5.5 NVMe 3.5'' to 2.5'' drive tray, Orange tab, Black
Add-on Card for additional M.2 AOC-SLG3-2H8M2 - Standard LP, PCI-E 3.0 x8, supports 2x NVMe/SATA M-Key M.2 Modules; RAID 0,1
Cooling Fan(s) FAN-0154L4 • - 40x40x28 mm, 22.5K RPM, Middle Cooling Fan
DVD-ROM / DVD-RW DVM-TEAC-DVDRW-SBT5 1 PHILPS slim DVD-RW SATA drive
DVM-TEAC-DVD-SBT5 1 TEAC slim DVD-ROM SATA drive
DVD-ROM Accessory MCP-220-81502-0N • + 1pc CBL-0099 • (max 1pc) 1 Slim SATA DVD mounting kit
Front Bezel CSE-PTFB-813-02B 1 Black Front Bezel w/ Round Venting Holes
CSE-PTFB-813LB 1 Black Front Bezel
Hot-swap 2.5" kit (DVD slot) MCP-220-81506-0N • + 1pc CBL-0099 • (max 1pc) 1 Single 2.5" SAS3 (12Gb/s) hot swap in slim DVD form factor
Hot-swap 2.5" kit (FDD slot) MCP-220-81504-0N • 1 Single 2.5" SAS3 (12Gb/s) hot swap in slim FDD form factor
Inlet Thermal Sensor MCP-280-00034-0N 1 Universal Thermal sensor kit with 40cm I2C cable
Intel VROC RAID Key for NVMe AOC-VROCPREMOD 1 Premium Upgrade module (Intel + 3rd party Vendor SSD); RAID 0/1/10/5
AOC-VROCSTNMOD 1 Standard Upgrade module (Intel + 3rd party Vendor SSD); RAID 0/1/10
AOC-VROCINTMOD 1 Intel SSD Only Upgrade module; RAID 0/1/10/5
NVMe Cable(s) CBL-SAST-1264-85 - Slimline x8 (STR) to 2x Oculink x4 (STR),64CM,85 OHM,Ro
Software SFT-DCMS-Single
DataCenter Management Package (per node license) consists of:
  • OOB Management package capabilities provided by SFT-OOB-LIC
  • Centralized Management Console licenses for health monitoring, power management and firmware upgrades
  • RESTful API support to integrate server management into existing management infrastructure (roadmap Q1’15)
  • Advanced Power Management licenses to manage power on heterogeneous server vendor products
  • Remote Software installation support
  • Remote debug assistance directly from product engineers

Software tools: SSM, SPM, SUM',ABOVE,ol_width=750,ol_border=1,ol_cellpad=6);">SFT-DCMS-Single
1 DataCenter Management Package (per node license)
Storage Control Card and Cable(s) AOC-S3008L-L8I 1 Standard LP, 8 internal ports (12Gb/s) PCI-E 3.0 x8, 63HDD; RAID 0, 1, 10
AOC-S3908L-H8iR-16DD + 1x CBL-SAST-1275A-100 1 Standard LP, 8 internal ports (12Gb/s) PCI-E 4.0 x8, 16HDD; RAID 0, 1, 5, 6, 10, 50, 60
AOC-S3108L-H8iR-16DD 1 Standard LP, 8 Internal ports (12Gb/s) PCI-E 3.0 x8, 16HDD; RAID 0, 1, 5, 6, 10, 50, 60
Storage Control Card and Cable(s) (HBA) AOC-S3808L-L8IT + 1x CBL-SAST-1275A-100 1 Standard LP, 8 internal ports (12Gb/s) PCI-E 4.0 x8, 122HDD; HBA
AOC-S3008L-L8E 1 Standard LP, 8 internal ports (12Gb/s) PCI-E 3.0 x8, 122HDD; HBA
TPM AOM-TPM-9671H-S-O 1 TPM 1.2, horizontal form factor, provisioned for server
AOM-TPM-9670H-S-O 1 TPM 2.0, horizontal form factor, provisioned for server
