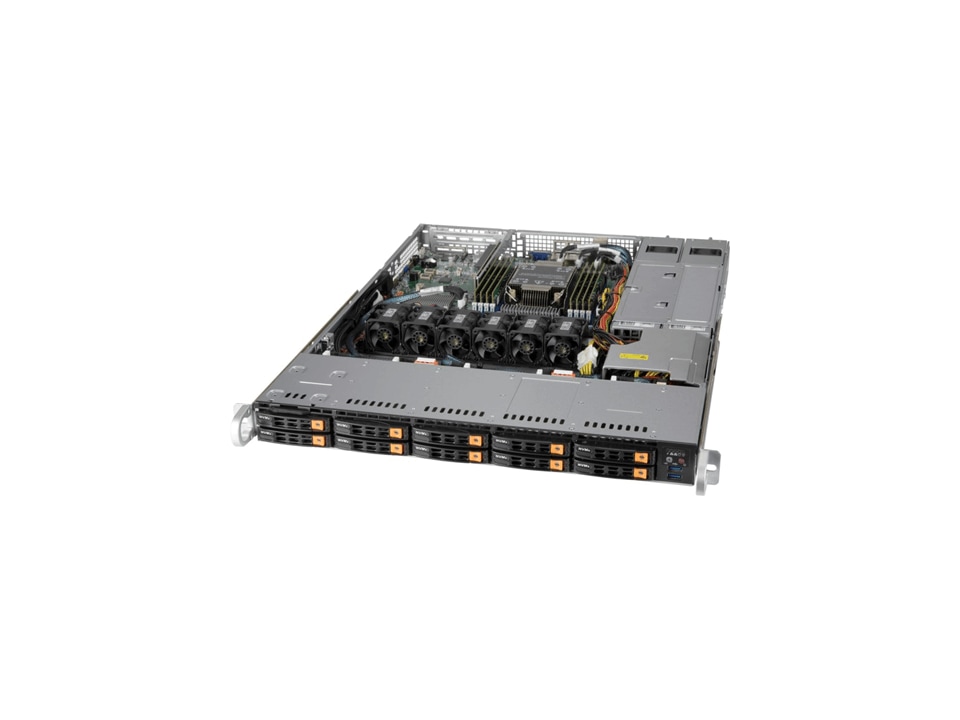

SSG-110P-NTR10

Key Applications
- Virtualization
- Cloud Computing
- All Flash Storage
- CDN Optimized



Key Features

  1. Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors. Up to 270W TDP.
  2. 8 DIMMs; Supports 3DS DDR4-3200: RDIMM/LRDIMM/Intel® DCPMM
  3. 1 PCI-E 4.0 x16 (FHHL) slot
  4. Intel® Ethernet Controller X550 2x 10GbE RJ45
  5. 10x Hot-swap 2.5'' All NVMe Gen 4 tool-less drive bays; Onboard 2x NVMe Gen 3/SATA M.2
  6. Redundant Platinum 860W Power Supply
Specifications
Product SKUs
SSG-110P-NTR10
  • SuperServer SSG-110P-NTR10 (Black)

Motherboard


Super X12SPO-NTF

Processor
CPU
  • Single Socket P+ (LGA 4189)
  • Support Intel® 3rd Gen Xeon® Scalable Processors
  • Support CPU TDP 270W

System Memory
Memory
  • Memory Capacity: 8 DIMM slots
  • Up to 2TB: 8x 256 GB DRAM
  • Up to 3TB: 4x 256 GB DRAM and 4x 512 GB PMem
  • Memory Type: 3200/2933/2666MHz ECC DDR4 RDIMM;LRDIMM
  • Intel® Optane™ persistent memory 200 series
Memory Voltage
  • 1.25 V
Error Detection
  • Yes

On-Board Devices
NVMe
  • NVMe Gen 4 via MB onboard controller; RAID 0, 1, 5, 10 support (with additional VROC module)
Chipset
  • Intel® C621A
Network Connectivity
  • 2x 10GbE BaseT with Intel® X550
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

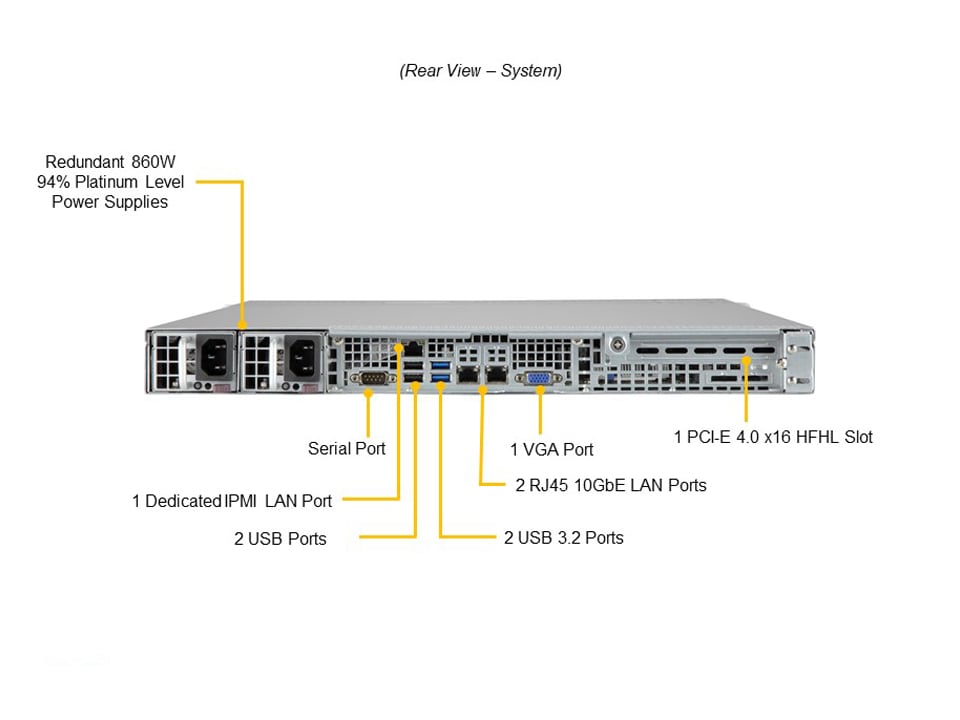

Input / Output
LAN
  • 1 RJ45 Dedicated IPMI LAN port
  • 2 RJ45 10GBase-T LAN ports
USB
  • 5 USB 3.2 Gen 1 port(s) (2 front; 2 rear; 1 Type A)
  • 4 USB 2.0 port(s) (2 headers; 2 rear)
Video
  • 1 VGA port(s)
Serial Port
  • 2 COM Port(s) (1 header; 1 rear)
DOM
  • 2 SuperDOM (Disk on Module) port with built-in power

System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM

Management
Software
Power Configurations
  • ACPI/APM Power Management

PC Health Monitoring
CPU
  • 7+1 Phase-switching voltage regulator module (VRM)
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-116TS-R860CBP-N10

Dimensions and Weight
Height
  • 1.7" (43mm)
Width
  • 17.2" (437mm)
Depth
  • 23.5" (597mm)
Package
  • 8" (H) x 24" (W) x 32" (D)
Weight
  • Net Weight: 25 lbs (11.34 kg)
  • Gross Weight: 38 lbs (17.24 kg)
Available Color
  • Black

Front Panel
Buttons
  • Power On/Off
  • UID button
LEDs
  • Device Activity
  • LAN 1 Activity
  • LAN 2 Activity
  • Power status
  • System information

Expansion Slots
PCI-Express (PCI-E)
  • Slot 1: PCI-E 4.0 x16 FHHL

Drive Bays / Storage
Hot-swap

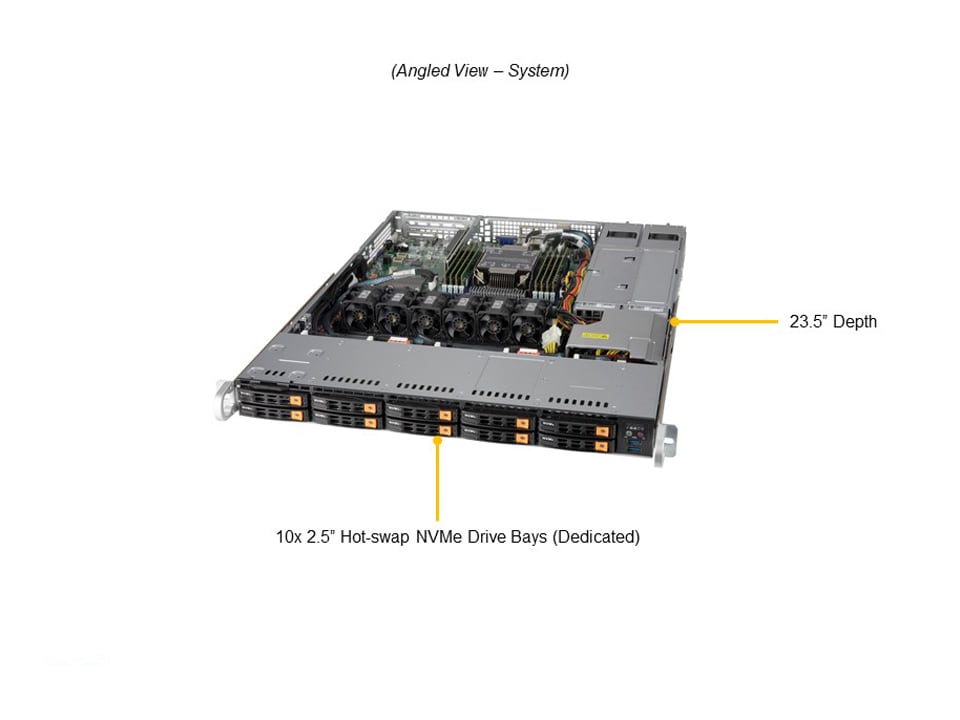

  • 10x 2.5" hot-swap NVMe drive bays (10x 2.5" NVMe dedicated)
M.2
  • 2x PCI-E 3.0 x4 and SATA
  • Form Factor: 2280, 22110
  • Key: M-key

System Cooling
Fans
  • 6x (4cm x4cm x5.6cm) heavy duty fans with optimal fan speed control
Air Shroud
  • 1 Air Shroud(s)

Power Supply
AC 860W, Platinum Level, Redundant Power Supply, 54.5mm width
Dimension

(W x H x L)
  • 54.5 x 40.25 x 320 mm
Output Type
  • Gold Finger
Certification   Platinum Level




  [ Test Report ]

Operating Environment
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)


Parts List
Parts List - (Items Included)


Part Number

Qty

Description

Motherboard / Chassis MBD-X12SPO-NTF

CSE-116TS-R860CBP-N10
1

1
Super X12SPO-NTF Motherboard

1U Chassis
Backplane BPN-SAS3-LB16A-N10 1 1U 10-Slot SFF Hybrid Backplane Supports 10xSAS3/SATA3/NVMe4 Storage Devices with 1x(2x4) + 2x(1x4) + 1x(2x2) Power Connectors
Cable 1 CBL-0062L 1 12V 8 TO 8 PIN POWER CONNECTOR EXTENSION, LF
Cable 2 CBL-SAST-1231-85 1 Slimline x8 (STR) to Slimline x8 (STR),INT,30CM, 85 OHM
Cable 3 CBL-SAST-1267-85 4 Slimline x8 (STR) to Slimline x8 (STR),INT,67CM,85 OHM,
FAN 1 FAN-0141L4 2 40x40x56 mm 20.5K RPM / 17.6K RPM Counter-rotating Fan
Manual MNL-2366-QRG 1 110P-NTR10 Quick Reference Guide
Riser Card RSC-S-6G4 1 1U LHS Standard riser card with one PCI-E 4.0 x16 slot,HF,Ro
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0077P 1 1U Passive CPU Heat Sink for X12 Generation Intel Whitley and Cedar Island Platforms
*Power Supply PWS-860P-1R2 2 1U 860W, Redundant power supply, 54.5mm width, Platinum with
*Power Distributor PDB-PT112-2424 1 SC112 24PIN REDUNDANT PWS DISTRIBUTOR
*Cable 4 CBL-0335L 1 FRONT CTL CABLE 20 PIN TO 20 PIN W/TUBE,70CM,PBF
*Cable 5 CBL-PWCD-0160-IS 2 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
*FAN 2 FAN-0141L4 4 40x40x56 mm 20.5K RPM / 17.6K RPM Counter-rotating Fan
*Front Panel FPB-FP116-DU3 1 Front control board with two USB 3.0 for SC116/SC119X
*Drive Tray(s) MCP-220-00167-0B 10 Gen 3 2.5-inch Tool-less NVMe drive tray (clip design),RoHS
*Rear Window MCP-240-00086-0N 1 STD rear window for SC113 redundant PWS
*Power Supply MCP-250-00009-0N 1 SC113 Redundant Power Distributor Cover
*Parts MCP-260-00078-0N 1 1U I/O shield for X10 and X9 Server MB with 5X5mm vent hole and EMI Gasket,RoHS/REACH,PBF
*Rail Set MCP-290-00063-0N 1 set Rail set, quick/quick, default for 1U 17.2"W for SC113/SC116,RoHS/REACH
*Air Shroud MCP-310-19002-0N 1 SC815/113/116 Intel DP X9, X8 PC air shroud, 12x13MB
*Fan Holder MCP-320-00027-0B 24 Plastic pin for 40x28, 40x56 fan
*Fan Holder MCP-320-00028-0B 1 Fan holder for 6pcs 40x56 fan, assemble-able for SC819/SC119/SC818/SC116
*Fan Holder MCP-340-00035-0B 2 Dummy fan 40x56mm for 40x56 counter-rotating fan (cost-effective)
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
  Part Number Qty Description
Inlet Thermal Sensor MCP-280-00033-0N 1 Universal Thermal sensor kit with 80cm I2C cable
Intel VROC RAID Key for NVMe AOC-VROCPREMOD 1 Premium Upgrade module (Intel + 3rd party Vendor SSD); RAID 0/1/10/5
AOC-VROCSTNMOD 1 Standard Upgrade module (Intel + 3rd party Vendor SSD); RAID 0/1/10
AOC-VROCINTMOD 1 Intel SSD Only Upgrade module; RAID 0/1/10/5
Software SFT-DCMS-Single
DataCenter Management Package (per node license) consists of:
  • OOB Management package capabilities provided by SFT-OOB-LIC
  • Centralized Management Console licenses for health monitoring, power management and firmware upgrades
  • RESTful API support to integrate server management into existing management infrastructure (roadmap Q1’15)
  • Advanced Power Management licenses to manage power on heterogeneous server vendor products
  • Remote Software installation support
  • Remote debug assistance directly from product engineers

Software tools: SSM, SPM, SUM',ABOVE,ol_width=750,ol_border=1,ol_cellpad=6);">SFT-DCMS-Single
1 DataCenter Management Package (per node license)
TPM AOM-TPM-9671H-O 1 TPM 1.2, horizontal form factor, provisioned for server
AOM-TPM-9670H-O 1 TPM 2.0, horizontal form factor, provisioned for server
