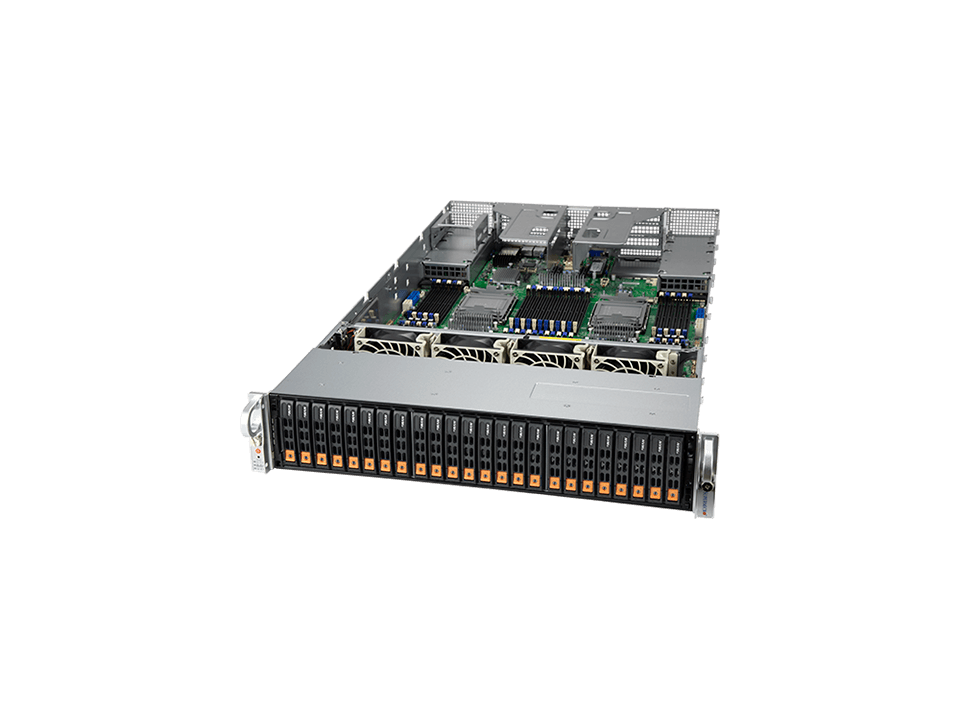

SYS-240P-TNRT

Key Applications
- Artificial Intelligence (AI)
- Business Intelligence
- ERP, CRM
- Scientific Virtualization
- In-Memory Database
- HCI
- SAP HANA



Key Features

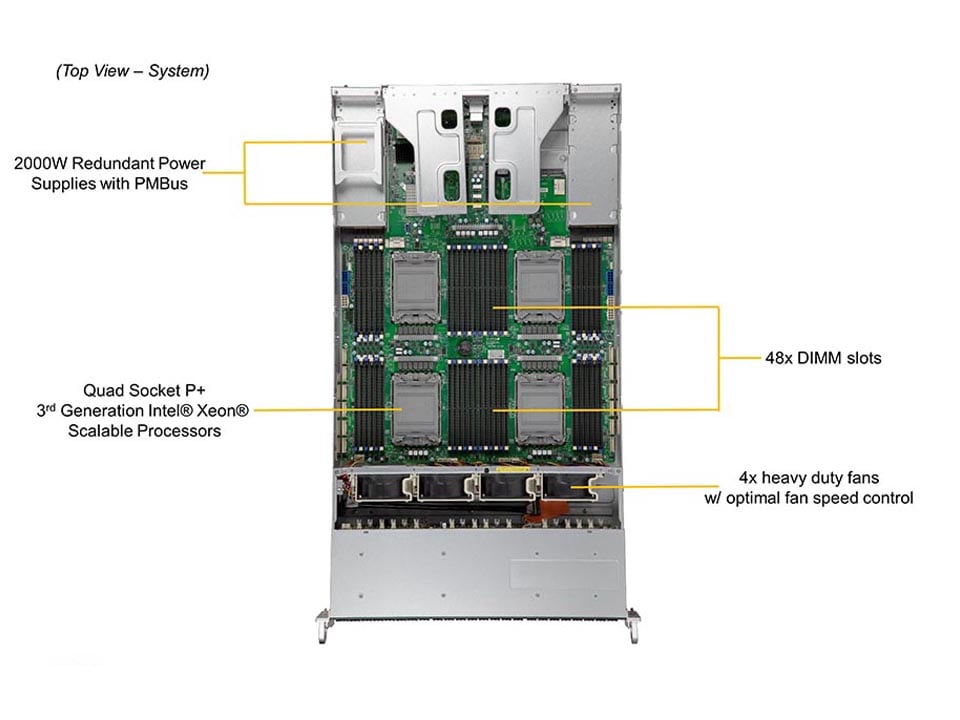

  1. Quad Socket P+ (LGA-4189) 3rd Generation Intel® Xeon® Scalable processors
  2. 48 DIMMs; Up to 18TB 3DS ECC DDR4-3200:LRDIMM/RDIMM/Intel® DCPMM
  3. Intel® Ethernet Controller X710-TM4 2x 10G RJ45 + 2x 10G SFP+ port; (optional) AIOM up to 100G QSFP28
  4. Up to 24 Hot-swap 2.5" NVMe/SAS3/SATA3 drive bays (Default with 8 SAS3/SATA3 drive bays); Onboard 2x M.2 SATA.
  5. 4 heavy duty fans w/ optimal fan speed control; 1 Air Shroud
Specifications
Product SKUs
SYS-240P-TNRT
  • SuperServer SYS-240P-TNRT (Black)

Motherboard


Super X12QCH+

Processor
CPU
  • Quad Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
  • 6 UPI up to 10.4GT/s
  • Support CPU TDP 120-250W
Cores
  • Up to 28C/56T; Up to 38.5MB Cache

System Memory
Memory
  • Memory Capacity: 48 DIMM slots
  • Up to 12TB: DRAM
  • Up to 18TB: PMem
  • Memory Type: 3200MHz ECC DDR4 LRDIMM/RDIMM
  • Intel® Optane™ persistent memory 200 series

On-Board Devices
Chipset
  • Intel® C621
Network Connectivity
  • 2x 10GbE BaseT + 2x 10GbE SFP+ with Intel® X710-TM4
  • (Optional) AIOM 100G QSFP 28
  • No NIC option supported
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input / Output
Video
  • 1 VGA port(s)

System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM

Management
Software
Power Configurations
  • ACPI Power Management
  • Power-on mode for AC power recovery

PC Health Monitoring
CPU
  • 4+1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-218HTS-R2K08P

Dimensions and Weight
Height
  • 3.5" (89mm)
Width
  • 17.3" (439.5mm)

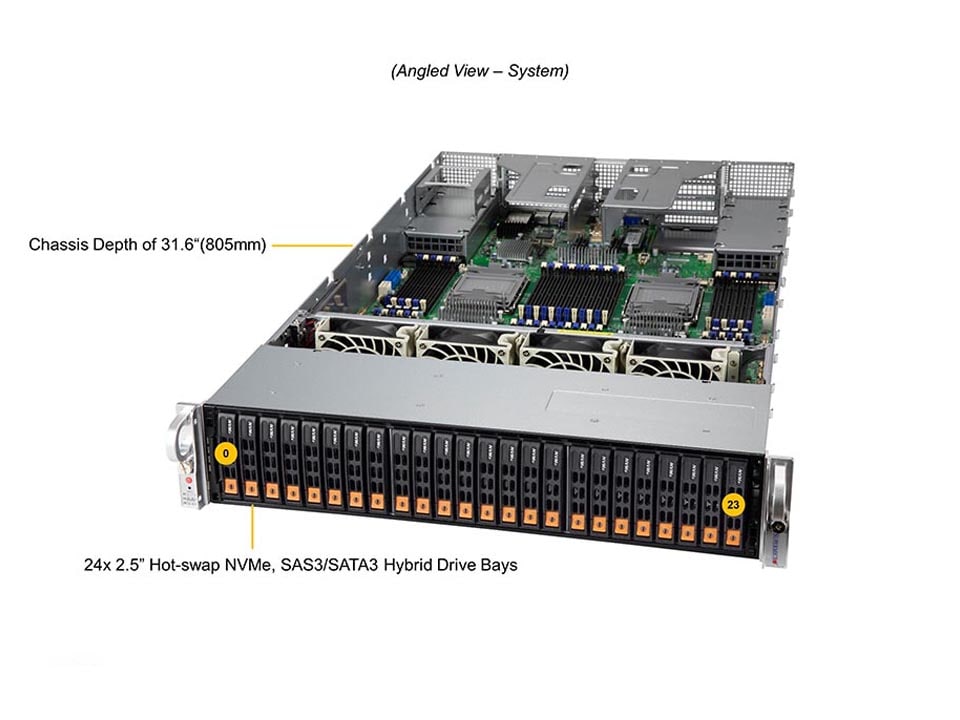

Depth
  • 31.6" (803mm)
Package
  • 9.75" (H) x 26.5" (W) x 43.5" (D)
Weight
  • Net Weight: 45.5 lbs (20.64 kg)
  • Gross Weight: 71.5 lbs (32.43 kg)
Available Color
  • Black

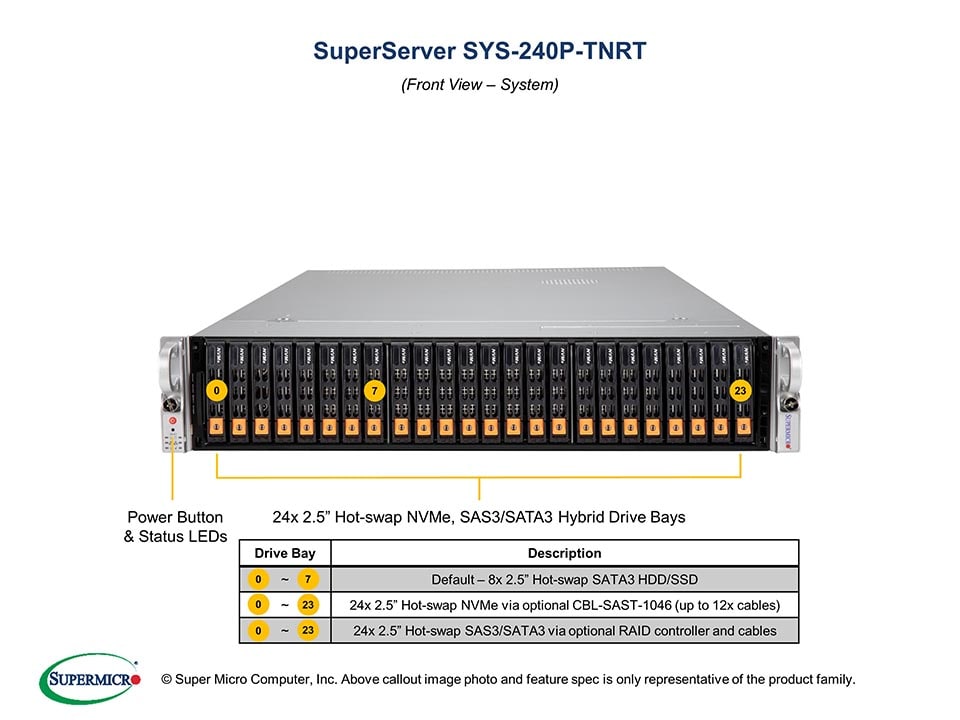

Front Panel
Buttons
  • Power On/Off
  • System Reset
LEDs
  • HDD activity
  • Network activity
  • Power status
  • System information (overheat/UID)

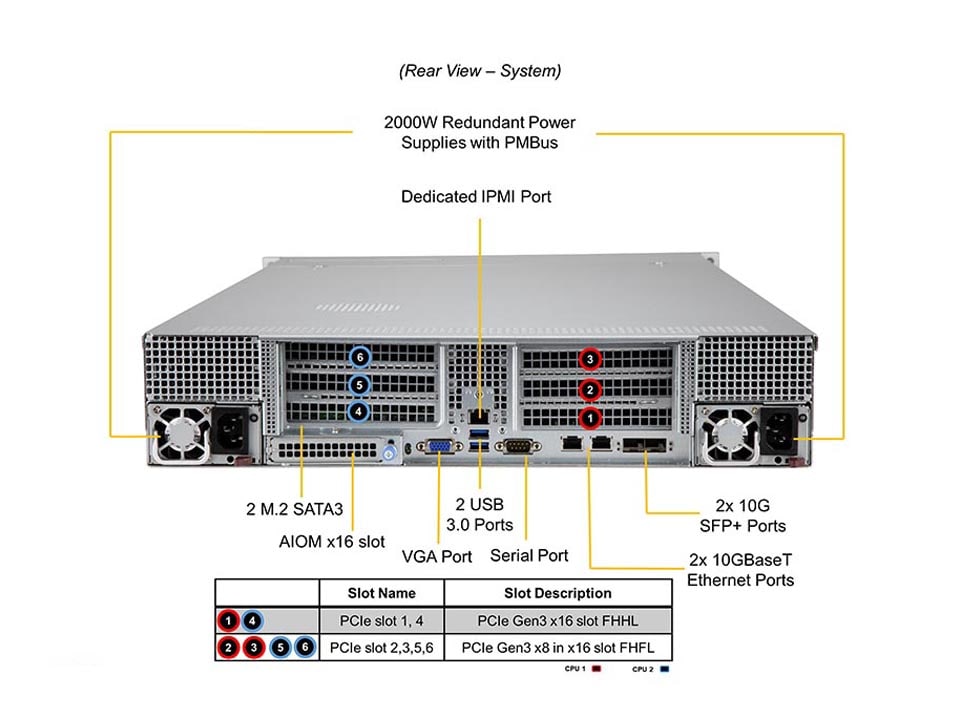

Expansion Slots
PCI-Express (PCI-E)
  • Slot 1: PCI-E 3.0 x16 FHHL
  • Slot 2: PCI-E 3.0 x8 FHFL
  • Slot 3: PCI-E 3.0 x16 FHFL
  • Slot 4: PCI-E 3.0 x16 FHHL
  • Slot 5: PCI-E 3.0 x16 FHFL
  • Slot 6: PCI-E 3.0 x8 FHFL
  • Slot 7: PCI-E 3.0 x8 LP (Optional)
  • Slot 8: PCI-E 3.0 x8 LP (Optional)
  • Slot 9: PCI-E 3.0 x8 LP (Optional)
  • Slot 10: PCI-E 3.0 x8 LP (Optional)

Drive Bays / Storage
Hot-swap
  • 24x 2.5" hot-swap NVMe/SAS3/SATA3 drive bays (24x 2.5" NVMe hybrid)
M.2
  • 2 M.2 NVMe OR 2 M.2 SATA3

System Cooling
Fans
  • 4x 8cm heavy duty fans with optimal fan speed control
Air Shroud
  • 1 Air Shroud(s)

Power Supply
2000W Redundant Power Supplies with PMBus
Dimension

(W x H x L)
  • 73.5 x 40 x 203 mm
AC Input
  • 1000W: 100-127Vac / 50-60Hz
  • 1800W: 200-220Vac / 50-60Hz
  • 1980W: 220-230Vac / 50-60Hz
  • 2000W: 220-240Vac / 50-60Hz
  • 2000W: 230-240Vac / 50-60Hz
  • 2000W: 230-240Vdc (For CCC Only)
+12V
  • Max: 83A / Min: 0A (100Vac-127Vac)
  • Max: 150A / Min: 0A (200Vac-220Vac)
  • Max: 165A / Min: 0A (220Vac-230Vac)
  • Max: 166A / Min: 0A (230Vac-240Vac)
12V SB
  • Max: 3.5A / Min: 0A
Output Type
  • 25 Pairs Gold Finger Connector
Certification   Titanium Level




  [ Test Report ]

Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity:
       5% to 95% (Non-Condensing)


Parts List
Parts List - (Items Included)


Part Number

Qty

Description

Motherboard / Chassis MBD-X12QCH+

CSE-218HTS-R2K08P
1

1
Super X12QCH+ Motherboard

2U Chassis
Backplane BPN-NVME4-216N-S24 1 2U 24-slot all-hybrid direct-attached backplane, support 24x 2.5
Cable 1 CBL-PWEX-0925 3 2x4,P3.0 to 2x4,P4.2,YL/RED,9.5A,55cm,16AWG,RoHS
Cable 2 CBL-SAST-1048 1 SLIMLINE SAS x8 to SLIMLINE SAS x8, INT, 10CM,32AWG,85
Cable 3 CBL-SAST-1208LP-85 4 SlimlineLP x8 (STR) to SlimlineLP x8 (STR),8CM,85 OHM,Ro
Cable 4 CBL-SAST-1235-85 1 Slimline x8 (STR) to Slimline x8 (STR),INT,35CM,85 OHM
Cable 5 CBL-SAST-1286-100 2 Slimline x4 (STR) to Slimline x4 (STR),INT,85CM,100 OHM,
Drive Tray(s) MCP-220-00147-0B 8 Black gen-3 hot-swap 2.5"; Tool-less HDD tray (clip design)
Drive Tray(s) MCP-290-21301-0B 2 Black 2.5" HDD dummy cover for SC213,216 (Cover 8 HDD)
Air Shroud MCP-310-21812-0B 1 PSU air shroud for 218H,RoHS
Riser Card RSC-D2-668G4 1 2U LHS DCO Riser card with two PCI-E 4.0 x16 and one PCI-E
Riser Card RSC-D2R-668G4 1 2U RHS DCO Riser card with two PCI-E 4.0 x16 and one PCI-E
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0078PW 4 2U Passive Wide CPU Heatsink (92x113x65mm) for X12 ICX/CPX CPU, Heatpipe
*Power Supply PWS-2K08A-1R 2 1U 2000W 100-240VAC Titanium Ultra power supply 73.5x40x203mm
*Cable 6 CBL-CDAT-0676-66 1 [NR] FRONT CNTL,20 TO 20 PIN,PH0.5, FFC,FLAT,66CM,STD
*Cable 7 CBL-PWCD-0160-IS 2 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
*FAN 1 FAN-0217L4 4 80x80x38 mm, 16.5K RPM, Hot-swappable Cooling Fan for SC218H
*Rail Set MCP-290-00057-0N 1 Rail set, quick/quick, default for 4U 17.2“ W
*Rail Set MCP-290-00060-0N 1 Threaded rail adapter default for round hole rack
*Front Panel FPB-FP826-T 1 Chassis front control board for SC826
*Rail Set MCP-290-00115-0N 1 Inner rail, quick-release type
*Rail Set MCP-290-00117-0N 1 Outer rail, quick-release type
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
  Part Number Qty Description
2.5" NVMe Drive Trays MCP-220-00167-0B • 1 ~ 24 Tool-less black hot-swap 2.5" NVMe drive tray (Orange tab, w/ key lock, clip design)
2.5" SATA/SAS Drive Trays MCP-220-00147-0B • 8 or 16 Black gen-3 hot-swap 2.5" Tool-less HDD tray (clip design)
CacheVault(s) BKT-BBU-BRACKET-05 1 Supercap mounting bracket for PCI-E location
BTR-CVPM05 1 CacheVault for Broadcom RAID
BTR-CV3108-U1 - CacheVault for SMC 3108; Supercap mounted on chassis wall
Double Width GPU Kit SNK-P0077PW • 2 1U Heatsink for CPUs ≤ 165W
MCP-240-21828-0N 1 GPU Brackets (Set L+R)
GPU power cable CBL-PWEX-1040 • 1/GPU GPU,2x4M/CPU to two (2x3F+2x1F)/PCIe,P4.2, 5CM,16/20AWG, 10.5A/pin(16AWG), 8A/pin(20AWG), -25~85C,RoHS
CBL-PWEX-1042 • 1/GPU GPU, 2x4F/CPU to 2x4F/CPU, P4.2, 50CM, 16AWG, 10A/pin, -40~105C
Intel NVMe RAID Controller AOC-VROCPREMOD - Intel VROC Premium, RAID 0, 1, 5, 10
AOC-VROCSTNMOD - Intel VROC HW key (RSTe) standard upgrade module
Low Profile Riser Kit (Per side) CBL-SAST-1207LP-85 1 SlimlineLP x8 (STR,RSC) to Slimline x8 (STR),26CM,85 OH
CBL-SAST-1307LPR-85 2 SlimSAS x8 (STR) to SlimSASLP x8 (RA) ,37CM,85Ohm,RoHS
RSC-H2-68G4 1 Hyper riser card with one PCI-E 4.0 x16 and one PCI-E
MCP-240-21825-0N 1 Low profile riser bracket for SC218H
CBL-PWEX-1089-18 1 2x4,PH4.2 + 2x2pin,PH3.0 to 2x4,PH3.0,18/46CM,9A,16AWG
