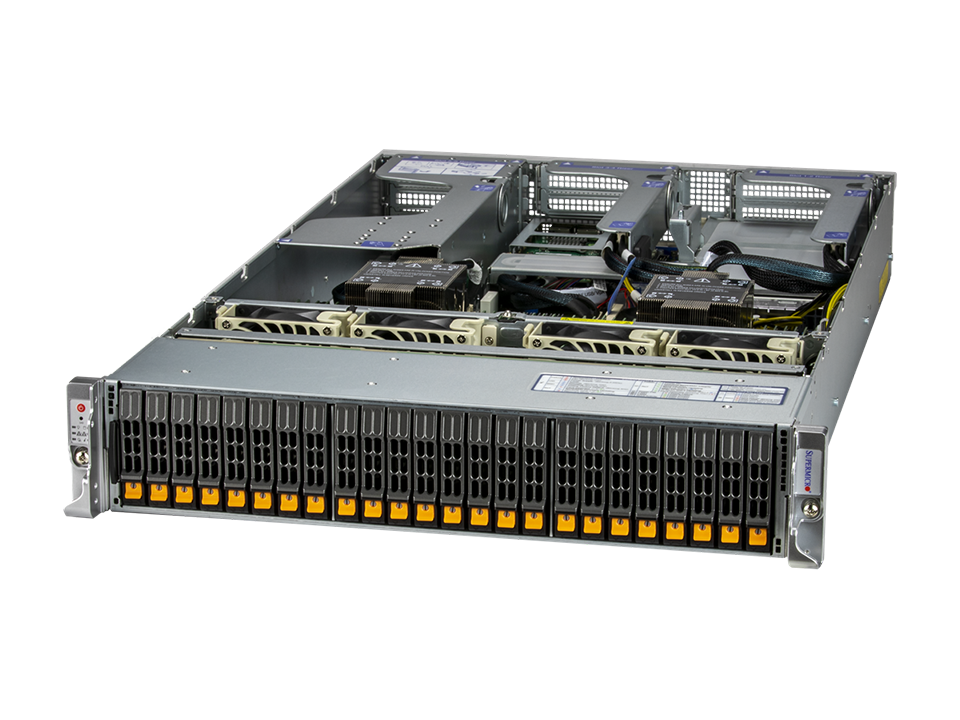

SYS-220H-TN24R

Key Applications
- Virtualization
- Software-defined Storage
- AI Inference and Machine Learning
- Cloud Computing
- Enterprise Server



Key Features

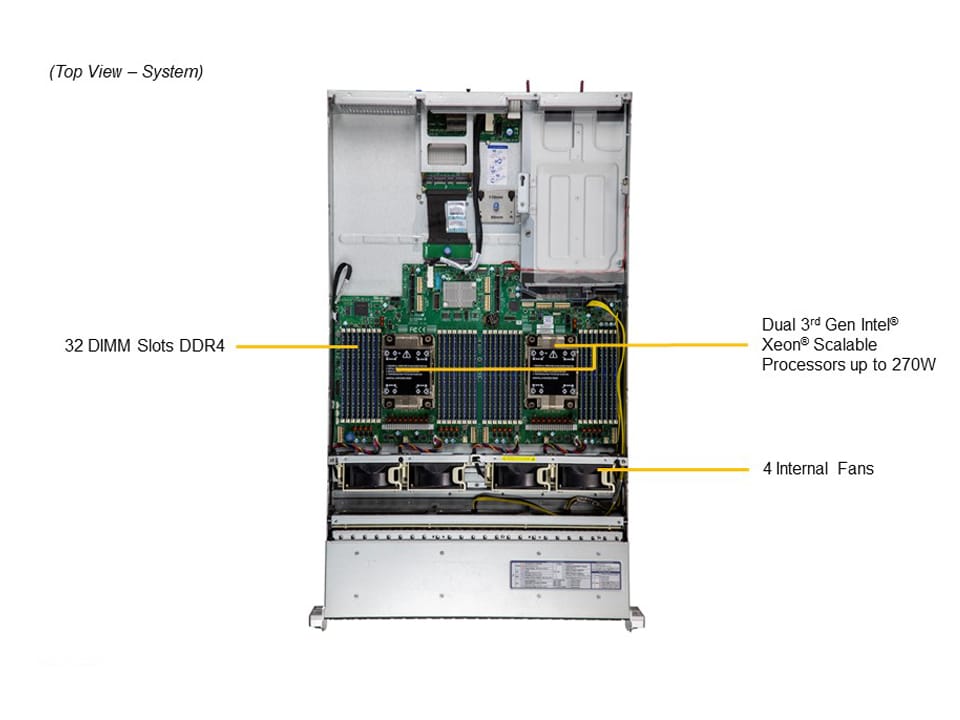

  1. Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
  2. 32 DIMM Slots;
    Up to 8TB DRAM;
    Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM);
    3200/2933/2666 ECC DDR4 LRDIMM;RDIMM;
    Intel® Optane™ Persistent Memory 200 series
  3. Optional PCI-E slot configurations up to 8 PCI-E 4.0 x8 or 4 PCI-E 4.0 x16 slots with support for double-width GPU/Accelerator cards
  4. Flexible networking options with up to 2 AIOM networking slots (OCP NIC 3.0 compatible)

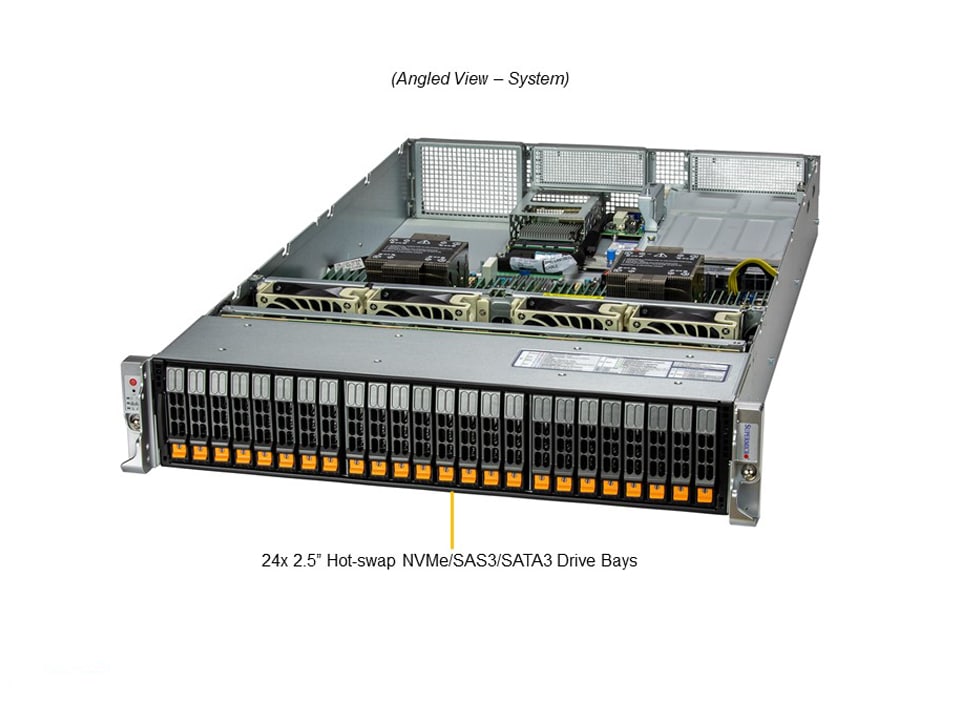

  5. 24x 2.5" hot-swap NVMe/SATA/SAS drive bays;
    2x internal M.2 NVMe/SATA drive slots;
    Optional RAID support via storage add-on card
  6. 4 heavy duty hot-swap fans with optimal fan speed control
Specifications
Product SKUs
SYS-220H-TN24R
  • SuperServer SYS-220H-TN24R

Motherboard


Super X12DHM-6

Processor
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
  • Support CPU TDP 270W
Cores
  • Up to 40C/80T; Up to 60MB Cache

System Memory
Memory
  • Memory Capacity: 32 DIMM slots
  • Up to 8TB: 32x 256 GB DRAM
  • Up to 12TB: 16x 512 GB PMem and 16x 256 GB DRAM
  • Memory Type: 3200MHz ECC DDR4
  • Intel® Optane™ persistent memory 200 series
Memory Voltage
  • 1.2 V
Error Detection
  • ECC

On-Board Devices
SATA
  • SATA3 (6Gbps); RAID 0/1/5/10 support
NVMe
  • NVMe; RAID 0/1/5/10 support (Intel® VROC RAID Key required)
Chipset
  • Intel® C621A
Network Connectivity
  • 2x 1GbE BaseT with Intel® i350-AM2 (optional)
  • 4x 1GbE SFP or 2x 10GbE BaseT with Intel® X550-AT2 (optional)
  • 2x 10GbE SFP+ with Intel® X710-BM2 (optional)
  • 4x 10GbE SFP+ with Intel® XL710-BM1 (optional)
  • 4x 10GbE RJ45/SFP+ with Intel® X710-TM4 (optional)
  • 2x 25GbE SFP28 with Broadcom® BCM57414 (optional)
  • 4x 25GbE RJ45/SFP28 with Mellanox® CX-4 Lx EN Intel® X550-AT2 (optional)
  • 2x 100GbE QSFP28 with Broadcom® BCM57508 (optional)
  • 4x 1GbE BaseT with Intel® i350-AM4 (optional)
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input / Output
LAN
  • 1 RJ45 Dedicated BMC LAN port
USB
  • 2 USB 3.0 port(s) (2 rear)
Video
  • 1 VGA port(s)

System BIOS
BIOS Type
  • AMI 256MB SPI Flash

Management
Software
  • Redfish API
  • IPMI 2.0
  • SSM
  • Intel® Node Manager
  • SPM
  • KVM with dedicated LAN
  • SUM
  • NMI
  • Watch Dog
  • SuperDoctor® 5
Power Configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management

PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-HS219-R1K63P

Dimensions and Weight
Height
  • 3.5" (88.9mm)
Width
  • 17.2" (436.88mm)
Depth
  • 29.9" (760mm)
Package
  • 9.96" (H) x 24.6" (W) x 45.43" (D)
Weight
  • Net Weight: 40 lbs (18.2 kg)
  • Gross Weight: 66 lbs (30 kg)
Available Color
  • N/A

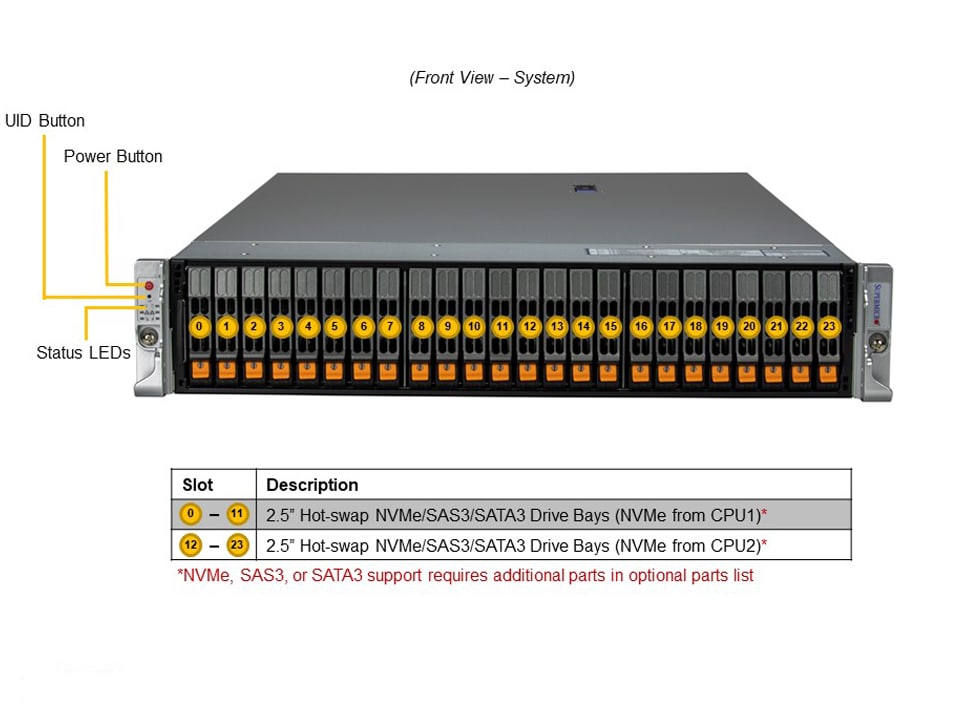

Front Panel
Buttons
  • Power On/Off
  • UID button
LEDs
  • HDD activity
  • LAN1 activity
  • Power status
  • System information

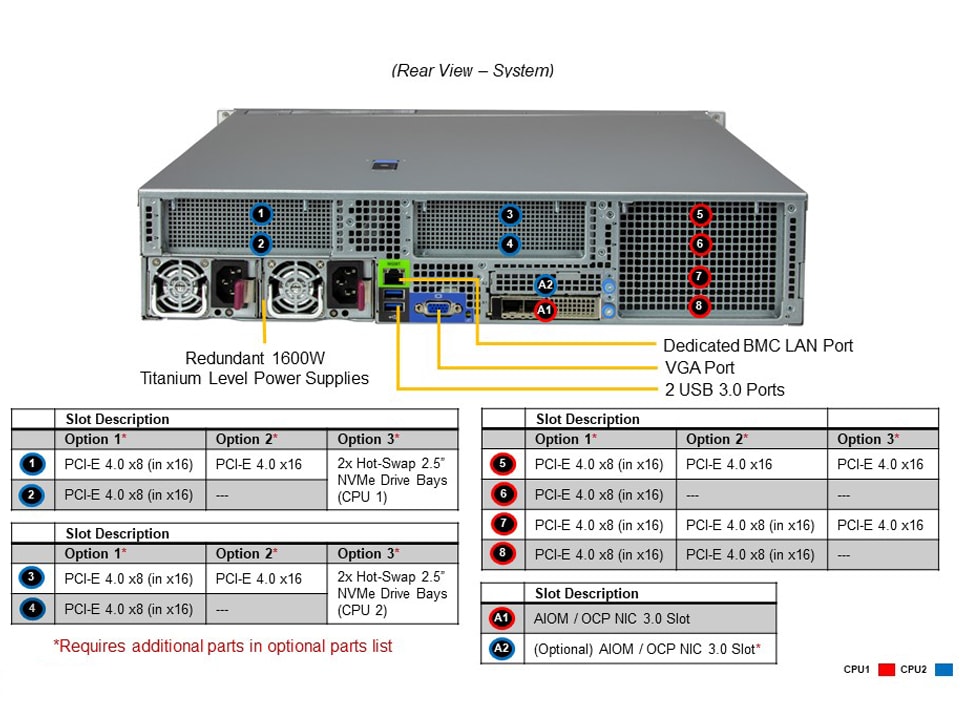

Expansion Slots
PCI-Express (PCI-E)
  • Slot 1: (Optional) PCI-E 4.0 x16 or x8 FH, 10.5"L
  • Slot 2: (Optional) PCI-E 4.0 x8 FH, 10.5"L
  • Slot 3: (Optional) PCI-E 4.0 x16 or x8 FH, 10.5"L
  • Slot 4: (Optional) PCI-E 4.0 x16 or x8 FH, 10.5"L
  • Slot 5: (Optional) PCI-E 4.0 x16 or x8 FH, 10.5"L
  • Slot 6: (Optional) PCI-E 4.0 x8 FH, 10.5"L
  • Slot 7: (Optional) PCI-E 4.0 x16 or x8 FH, 10.5"L
  • Slot 8: (Optional) PCI-E 4.0 x8 FH, 10.5"L
Note
  • For 16 NVMe configurations, PCI-E slots 3,4 and AIOM slot A2 cannot be used.
  • For 24 NVMe configurations, PCI-E slots 3,4,5,6,7,8 and AIOM slot A2 cannot be used.
  • For 8 NVMe configurations, AIOM slot A2 cannot be used.
  • If PCI-E slot 1 is configured as x16, PCI-E slot 2 is disabled; If PCI-E slot 3 is configured as x16, PCI-E slot 4 is disabled; If PCI-E slot 5 is configured as x16, PCI-E slot 6 is disabled; If PCI-E slot 7 is configured as x16, PCI-E slot 8 is disabled.

Drive Bays / Storage
Hot-swap
  • 24x 2.5" hot-swap NVMe/SATA/SAS drive bays (NVMe, SATA, or SAS support requires additional parts. Please see the Optional Parts list.)
M.2
  • 2 M.2 NVMe OR 2 M.2 SATA3

System Cooling
Fans
  • 4x 8cm heavy duty fans with optimal fan speed control
Air Shroud
  • 2 Air Shroud(s)

Power Supply
1600W Redundant Power Supplies with PMBus
Dimension

(W x H x L)
  • 73.5 x 40 x 265 mm
AC Input
  • 1000W: 100-127Vac / 12A-9A / 50-60Hz
  • 1600W: 200-240Vac / 9A-7.5A / 50-60Hz
+12V
  • Max: 83.3A / Min: 0A (100Vac-127Vac)
  • Max: 133.3A / Min: 0A (200Vac-220Vac)
12V SB
  • Max: 3.5A / Min: 0A
Output Type
  • 25 Pairs Gold Finger Connector
Certification   Titanium Level




  [ Test Report ]

Operating Environment
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)


Parts List
Parts List - (Items Included)


Part Number

Qty

Description

Motherboard / Chassis MBD-X12DHM-6

CSE-HS219-R1K63P
1

1
Super X12DHM-6 Motherboard

2U Chassis
Add-on Card / Module AOM-HS119-IO-P 1 Hyper IO Board,RoHS
Backplane BPN-NVME4-HS219N-S24 1 2U 24-slot 2.5" NVMe/SAS/SATA backplane for Hyper CSE-219 chassis, requires +12V only as power source, using 12x SlimSASx8 connectors for NVMe and 6x SlimSASx4 connectors for SAS/SATA.,RoHS
Cable 1 CBL-GNZ4-1261-85 1 GENZ4C x16 (STR) to GENZ4C x16 (STR),8CM,85 OHM,RoHS
Cable 2 CBL-PWEX-1142-40 1 MicroHi,(2x4 to 2x4),PH3.0,40CM,8A/pin,18AWG,RoHS
Cable 3 CBL-PWEX-1142-60 1 MicroHi,(2X4 to 2X4) P3.0,60CM,8A/pin,18AWG,RoHS
Cable 4 CBL-SAST-1225LP 1 SlimlineLP x8 (LE) to SlimlineLP x8 (RA),30CM,75/85/100,
Drive Tray(s) MCP-220-00196-0B 24 Metallic black gen-3 hot-swap 2.5 NVMe tool-less tray
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0078P 2 2U Passive CPU Heat Sink for X12 Generation Intel Whitley and Cedar Island Platforms
*Power Supply PWS-1K63A-1R 2 1U 1000W/1600W redundant single output power supply with inp
*Cable 5 CBL-CDAT-0676-66 1 [NR] FRONT CNTL,20 TO 20 PIN,PH0.5, FFC,FLAT,66CM,STD
*Cable 6 CBL-PWCD-0160-IS 2 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
*FAN 1 FAN-0223L4 4 80x80x38 mm, 13.5K RPM Exhaust Fan for 2U Hyper-S(HS219),RoH
*Front Panel FPB-FP826-T 1 Chassis front control board for SC826
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
  Part Number Qty Description
24 Drive Bay Configuration
(Select one from options A-H)
(F) 8 NVMe + 16 SAS/SATA:
CBL-KIT-220H-TN24R-8-1 &
AOC-S3816L-L16IT-O &
CBL-SAST-1276F-100 &
CBL-SAST-1264F-100
- 8 NVMe for drive bays 16-23 + 16 SAS/SATA (HBA/IT Mode) via Broadcom 3816 for drive bays 0-15
(E) 8 NVMe + 16 SAS/SATA (RAID):
CBL-KIT-220H-TN24R-8-1 &
AOC-S3916L-H16IR-32DD-O &
CBL-SAST-1276F-100 &
CBL-SAST-1264F-100
- 8 NVMe for drive bays 16-23 + 16 SAS/SATA (HW RAID) via Broadcom 3916 (RAID 0, 1, 5, 6, 10, 50, 60) for drive bays 0-15
(C) 16 NVMe + 8 SAS/SATA:
CBL-KIT-220H-TN24R-16-1 &
AOC-S3808L-L8IT-O &
CBL-SAST-1264F-100
- 16 NVMe for drive bays 8-23 + 8 SAS/SATA (HBA/IT Mode) via Broadcom 3808 for drive bays 0-7
(D) 16 NVMe + 8 SATA:
CBL-KIT-220H-TN24R-16-1 &
CBL-SAST-1258LP-100
- 16 NVMe for drive bays 8-23 + 8 SATA via onboard Intel® PCH for drive bays 0-7
(B) 16 NVMe + 8 SAS/SATA (RAID):
CBL-KIT-220H-TN24R-16-1 &
AOC-S3908L-H8IR-16DD-O &
CBL-SAST-1264F-100
- 16 NVMe for drive bays 8-23 + 8 SAS/SATA (HW RAID) via Broadcom 3908 (RAID 0, 1, 5, 6, 10, 50, 60) for drive bays 0-7
(A) 24 NVMe:
CBL-KIT-220H-TN24R-24-1
1 24 NVMe kit for drive bays 0-23
(H) 16 SAS/SATA + 8 SAS/SATA:
AOC-S3816L-L16IT-O &
CBL-SAST-1276F-100 &
CBL-SAST-1264F-100
AOC-S3808L-L8IT-O &
CBL-SAST-1296F-100
- 16 SAS/SATA (HBA/IT Mode) via Broadcom 3816 for drive bays 0-15 + 8 SAS/SATA (HBA/IT Mode) via Broadcom 3808 for drive bays 16-23
(G) 16 SAS/SATA (RAID) + 8 SAS/SATA (RAID):
AOC-S3916L-H16IR-32DD-O &
CBL-SAST-1276F-100 &
CBL-SAST-1264F-100
AOC-S3908L-H8IR-16DD-O &
CBL-SAST-1296F-100
- 16 SAS/SATA (HW RAID) via Broadcom 3916 (RAID 0, 1, 5, 6, 10, 50, 60) for drive bays 0-15 + 8 SAS/SATA (HW RAID) via Broadcom 3908 (RAID 0, 1, 5, 6, 10, 50, 60) for drive bays 16-23
2nd AIOM/OCP NIC 3.0 Slot MCP-450-21904-ASM 1 AIOM slot A2 kit for SYS-620H/220H
Drive Tray Label LBL-0968 - Pack of 4 "NVMe" labels for hot-swap drive tray
Global Services & Support OS4HR3/2/1 - Gold Level, 3/2/1-year onsite 24x7x4 SLA
SMSAD3/2/1 - Bronze Level, 3/2/1-year 3BD SLA
OSNBD3/2/1 - Silver Level, 3/2/1-year onsite NBD SLA
Intel® VROC RAID Key Options AOC-VROCPREMOD 1 Intel VROC Premium, RAID 0, 1, 5, 10
AOC-VROCSTNMOD 1 Intel VROC Standard, RAID 0, 1, 10
AOC-VROCINTMOD 1 Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only)
PCI-E Riser Card Kit for Rear Slots 1-2 MCP-450-21901-ASM 1 Slots 1-2 PCI-E riser card kit configurable for 2x PCI-E 4.0 x8 slots or 1x PCI-E 4.0 x16 slot
PCI-E Riser Card Kit for Rear Slots 3-4 MCP-450-21902-ASM 1 Slots 3-4 PCI-E riser card kit configurable for 2x PCI-E 4.0 x8 slots or 1x PCI-E 4.0 x16 slot
PCI-E Riser Card Kit for Rear Slots 5-8 MCP-450-21903-ASM 1 Slots 5-8 PCI-E riser card kit configurable for 4x PCI-E 4.0 x8 slots or 1x PCI-E 4.0 x16 slot + 2x PCI-E 4.0 x8 slots
Software SFT-DCMS-Single
DataCenter Management Package (per node license) consists of:
  • OOB Management package capabilities provided by SFT-OOB-LIC
  • Centralized Management Console licenses for health monitoring, power management and firmware upgrades
  • RESTful API support to integrate server management into existing management infrastructure (roadmap Q1’15)
  • Advanced Power Management licenses to manage power on heterogeneous server vendor products
  • Remote Software installation support
  • Remote debug assistance directly from product engineers

Software tools: SSM, SPM, SUM',ABOVE,ol_width=750,ol_border=1,ol_cellpad=6);">SFT-DCMS-Single
1 DataCenter Management Package (per node license)
Trusted Platform Module Options AOM-TPM-9670V-O 1 SPI capable vertical TPM 2.0
AOM-TPM-9670V-S-FIPS-O 1 AOM-TPM-9670V-S-FIPS TPM 2.0 support TAA and FIPS
AOM-TPM-9671V-O 1 SPI capable vertical TPM 1.2
