SYS-820GH-TNR2

Key Applications

  • Computer Vision
  • Natural Language Processing
  • Recommendation
  • Purpose Built for AI/Deep Learning Training

Key Features

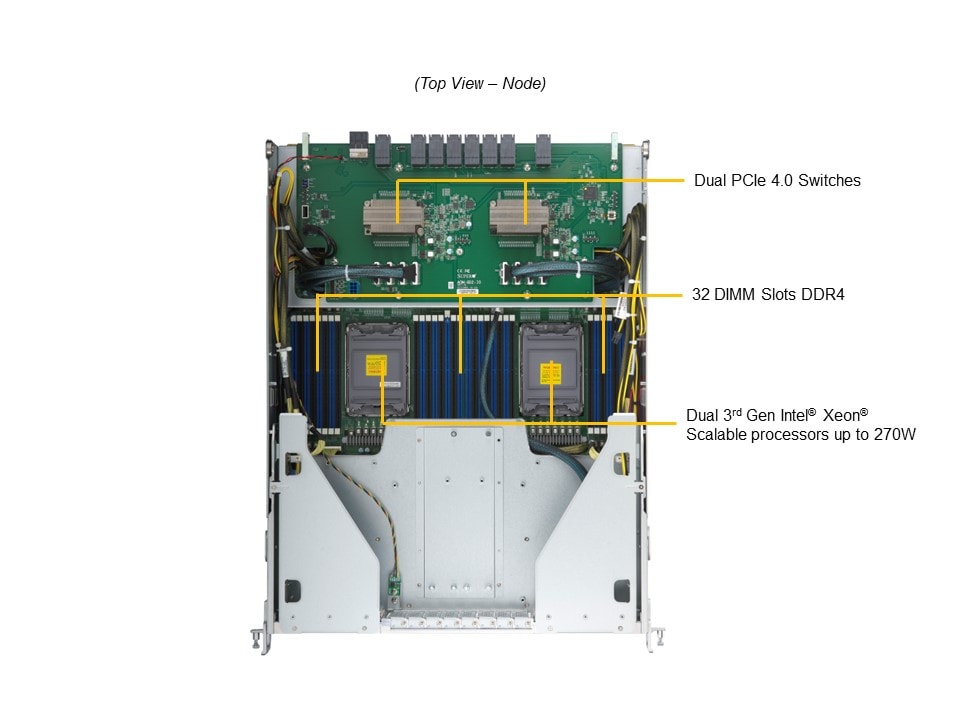

  1. Dual Intel® Xeon® 3rd Gen Scalable Processors (Ice Lake) TDP up to 270W
  2. Intel® C621A Chipset
  3. 32x DIMM slots, up to 8TB Registered ECC DDR4 3200MHz SDRAM
  4. 2x PCIe 4.0 x16 FHFL slot/2x PCIe 4.0 x8 FHFL slot
  5. 6x 400GbE QSFP-DD for scale-out and 1x 1GbE BaseT (dedicated IPMI port)

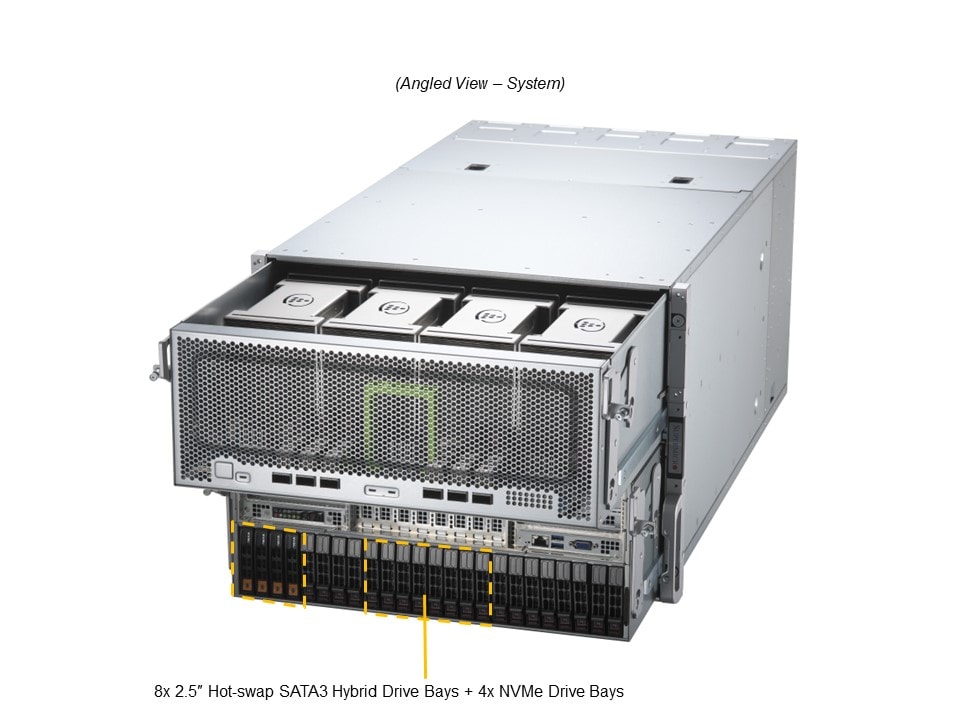

  6. 16x Extendable 2.5"SAS/SATA3 Hybrid Hot-Swap Bays (Additional Raid Card is required)
    4x 2.5"NVMe Hot-Swap Bays
    8x 2.5"SATA3 Hot-Swap Bays

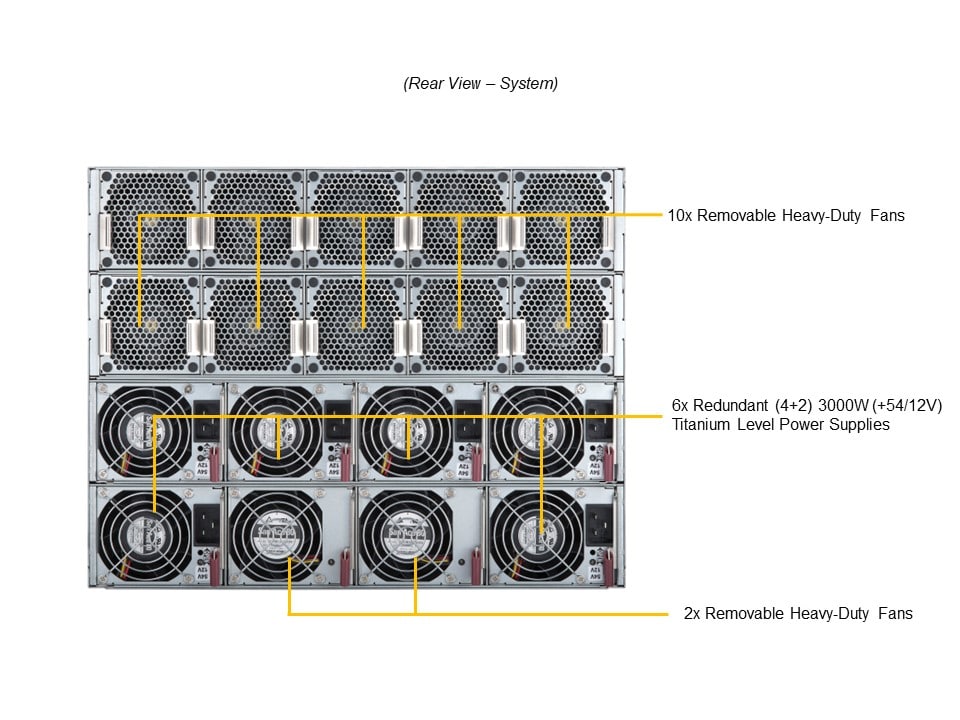

  7. 12x Removable Heavy-Duty Fan(s)
  8. 6x 3000W(54V+12V) Redundant Power Supplies, Titanium Level
Specifications
Product SKUs
SuperServer SYS-820GH-TNR2 (Silver)
Motherboard
Super X12DPG-OA6-GD2
Processor
CPU
  • Dual Socket P+ (LG-4189)
  • 3rd Gen Intel® Xeon® Scalable Processors
  • 3 UPI up to 11.2GT/s
  • Support CPU TDP 270W
Cores
  • Up to 40C/80T
System Memory
Memory
  • Memory Capacity: 32 DIMM slots
  • Up to 8TB: 32x 256 GB DRAM
  • Memory Type: 3200/2933/2666MHz ECC DDR4 RDIMM/LRDIMM
Memory Voltage
  • 1.2 V
Error Detection
  • ECC
On-Board Devices
Chipset
  • Intel® C621A
Network Connectivity
  • 6x 400GbE QSFP-DD
  • 1x 1GbE BaseT
  • Note: IPMI LAN port on CPU processor tray
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
USB
  • 2 USB 3.0 port(s) (2 USB 3.0)
Video
  • 1 VGA port(s)
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
  • OOB Management Package (SFT-OOB-LIC )
  • Redfish API
  • IPMI 2.0
  • SSM
  • Intel® Node Manager
  • SPM
  • KVM with dedicated LAN
  • SUM
  • NMI
  • Watch Dog
  • SuperDoctor® 5
Power Configurations
  • ACPI Power Management
  • Power-on mode for AC power recovery
PC Health Monitoring
CPU
  • 7+1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 8U Rackmount
Model
  • CSV-GP802TS-R000NP
Dimensions and Weight
Height
  • 14" (356mm)
Width
  • 17.6" (447mm)
Depth
  • 31.5" (800mm)
Package
  • 26.8" (H) x 40" (W) x 55.2" (D)
Weight
  • Gross Weight: 282 lbs (128 kg)
Available Color
  • Silver

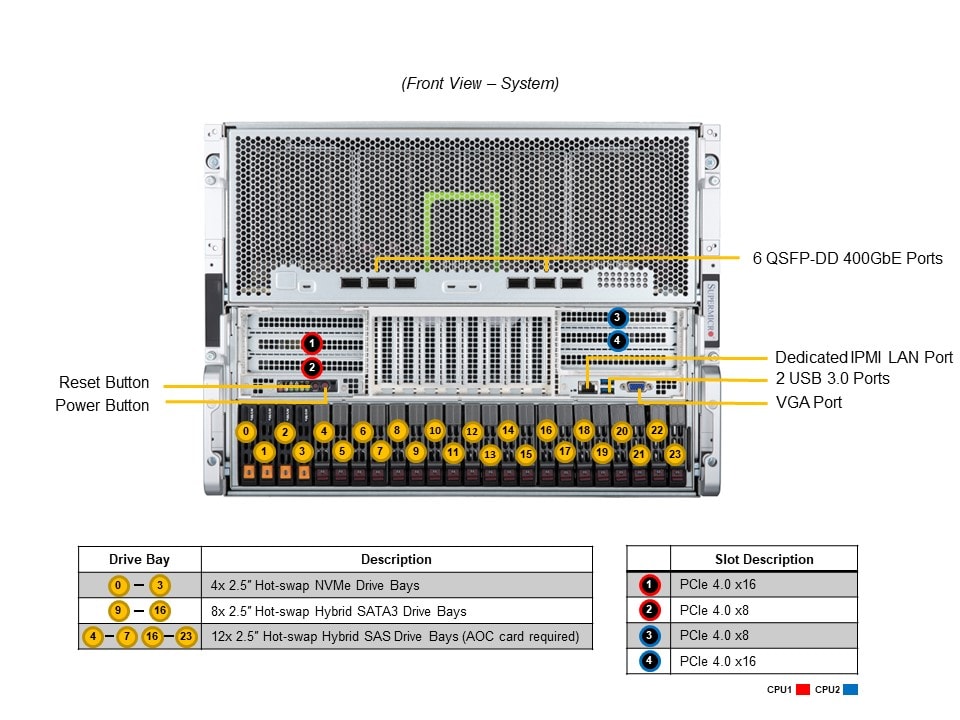

Front Panel
Buttons
  • Power On/Off button
  • Reset button
LEDs
  • HDD Information LED
  • Information LED
  • Power On LED
  • PSU Failed LED
Expansion Slots
PCI-Express (PCIe)
  • 2 PCIe 4.0 x16 FHFL slot(s)
  • 2 PCIe 4.0 x8 FHFL slot(s)
Drive Bays / Storage
Hot-swap
  • 24x 2.5" hot-swap NVMe/SATA/SAS drive bays (4x 2.5" NVMe hybrid)
M.2
  • 2 M.2 NVMe
System Cooling
Fans
  • 12 Removable Heavy-Duty 84x203.5x82.4mm Fan(s)
Power Supply
2U 3000W 54V+12V Output Redundant Power Supply Specification
Total Output Power
  • 3000W
Dimension

(W x H x L)
  • 106.5 x 82.4 x 203.5 mm
AC Input
  • 2880W: 200-207Vac / 15.7A-16A / 50-60Hz
  • 3000W: 207.1-240Vac / 14.5A-16A / 50-60Hz
DC Input
  • 3000W: 240Vdc / 15A Max
Output Type
  • Backplanes (gold finger)
Certification   Titanium Level




  [ Test Report ]
Operating Environment
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -30°C to 60°C (-22°F to 140°F)
  • Operating Relative Humidity:
       8% to 80% (non-condensing)
  • Non-operating Relative Humidity:
       8% to 90% (non-condensing)


Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-X12DPG-OA6-GD2

CSV-GP802TS-R000NP
1

1
Super X12DPG-OA6-GD2 Motherboard

8U Chassis
Add-on Card / Module AOM-618-FAN-1-P 2 Fan adaptor for CSE-618 chassis,RoHS
AOM-DSF-IO-P 1 All flash system IO module, VGA, RJ45 LAN, USB3.0, COM, UID,RoHS
AOM-GD2-IO-P 1 PCIe switch board for Intel Habana Gaudi 2 system,RoHS
AOM-GP801-IOF-P 1 IO board for Delta-Next GPU system, RoHS,RoHS
Backplane BPN-NVME4-216N-S24 1 2U 24-slot all-hybrid direct-attached backplane, support 24x 2.5
BPN-OAM2-GP802 1 Midplane for Habana 8U OAM Gaudi2 system (SYS-820GH-TNR2).,RoHS
BPN-PDB-GP802 2 Power distribution board (extension board) used in Habana Gaudi2 GPU system,RoHS
Cable CBL-CDAT-0728 1 4 Pin to 4 Pin I2C Cable, 65cm, 26AWG, 4 Wires, Pinout 1-1
CBL-CUSB-0712 1 2CH USB 2.0 10 Pin to 10 Pin Cable, 30cm. 24/26AWG
CBL-PWEX-0890Y-48 1 MnFt 2x4M/PH4.2 to 2 McHi 2x2M/PH3.0,48cm,9A/p,16AWG,RoH
CBL-PWEX-0890Y-60 1 MnFt 2x4M/PH4.2 to 2 McHi 2x2M/PH3.0,60cm,9A/p,16AWG,RoH
CBL-PWEX-0925 2 2x4,P3.0 to 2x4,P4.2,YL/RED,9.5A,55cm,16AWG,RoHS
CBL-PWEX-0929 1 2x4,PH4.2 to MicroFit,2x4,PH3,YL/RED,9.5A/pin,80CM,16AWG
CBL-SAST-1231-85 1 Slimline x8 (STR) to Slimline x8 (STR),INT,30CM, 85 OHM
CBL-SAST-1235X-85 8 SlimSAS (x8 to x8),STR,XMap,35cm,32#,85 Ohm,RoHS
CBL-SAST-1243L4R-85 2 SlimSAS x8/STR to SlimSAS LP x8/RA,43cm,32AWG,85Ohm,RoHS
CBL-SAST-1244-85 2 Slimline x8 (STR) to Slimline x8 (STR),45CM,85 OHM,RoHS
CBL-SAST-1266-100 2 Slimline x4 (STR) to Slimline x4 (STR) x4,INT 66CM,100
CBL-SAST-1324L4-85 2 SlimSAS ( x8/STR to LP x8/STR no lip),24cm,85Ohm,RoHS
CBL-SAST-1343L4-85 2 SlimSAS ( x8/STR to LP x8/STR no lip),43cm,85Ohm,RoHS
Power Supply PWS-3K02G-2R 6 2U 3000W, Titanium efficiency for GPU 54V(2430W)+12V(1100W)
PWS-DF009-1F 2 The Fan module Design for Habana project.
Riser Card RSC-H2-68G4 2 2U LHS Hyper riser card with one PCIe 4.0 x16 and one PCIe
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0080AP4 2 4U Active CPU Heat Sink for X12 Generation DP Workstations and 4U Servers
Optional Parts List
Part Number Qty Description
Intel® VROC RAID Key Options AOC-VROCINTMOD 1 Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only)
AOC-VROCPREMOD 1 Intel VROC Premium, RAID 0, 1, 5, 10
AOC-VROCSTNMOD 1 Intel VROC Standard, RAID 0, 1, 10
Network Card(s) AOC-MCX653106A-HDAT 1 Mellanox MCX653106A-HDAT ConnectX-6 VPI adapter card, HDR IB (200Gb/s) and 200GbE, dual-port QSFP56
AOC-STG-b2T 1 Standard LP 2-port 10Gbase-T, Broadcom 57416,HF,RoHS
AOC-S100GC-i2C 1 Standard PCIe 4.0x16 dual port 100GbE w/QSFP28
AOC-SGP-I4 1 Std LP 4-port GbE RJ45, Intel i350
AOC-S100G-m2C 1 Std LP 2-port 100G QSFP28,Mellanox ConnectX-4 EN
AOC-SGP-I2 1 Std LP 2-port GbE RJ45, Intel i350
AOC-S100G-b2C 1 Standard low-profile card based on Broadcom BCM57508
AOC-S25G-M2S-O 1 Std LP 2-port 25G SFP28, Mellanox ConnectX-4 L
AOC-S25G-B2S-O 1 Std LP 2-port 25G SFP28, Broadcom BCM57414
AOC-STGF-I2S-O 1 Std LP 2-port 10G SFP+, Intel X710
Storage Control Card and Cable(s) CBL-SAST-1276F-100 (2pcs for S3916L or S3816L) 2 Slimline x8 (LE) to 2x Slimline x4 (STR), FFC, 76/76CM, 100-Ohm
AOC-S3816L-L16iT 1 16 int 12Gb/s SAS3 ports,x8 Gen4, HBA - LP,122 HDD w/exp
AOC-S3916L-H16iR-32DD 1 16 int 12Gb/s ports, x8 Gen4, ROC - LP, 32HDDw/exp
TPM Security Module AOM-TPM-9670V 1 SPI capable vertical TPM 2.0 provisioned for client,RoHS
