SYS-111E-WR

Key Applications

  • Virtualization
  • Cloud Computing
  • Data Center Optimized
  • Database/Storage
  • Entry GPU server

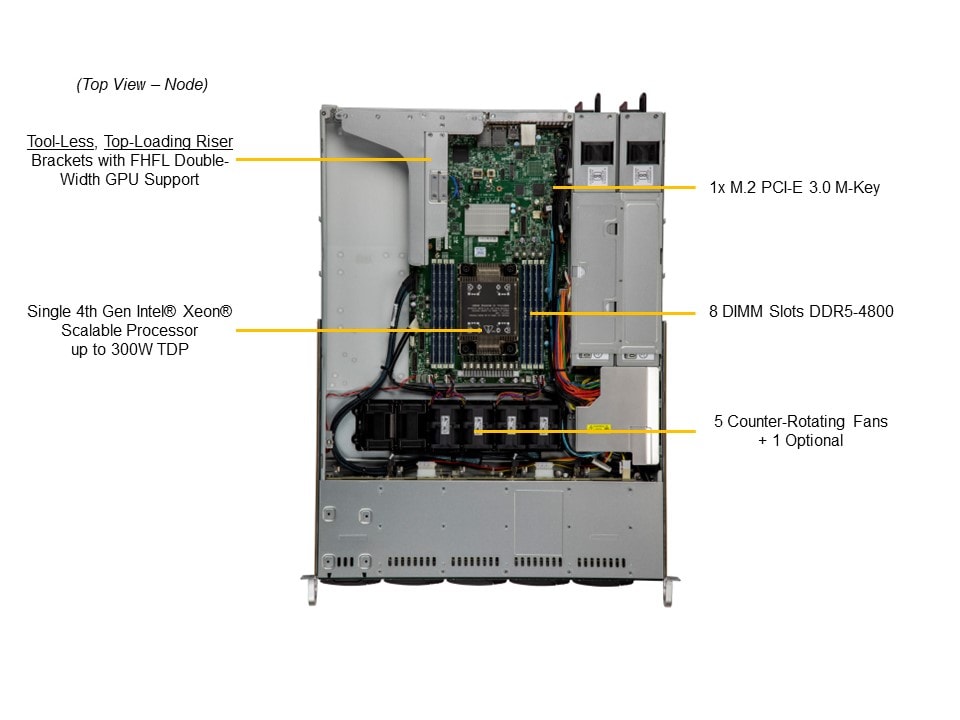

Key Features

  1. Single Socket E (LGA-4677) 4th Gen Intel® Xeon® Scalable processors. Up to 300W TDP
  2. Intel® C741 Chipset
  3. 8 DIMMs; Supports 3DS DDR5 RDIMM. Up to 4800 MT/s
  4. 2 PCIe 5.0 x16 FHFL;
    1 PCIe 5.0 x8(in x16) LP;
    1 PCIe 3.0 x2 NVMe M.2
  5. Onboard 1G LAN ports (Intel® i210), 1 dedicated IPMI LAN
  6. 10x front hot-swap 2.5" SATA3 drive bays (Optional all 10 hybrid Gen5 NVMe), SAS3 with additional SAS controller card
  7. Redundant Platinum 860W Power Supplies
Specifications
Product SKUs
SuperServer SYS-111E-WR (Black)
Motherboard
Super X13SEW-F
Processor
CPU
Cores
  • Up to 52C/104T; Up to 97.5MB Cache
Note
  • Supports up to 300W TDP CPUs (Aircooled)
System Memory
Memory
  • Memory Capacity: 8 DIMM slots
  • Up to 2TB: 8x 256 GB DRAM
  • Memory Type: 4800/4400MHz ECC DDR5 RDIMM
Memory Voltage
  • 1.1 V
Error Detection
  • Yes
On-Board Devices
SATA
  • SATA3 (6Gbps); RAID 0/1/5/10 support
NVMe
  • NVMe
Chipset
  • Intel® C741
Network Connectivity
  • 2x 1GbE BaseT with Intel® i210
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

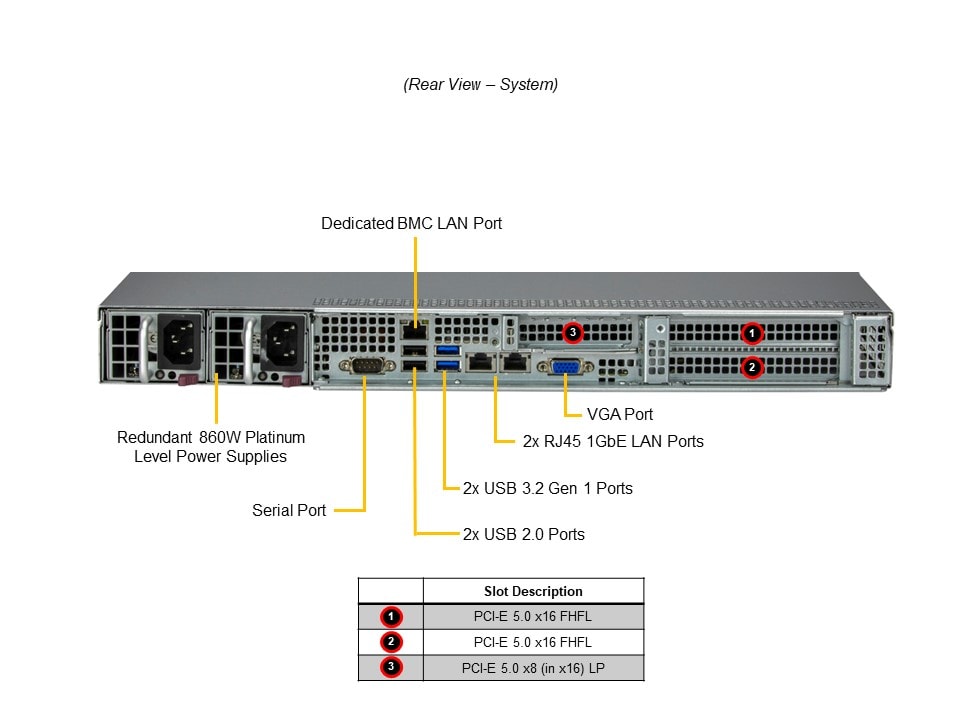

Input / Output
SATA
  • 8 SATA (6Gbps) port(s)
LAN
  • 1 RJ45 Dedicated IPMI LAN port
  • 2 RJ45 1GbE LAN ports
USB
  • 4 USB 3.2 Gen 1 port(s) (2 front; 2 rear)
  • 3 USB 2.0 port(s) (2 rear; 1 Type A)
Video
  • 1 VGA port(s)
Serial Port
  • 2 COM Port(s) (1 header; 1 rear)
DOM
  • 2 SuperDOM (Disk on Module) port with built-in power
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
Power Configurations
  • ACPI/APM Power Management
PC Health Monitoring
CPU
  • 8 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-116BTS-R860WP
Dimensions and Weight
Height
  • 1.7" (43mm)
Width
  • 17.2" (437mm)
Depth
  • 23.5" (597mm)
Package
  • 8" (H) x 24" (W) x 32" (D)
Weight
  • Net Weight: 25 lbs (11.34 kg)
  • Gross Weight: 38 lbs (17.24 kg)
Available Color
  • Black

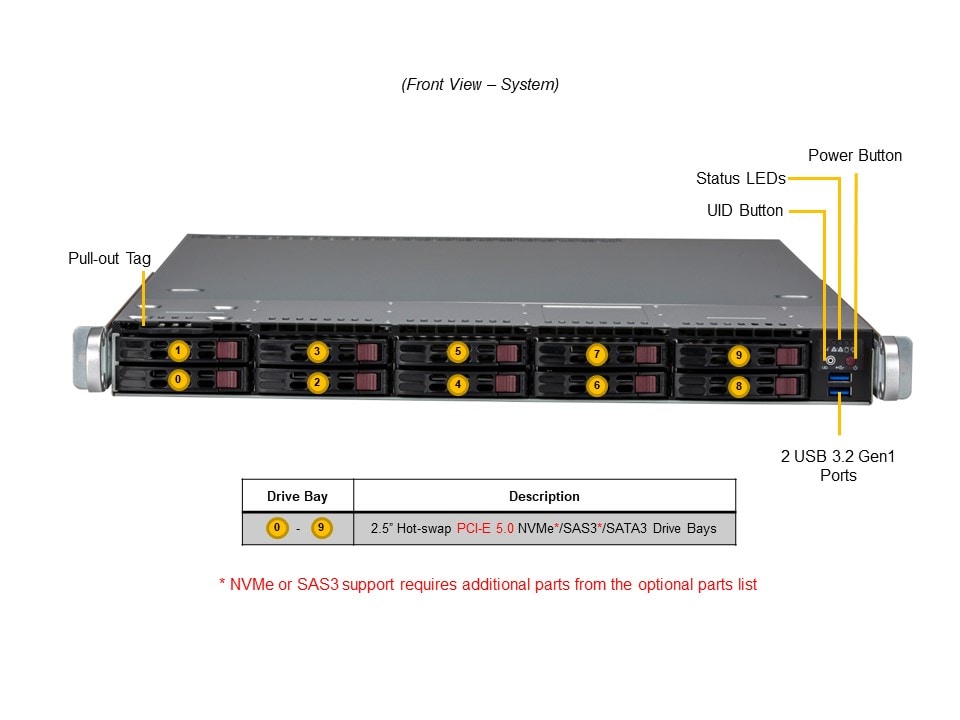

Front Panel
Buttons
  • Power On/Off
  • UID button
LEDs
  • Device Activity
  • LAN 1 Activity
  • LAN 2 Activity
  • Power status
  • System information
Expansion Slots
PCI-Express (PCIe)
  • 2 PCIe 5.0 x16 FHFL slot(s)
  • 1 PCIe 5.0 x8 (in x16) LP slot(s)
Note
  • Acronyms: (FH = Full Height, LP = Low Profile, FL = Full Length, HL = Half Length)

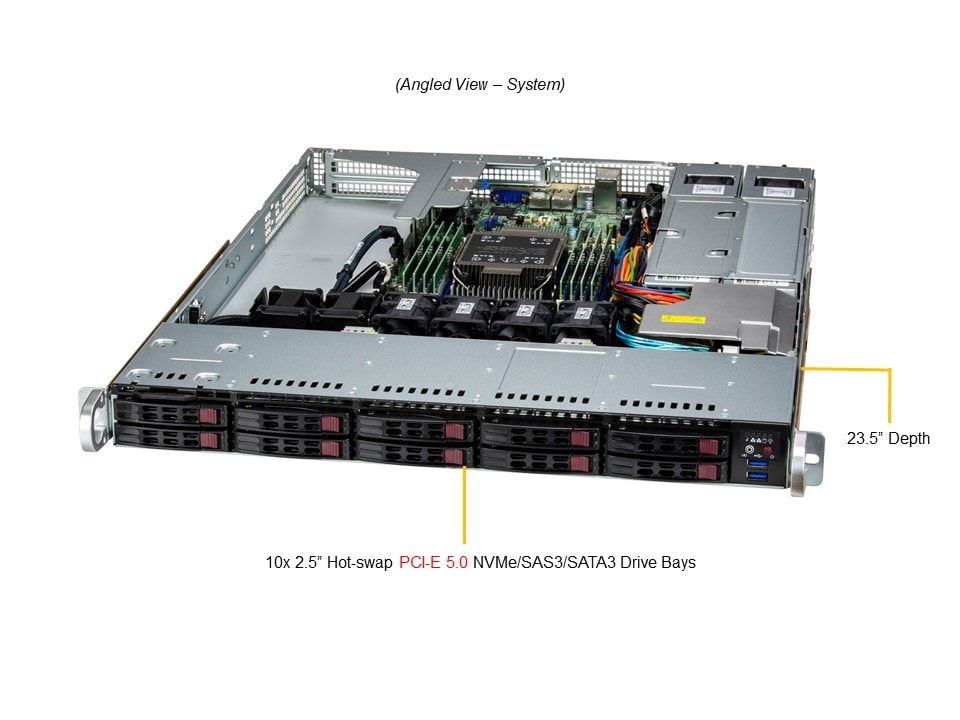

Drive Bays / Storage
Drive Bays
  • 10x 2.5" NVMe/SATA/SAS drive bays (10x 2.5" NVMe hybrid)
M.2
  • 1x PCIe 3.0 x 2
  • M-key, 2280, 22110
System Cooling
Fans
  • 1 AOC cooling Fan(s) (optional)
  • 5 middle cooling PWM 40x40x56mm Fan(s)
Power Supply
800W/860W 1U redundant power supply
Dimension

(W x H x L)
  • 54.5 x 40.25 x 322 mm
AC Input
  • 800W: 100-127Vac / 9A-7.5A / 50-60Hz
  • 860W: 200-240Vac / 6A-4.5A / 50-60Hz
+12V
  • Max: 66.6A / Min: 0A (100Vac-127Vac)
  • Max: 71.6A / Min: 0A (200Vac-240Vac)
5V SB
  • Max: 4A / Min: 0A
Output Type
  • Backplanes (gold finger)
Certification   Platinum Level




  [ Test Report ]
Operating Environment
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -30°C to 60°C (-22°F to 140°F)
  • Operating Relative Humidity:
       8% to 80% (non-condensing)
  • Non-operating Relative Humidity:
       8% to 90% (non-condensing)


Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-X13SEW-F

CSE-116BTS-R860WP
1

1
Super X13SEW-F Motherboard

1U Chassis
Backplane BPN-NVME5-LB16A-S10 1 1U 10-port backplane, 10x SAS3/SATA3/NVME5 for X13 CloudDC
Cable CBL-PWEX-1071 1 PWEX,2X4M/P4.2 TO 2X2F/P4.2 x2,BLK*4,YEL*4,15/30CM,16AWG,RoH
CBL-SAST-1234A-100 1 SlimSAS x4 (STR) to 4x SATA,65CM,100 OHM,RoHS
CBL-SAST-1261-100 1 Slimline x8 (STR) to 2x Slimline x4 (STR),60/60CM,100 O
Fan FAN-0163L4 1 40x40x56 mm, 23.3K-20.3K RPM, Counter-rotating Fan
Manual MNL-2490-QRG 1 111E-WR Quick Reference Guide
Riser Card RSC-W-66G5 1 1U LHS WIO Riser card with two PCIe 5.0 X16 slots,HF,R
RSC-WR-6G5 1 1U RHS WIO Riser card with one PCIe 5.0 X16 slot,HF,Ro
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0087P 1 1U Passive CPU HS for X13 Intel Eagle Stream Platform
*Power Supply PWS-860P-1R2 2 1U 860W, Redundant power supply, 54.5mm width, Platinum with
*Power Distributor PDB-PT116-SL8824 1 Based on PDB-PT116-L8824 to optimize 24Pin etc cable lengths
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
Part Number Qty Description
CacheVault BTR-CV3916-1U1 (For S3908/S3916) 1 SuperCap kit mounting in 1U 40x56 fan tray
BTR-CVPM05 + MCP-240-00203-0N (For S3908/S3916) 1 SuperCap mounting bracket for PCIe location
Cooling Fan FAN-0163L4 • 1 40x40x56 mm, 23.3K-20.3K RPM, Counter-rotating Fan
Front Bezel MCP-210-11601-0B 1 Black Front Bezel
Intel VROC RAID Key for NVMe AOC-VROCPREMOD 1 Premium Upgrade module (Intel + 3rd party Vendor SSD); RAID 0/1/10/5
AOC-VROCSTNMOD 1 Standard Upgrade module (Intel + 3rd party Vendor SSD); RAID 0/1/10
AOC-VROCINTMOD 1 Intel SSD Only Upgrade module; RAID 0/1/10/5
NVMe Cable (Drive Bay 0-1, 4-5) CBL-MCIO-1260M5 2 MCIO (x8 to x8) STR,60CM,85 OHM
NVMe Cable (Drive Bay 2-3, 6-9) CBL-MCIO-1227M5 3 MCIO (x8 to x8) STR,27CM,85 OHM
NVMe Drive Tray(s) MCP-220-00167-0B • 10 Tool-less Hot-swap Gen-3 NVMe drive tray, Orange tab, Black
Software SFT-DCMS-Single
DataCenter Management Package (per node license) consists of:
  • OOB Management package capabilities provided by SFT-OOB-LIC
  • Centralized Management Console licenses for health monitoring, power management and firmware upgrades
  • RESTful API support to integrate server management into existing management infrastructure (roadmap Q1’15)
  • Advanced Power Management licenses to manage power on heterogeneous server vendor products
  • Remote Software installation support
  • Remote debug assistance directly from product engineers

Software tools: SSM, SPM, SUM',ABOVE,ol_width=750,ol_border=1,ol_cellpad=6);">SFT-DCMS-Single
1 DataCenter Management Package (per node license)
Storage Control Card and Cable(s) AOC-S3916L-H16iR-32DD + 1x CBL-SAST-1265F-100 1 Standard LP, 16 internal ports (12Gb/s) PCIe 4.0 x8, 32HDD; RAID 0, 1, 5, 6, 10, 50, 60
AOC-S3908L-H8iR-16DD 1 Standard LP, 8 internal ports (12Gb/s) PCIe 4.0 x8, 16HDD; RAID 0, 1, 5, 6, 10, 50, 60
Storage Control Card and Cable(s) (HBA) AOC-S3816L-L16IT + 1x CBL-SAST-1265F-100 1 Standard LP, 16 internal ports (12Gb/s) PCIe 4.0 x8, 122HDD; HBA
AOC-S3808L-L8IT 1 Standard LP, 8 internal ports (12Gb/s) PCIe 4.0 x8, 122HDD; HBA
TPM AOM-TPM-9670V-S-O 1 TPM 2.0, vertical form factor, provisioned for server
