SYS-121C-TN2R

Key Applications

  • Web Server, Firewall Application
  • Data Center Optimized, Value IaaS
  • Cloud Computing, Compact Server
  • DNS & Gateway Servers, Firewall Application
  • CDN, Edge Nodes

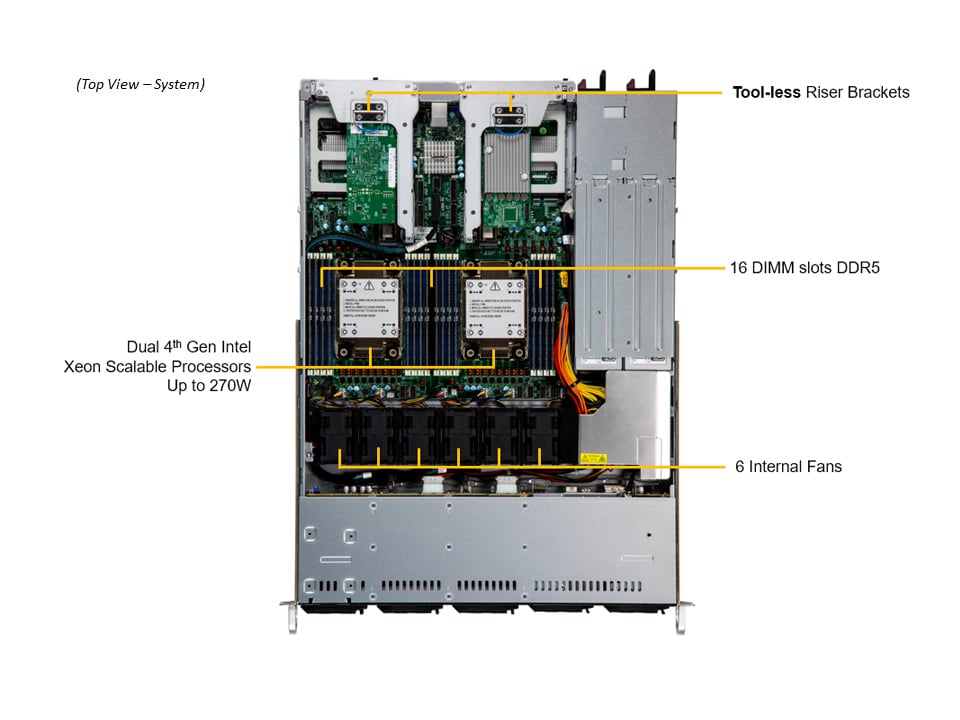

Key Features

  1. Dual sockets E (LGA-4677) 4rd Gen Intel® Xeon® Scalable processors
  2. 16 DIMMs up to 4TB 3DS ECC DDR5-4800: RDIMM
  3. 2 PCIe 5.0 x16 FHHL;
    2 PCIe 5.0 x16 AIOM (OCP 3.0);
    2 PCIe 5.0 x4 NVMe M.2
  4. Dual AIOM with NCSI (OCP 3.0) for networking, 1 dedicated IPMI LAN
  5. 8x 2.5" hot-swap SATA/SAS w/ 2x hybrid NVME drive bays
  6. 1 VGA, 1 COM, 2 USB 3.0 (rear)
Specifications
Product SKUs
SuperServer SYS-121C-TN2R (Black front & sliver body)
Motherboard
Super X13DDW-A
Processor
CPU
Note
  • Supports up to 270W TDP CPUs (Aircooled)
System Memory
Memory
  • Memory Capacity: 16 DIMM slots
  • Up to 4TB: 16x 256 GB DRAM
  • Memory Type: 4800MHz ECC DDR5 RDIMM
Memory Voltage
  • 1.1 V
Error Detection
  • ECC
On-Board Devices
SATA
  • SATA3 (6Gbps); RAID 0/1/5/10 support
NVMe
  • NVMe
Chipset
  • Intel® C741
Network Connectivity
  • with Advanced IO Module, AIOM (OCP 3.0 NIC, refer to AIOM Network Card(s) under Optional Parts List for options)
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Note
  • High TDP 200-400G NICs have support conditions due to thermal requirements.

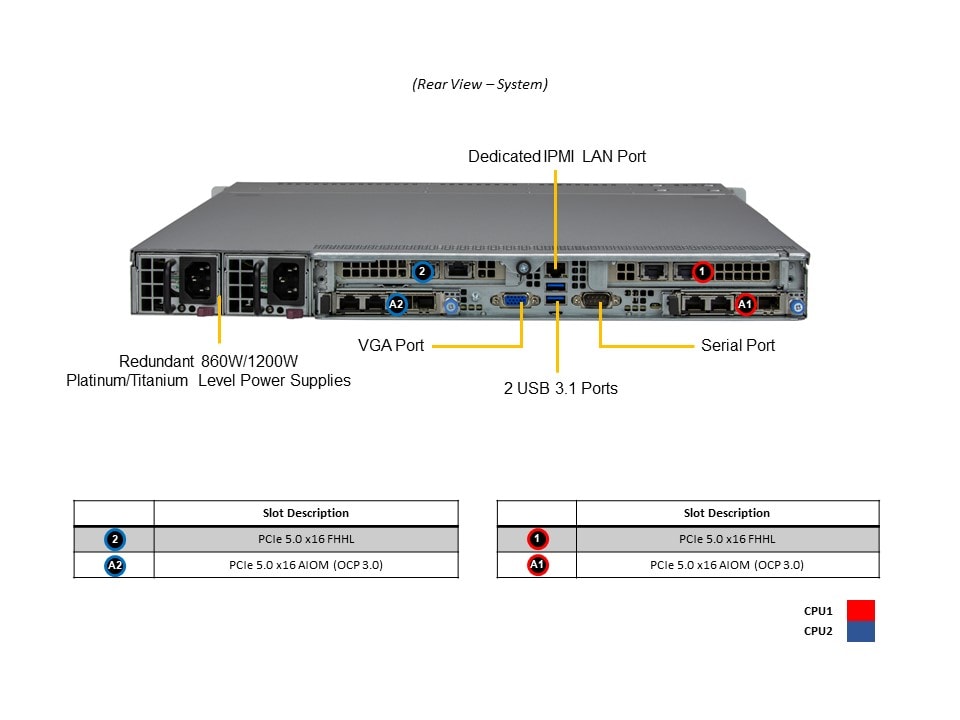

Input / Output
LAN
  • 1 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 port(s) (2 rear)
Video
  • 1 VGA port(s)
Serial Port
  • 1 COM Port(s) (1 rear)
System BIOS
BIOS Type
  • AMI 32MB SPI FLASH ROM
Management
Software
  • SCC
  • Redfish API
  • IPMI 2.0
  • SSM
  • Intel® Node Manager
  • SPM
  • KVM with dedicated LAN
  • SUM
  • NMI
  • Watch Dog
  • SuperDoctor® 5
Power Configurations
  • ACPI/APM Power Management
PC Health Monitoring
CPU
  • 4+1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory.
FAN
  • Fans with tachometer monitorin
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-LB13AC2-R860AW2
Dimensions and Weight
Height
  • 1.7" (43mm)
Width
  • 17.2" (437mm)
Depth
  • 23.5" (597mm)
Package
  • 7.8" (H) x 23.8" (W) x 32.4" (D)
Weight
  • Net Weight: 25 lbs (11.3 kg)
  • Gross Weight: 40 lbs (18.1 kg)
Available Color
  • Black front & sliver body

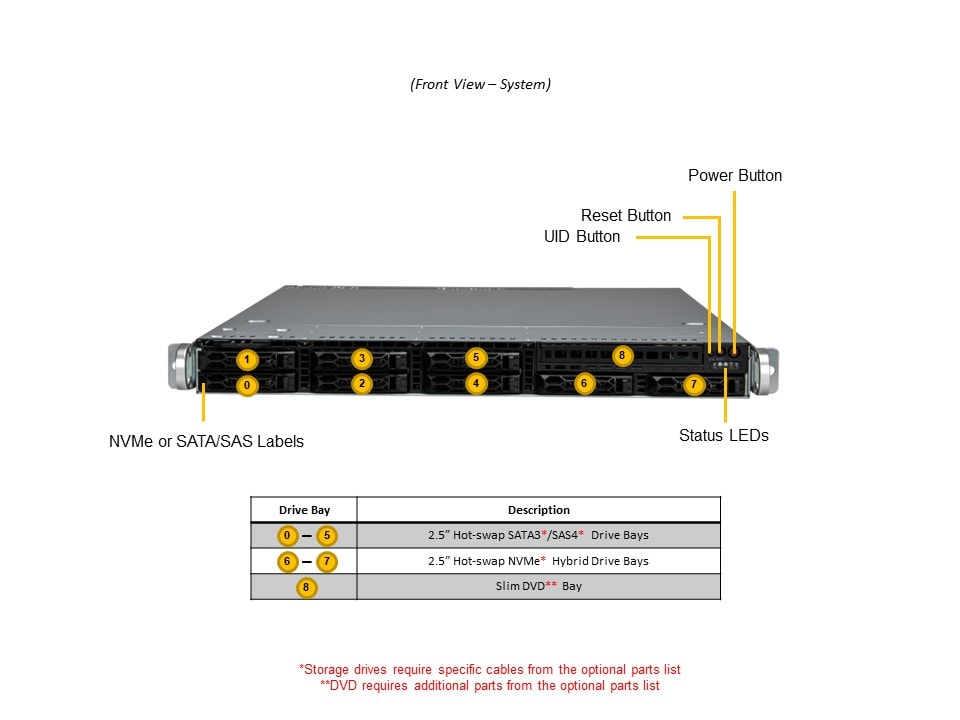

Front Panel
Buttons
  • Power On/Off
  • Reset button
  • Universal Information (UID)
LEDs
  • Drive activity
  • Network activity
  • Power status
  • Universal Information (UID)
Expansion Slots
PCI-Express (PCIe)
  • 2 PCIe 5.0 x16 FHHL slot(s)

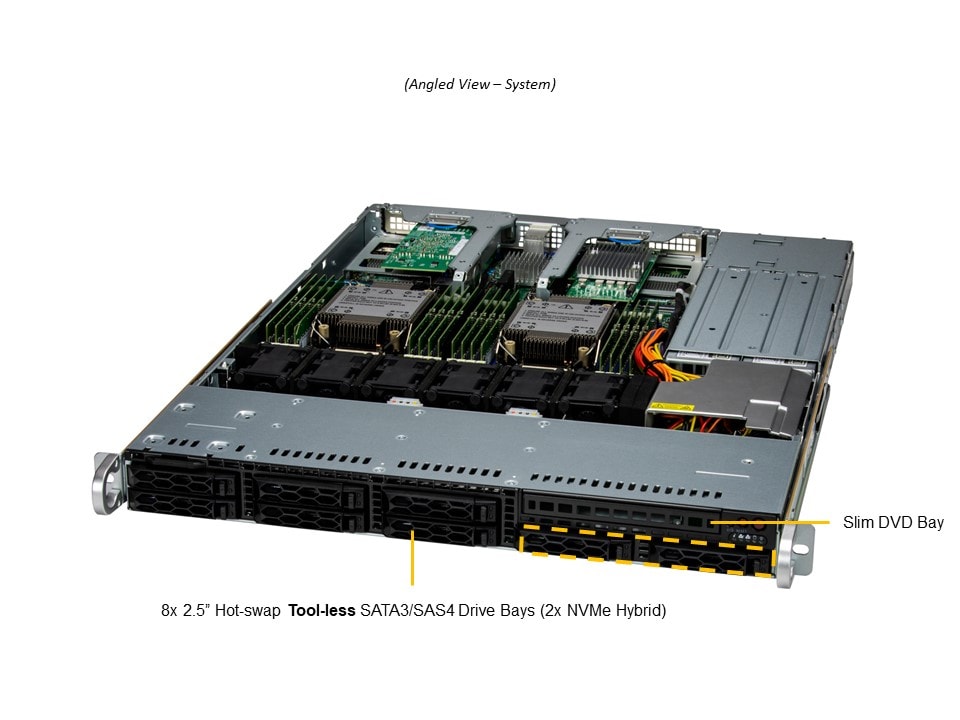

Drive Bays / Storage
Hot-swap
  • 8x 2.5" hot-swap NVMe/SATA/SAS drive bays (2x 2.5" NVMe hybrid) (Storage drives require additional cables from the optional parts list.)

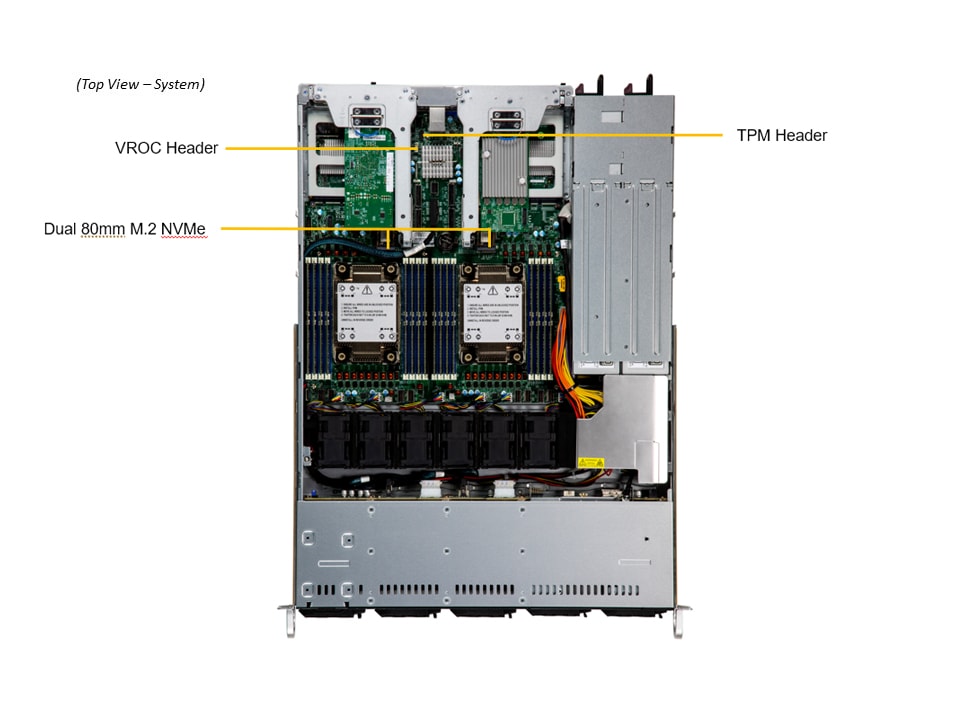

M.2
  • 2 M.2 NVMe
  • M-Key, 2280
Peripheral Bays
  • 1 DVD-ROM drive bays (optional)
System Cooling
Fans
  • 6x 4cm heavy duty fans with optimal fan speed control
Air Shroud
  • 2 Air Shroud(s)
Power Supply
800W/860W 1U redundant power supply
Dimension

(W x H x L)
  • 54.5 x 40.25 x 322 mm
AC Input
  • 800W: 100-127Vac / 9A-7.5A / 50-60Hz
  • 860W: 200-240Vac / 6A-4.5A / 50-60Hz
+12V
  • Max: 66.6A / Min: 0A (100Vac-127Vac)
  • Max: 71.6A / Min: 0A (200Vac-240Vac)
5V SB
  • Max: 4A / Min: 0A
Output Type
  • Backplanes (gold finger)
Certification   Platinum Level




  [ Test Report ]
Operating Environment
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)


Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-X13DDW-A

CSE-LB13AC2-R860AW2
1

1
Super X13DDW-A Motherboard

1U Chassis
Backplane BPN-SAS4-LB13A-N2 1 1U 8-Slot 2.5
Fan FAN-0163L4 2 40x40x56 mm, 23.3K-20.3K RPM, Counter-rotating Fan
FAN-0163L4 4 40x40x56 mm, 23.3K-20.3K RPM, Counter-rotating Fan
Parts MCP-150-00015-0B 4 Rubber pad, 3.0mm H, 10x10mm
MCP-160-00028-0B 1 Mylar Cable Channel for Cloud-DC, X12 DDW
MCP-320-00067-0B 1 Chassis base Air Foam block set (L+R) for Cloud-DC
Front Panel MCP-280-00033-0N 1 Universal Thermal sensor kit with 80cm I2C cable
FPB-FP112 1 Front control board for SC113,113M (U/C share
Air Shroud MCP-310-00105-0B 2 Mylar Air Shroud for LA15-AW,LB13-AW,LB16-AW + X12DDW
Riser Card RSC-D-6G5 1 1U LHS DCO Riser card with one PIC-E 5.0 X16 slot,HF,RoH
RSC-DR-6G5 1 1U RHS DCO Riser card with one PCIe 5.0 X16 slot,HF,Ro
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0087P 2 1U Passive CPU HS for X13 Intel Eagle Stream Platform
*Power Supply PWS-860P-1R2 2 1U 860W, Redundant power supply, 54.5mm width, Platinum with
MCP-250-00009-0N 1 SC113 Redundant Power Distributor Cover
*Power Distributor PDB-PT116-SL8824 1 Based on PDB-PT116-L8824 to optimize 24Pin etc cable lengths
*Cable CBL-CDAT-0680-55 1 NCSI,2x10F to 2x10F,IDC,PH2.54,55cm,shield,28AWG,RoHS
CBL-PWCD-0160-IS 2 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
*Drive Tray(s) MCP-220-00188-0B 8 Black gen-5.5 tool-less cost-effective 2.5
*Rear Window MCP-240-00173-0N 1 1U X12 AWIO Rear window for LA15,LB16,LB13 Redundant PWS
*Rail Set MCP-290-00016-0N 1 1U open rack bracket set for CSE-PT51L,MCP-290-00054-0N
MCP-290-00063-0N 1set Rail set, quick/quick, default for 1U 17.2"W for SC113/SC116,RoHS/REACH
*Fan Holder MCP-320-00056-0B 24 40X56 rubber fan pin for SC819U, SC119U,RoHS/REACH
MCP-320-00066-0B 1 Fan holder with cable channel, 40X56mm fan, for LA15,LB16,LB13
MCP-340-00035-0B 2 Dummy fan 40x56mm for 40x56 counter-rotating fan (cost-effective)
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
Part Number Qty Description
3108/3908/3916 SuperCap Mount MCP-240-21747-0N 1 SuperCap mounting card for AIOM location
MCP-240-00127-0N 1 SuperCap mounting tray for 2.5" drive location
MCP-240-00203-0N 1 SuperCap mounting bracket for PCIe location
3808 HBA Card CBL-SAST-1276F-100 1 Slimline x8 (LE) to 2x Slimline x4 (STR),76/76CM
Alternative: CBL-SAST-1264F-100 (64 CM)
AOC-S3808L-L8IT 1 Standard LP, 8 internal ports (12Gb/s) Gen-4, 16HDD; HBA;
3908 RAID Card AOC-S3908L-H8IR-16DD 1 Standard LP, 8 internal ports (12Gb/s) Gen-4, 122HDD; RAID 0, 1, 5, 6, 10, 50, 60;
CBL-SAST-1276F-100 1 Slimline x8 (LE) to 2x Slimline x4 (STR),76/76CM
Alternative: CBL-SAST-1264F-100 (64 CM)
3908/3916 CacheVault BTR-CVPM05 1 CacheVault for Broadcom 3908/3916 (requires a SuperCap mount)
Add-on card for additional M.2 AOC-SLG3-2SM2 - Low Profile PCIe x8 add-on card supports 2 PCIe 3.0 x4 M-Key M.2 SATA Modules; RAID 0,1
AOC-SLG4-2H8M2 - Low Profile PCIe x8 add-on card supports 2 PCIe 4.0 x4 M-Key M.2 NVMe/SATA Modules; RAID 0,1
AIOM Network Card(s) AOC-AG-i4M - OCP 3.0 AIOM NIC, 4x 1GbE RJ45, PCIe 2.1 x4, Intel® i350-AM4
AOC-ATG-i4SM - OCP 3.0 AIOM NIC, 4x 10GbE SFP+, PCIe 3.0 x8, Intel® XL710-BM1
AOC-AG-i2M - OCP 3.0 AIOM NIC, 2x 1GbE RJ45, PCIe 2.1 x4, Intel® i350-AM2
AOC-AH25G-m2S2TM - OCP 3.0 AIOM NIC, 2x 25GbE SFP28 & 2x 10GbE RJ45, PCIe x8/x4, Mellanox® CX4 Lx EN & Intel® X550-AT2
(Add 1x MCP-310-00107-0B per card to support this NIC)
AOC-ATG-i2TM - OCP 3.0 AIOM NIC, 2x 10GbE RJ45, PCIe 3.0 x4, Intel® X550-AT2
AOC-A25G-m2SM - OCP 3.0 AIOM NIC, 2x 25GbE SFP28, PCIe x8, Mellanox® CX-6 LX
AOC-ATG-i2T2SM - OCP 3.0 AIOM NIC, 4x 10GbE RJ45 & SFP+, PCIe x8, Intel® X710-TM4
AOC-A25G-b2SM - OCP 3.0 AIOM NIC, 2x 25GbE SFP28, PCIe x8, Broadcom® BCM57414
AOC-ATG-i2SM - OCP 3.0 AIOM NIC, 2x 10GbE SFP+, PCIe 3.0 x8, Intel® X710-BM2
AOC-A100G-m2CM - OCP 3.0 AIOM NIC, 2x 100GbE QSFP28, PCIe 4.0 x16, Mellanox® CX-6 DX
AOC-ATGC-i2TM - OCP 3.0 AIOM NIC, 2x 10GbE RJ45, PCIe 3.0 x4, Intel X710-AT2
AOC-A100G-b2CM - OCP 3.0 AIOM NIC, 2x 100GbE QSFP28, PCIe 4.0 x16, Broadcom® BCM57508
AOC-A25G-i2SM - OCP 3.0 AIOM NIC, 2x 25GbE SFP28, PCIe x8,Intel E810-XXVAM2
AOC-AG-i4SM - OCP 3.0 AIOM NIC, 4x 1GbE SFP, PCIe 2.1 x4, Intel® i350-AM4
Cable Management Arm MCP-290-00152-0N • 1 1U Supermicro Cable Management Arm 2nd Gen
DVD Reader CBL-0161L 1 15 cm power Y-split to 2x small 4-pins
MCP-220-81502-0N • 1 Slim SATA DVD mounting kit. Add 1 per DVD
CBL-0234L • 1 Big-4-pin M Y-split to two Big-4-pin F
DVM-TEAC-DVDRW-SBT5 1 BLACK TEAC SLIM DVD-RW SATA DRIVE
Front USB Kit MCP-220-00087-0B • 1 Black USB tray for slim DVD bay
Intel VROC Key AOC-VROCSTNMOD 1 Intel VROC Standard, RAID 0, 1, 10
AOC-VROCPREMOD 1 Intel VROC Premium, RAID 0, 1, 5, 10
AOC-VROCINTMOD 1 Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only)
NC-SI Cable CBL-PWEX-1099-34 1 FLAT,IDC 2X11F/P1.27 TO IDC 2X11F/P1.27,NCSI,0.5A,35CM
NVMe Cables CBL-MCIO-1235M5Y 1 MCIO x8 STR to MCIO 2 x4 STR,35CM
Power Supply Upgrade PWS-1K27A-1R • 2 1000W/1200W 1U 54.5Wx322Lx40H mm redundant Titanium
SATA Cables CBL-SAST-1274LP-100 1 SlimlineLP x8 (LE) to 2x Slimline x4 (STR),68/76CM
Software SFT-SDDC-SINGLE 1 Supermicro Data Center Monitor License
SFT-DCMS-Single
DataCenter Management Package (per node license) consists of:
  • OOB Management package capabilities provided by SFT-OOB-LIC
  • Centralized Management Console licenses for health monitoring, power management and firmware upgrades
  • RESTful API support to integrate server management into existing management infrastructure (roadmap Q1’15)
  • Advanced Power Management licenses to manage power on heterogeneous server vendor products
  • Remote Software installation support
  • Remote debug assistance directly from product engineers

Software tools: SSM, SPM, SUM',ABOVE,ol_width=750,ol_border=1,ol_cellpad=6);">SFT-DCMS-Single
1 Supermicro System Managment Software License
TPM security module AOM-TPM-9670V 1 SPI capable TPM 2.0 with Infineon 9670 controller; vertical form factor
AOM-TPM-9672V-FIPS 1 SPI capable TPM 2.0 with Infineon 9672 controller w/ FIPS; vertical form factor
AOM-TPM-9670V-S-FIPS 1 SPI capable TPM 2.0 with Infineon 9670 controller w/ FIPS; vertical form factor
AOM-TPM-9672V 1 SPI capable TPM 2.0 with Infineon 9672 controller; vertical form factor
