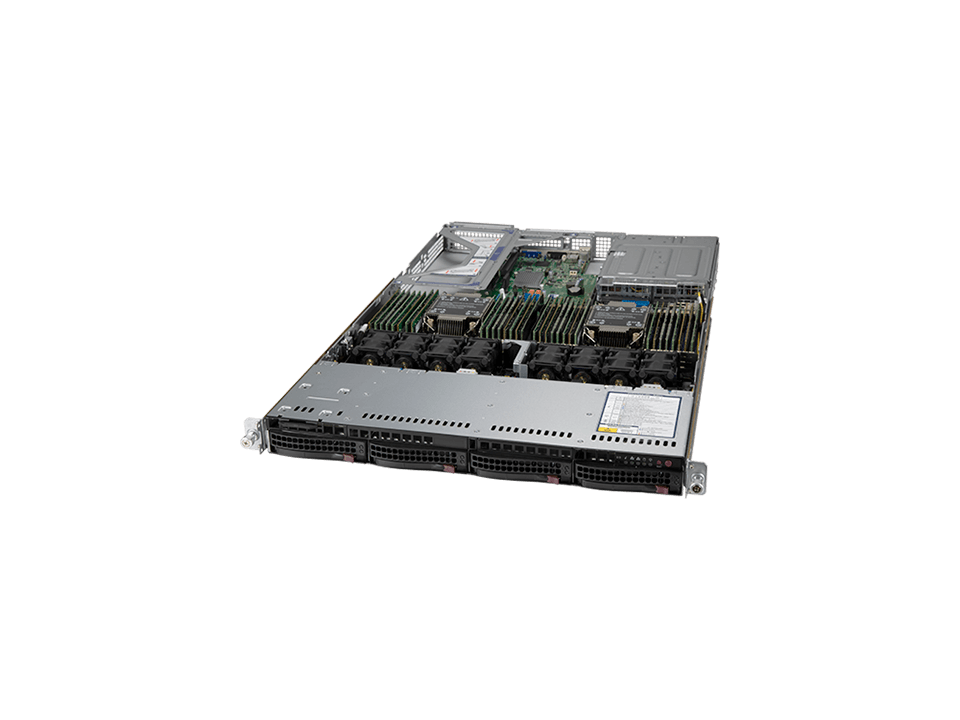

SYS-610U-TNR

Key Applications
- Virtualization
- HPC
- Cloud Computing
- High End Enterprise Server
- Software Defined Storage
- Application Tier Service Provider
- 5G/Telco



Key Features

  1. Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
  2. Intel® C621A Chipset

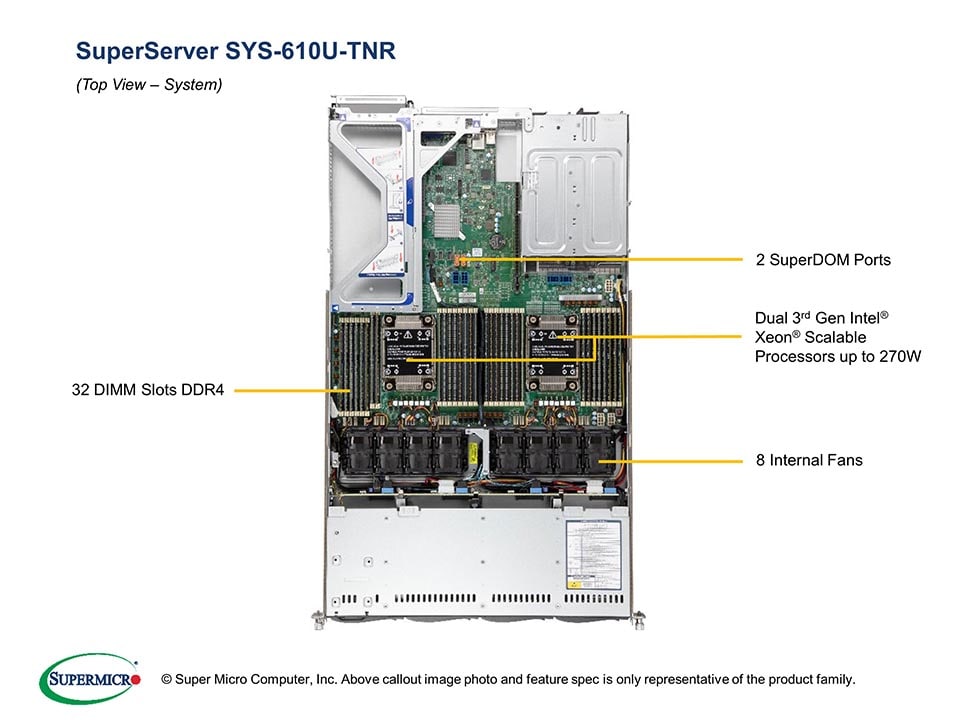

  3. 32 DIMM Slots;
    Up to 8TB DRAM;
    Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM);
    3200/2933/2666 ECC DDR4 LRDIMM;RDIMM;
    Intel® Optane™ Persistent Memory 200 series
  4. 1 Internal PCI-E 4.0 x16
    1 PCI-E 4.0 x16 (LP)
    2 PCI-E 4.0 x16 (FH, 10.5"L)
  5. Flexible networking options
  6. 4x3.5" hot-swap hybrid NVMe/SATA/SAS drive bays
  7. 8 heavy duty fans with optimal fan speed control
  8. 1200W redundant Titanium level power supplies
Specifications
Product SKUs
SYS-610U-TNR
  • SuperServer SYS-610U-TNR (Black Front & Silver Body)

Motherboard


Super X12DPU-6

Processor
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
  • Support CPU TDP 270W *
Cores
  • Up to 40C/80T; Up to 60MB Cache
Note
  • *Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization

System Memory
Memory
  • Memory Capacity: 32 DIMM slots
  • Up to 8TB: 32x 256 GB DRAM
  • Up to 12TB: 16x 512 GB PMem and 16x 256 GB DRAM
  • Memory Type: 3200/2933/2666MHz ECC DDR4 RDIMM;LRDIMM
  • Intel® Optane™ persistent memory 200 series
Memory Voltage
  • 1.2 V
Error Detection
  • ECC

On-Board Devices
SATA
  • SATA3 (6Gbps); RAID 0/1/5/10 support
NVMe
  • NVMe (16GT/s); RAID 0/1/5/10 support
Chipset
  • Intel® C621A
Network Connectivity
  • 2x 10GbE BaseT with Intel® X710-AT2 (optional) OR
  • 2x 10GbE BaseT and 2x 10GbE SFP+ with Intel® X710-TM4 (optional)
  • No NIC option supported
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input / Output
LAN
  • 1 RJ45 Dedicated BMC LAN port
USB
  • 2 USB 3.0 port(s) (2 rear)
Video
  • 1 VGA port(s)
Serial Port
  • 1 COM Port(s) (1 rear)
DOM
  • 2 SuperDOM (Disk on Module) port

System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM

Management
Software
Power Configurations
  • ACPI Power Management
  • Power-on mode for AC power recovery

PC Health Monitoring
CPU
  • 7 +1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-819U3TS-R1K22P-T

Dimensions and Weight
Height
  • 1.7" (43mm)
Width
  • 17.2" (437mm)
Depth
  • 29.7" (754mm)
Package
  • 7.99" (H) x 23.81" (W) x 37.4" (D)
Weight
  • Net Weight: 29.5 lbs (13.4 kg)
  • Gross Weight: 44.5 lbs (20.2 kg)
Available Color
  • Black Front & Silver Body

Front Panel
Buttons
  • Power On/Off
  • UID button
LEDs
  • HDD activity
  • LAN1 activity
  • LAN2 acticity
  • Power status
  • System information (overheat/UID)

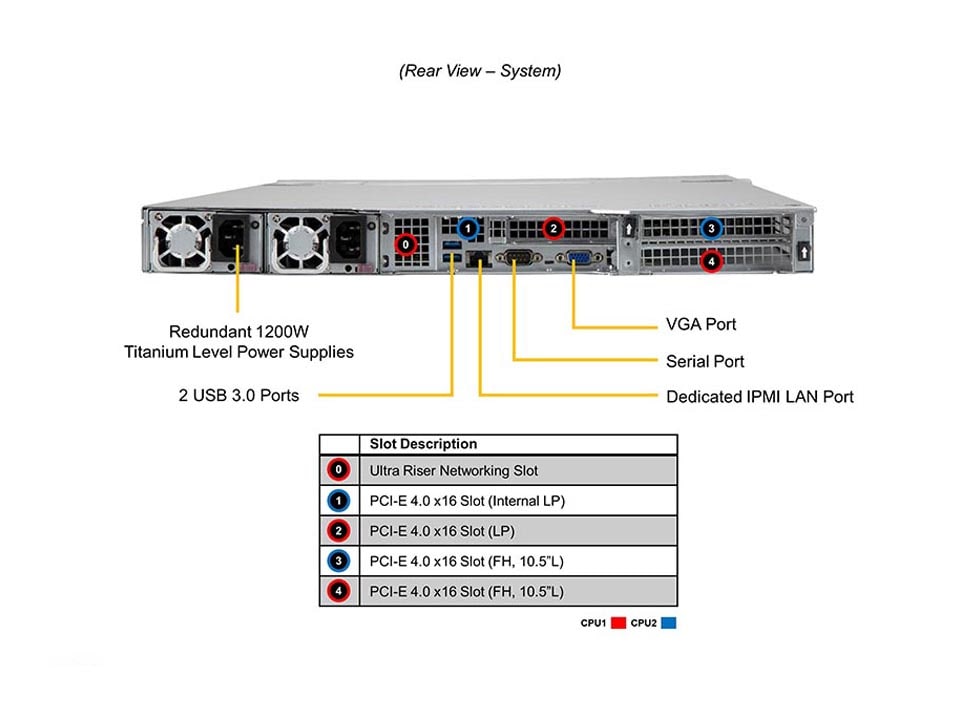

Expansion Slots
PCI-Express (PCI-E)
  • Slot 1: PCI-E 4.0 x16 Internal LP
  • Slot 2: PCI-E 4.0 x16 LP
  • Slot 3: PCI-E 4.0 x16 FH, 10.5"L
  • Slot 4: PCI-E 4.0 x16 FH, 10.5"L

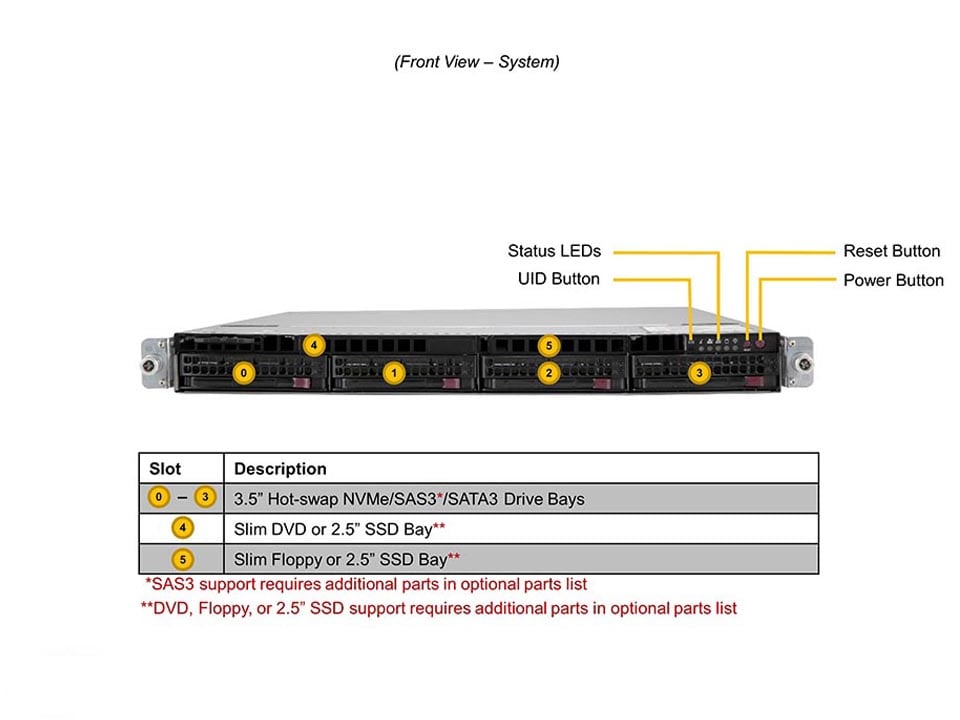

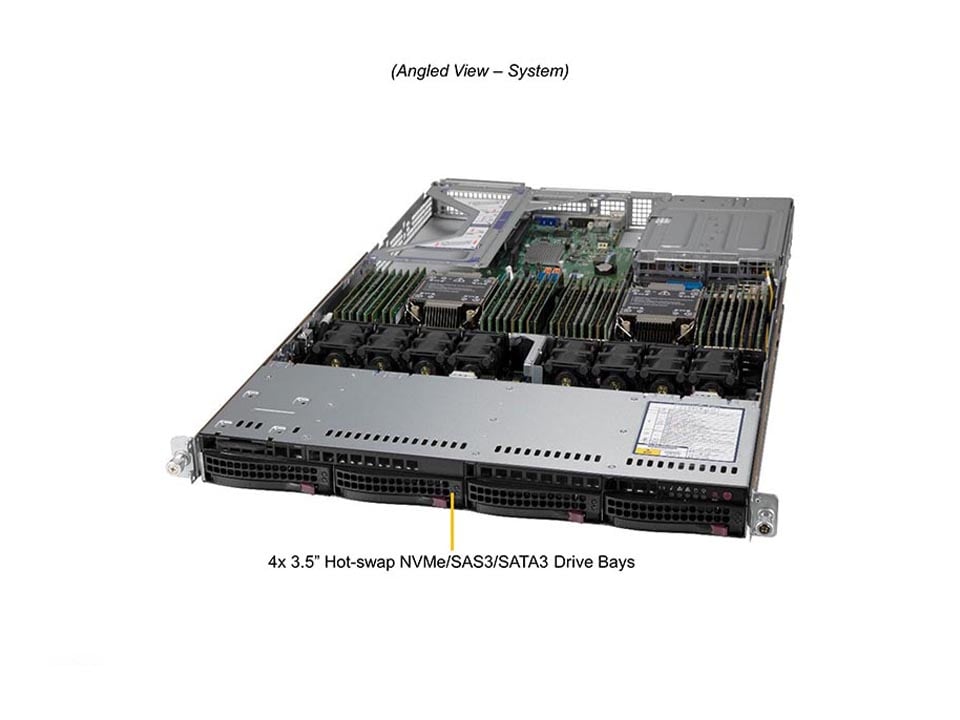

Drive Bays / Storage
Hot-swap
  • 4x 3.5" hot-swap NVMe/SATA/SAS drive bays (4x 2.5" NVMe hybrid) (SAS/NVMe support requires additional parts. Please see the Optional Parts list.)

System Cooling
Fans
  • 8x 4cm heavy duty fans with optimal fan speed control
Air Shroud
  • 2 Air Shroud(s)

Power Supply
1200W Redundant Power Supplies with PMBus
Dimension

(W x H x L)
  • 73.5 x 40 x 203 mm
AC Input
  • 800W: 100-127Vac / 50-60Hz
  • 1200W: 200-240Vac / 50-60Hz
  • 1200W: 200-240Vdc (For CCC Only)
+12V
  • Max: 66.7A / Min: 0A (100Vac-127Vac)
  • Max: 100A / Min: 0A (200Vac-240Vac)
  • Max: 100A / Min: 0A (200Vdc-240Vdc) (For CCC Only)
12V SB
  • Max: 2.1A / Min: 0A
Output Type
  • AC-Input
Certification   Titanium Level




  [ Test Report ]

Operating Environment
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)


Parts List
Parts List - (Items Included)


Part Number

Qty

Description

Motherboard / Chassis MBD-X12DPU-6

CSE-819U3TS-R1K22P-T
1

1
Super X12DPU-6 Motherboard

1U Chassis
Backplane BPN-SAS3-815TQ-N4 1 4-port 1U SAS3 12Gbps Hybrid backplane, support up to 4x 3.5-inch SAS3/SATA3/NVMe Storage Devices
Cable 1 CBL-PWEX-0650 1 8 Pin Female to 2x RA(Right Angle) Big 4 Pin Female Power
Cable 2 CBL-SAST-1256-100 1 Slimline X4 (RE) to 4x SATA,INT,56/46/46/56CM,SB 56CM,1
Air Shroud MCP-310-11907-0N 1 CSE-119UH3 Plastic Air Shroud (right side) for X12DPU
Air Shroud MCP-310-11908-0N 1 CSE-119UH3 Plastic Air Shroud (left side) for X12DPU
Riser Card RSC-W-66G4 1 1U LHS WIO Riser card with two PCI-E 4.0 x16 slots,HF,RoHS
Riser Card RSC-WR-6 1 1U RHS WIO Riser card with one PCI-E 4.0 x16 slot,HF,RoHS
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0077P 2 1U Passive CPU Heat Sink for X12 Generation Intel Whitley and Cedar Island Platforms
*Power Supply PWS-1K22A-1R 2 1U 1200W/800W Titanium Redundant Power Supply CRPS 73.5x203x40mm,RoHS/REACH
*Cable 3 CBL-CDAT-0667 1 FRONT PANEL CONTROL CABLE 20 PIN TO 20 PIN W/TUBE, 85CM, 28A
*Cable 4 CBL-PWCD-0160-IS 2 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
*Peripheral Drive1 CSE-PT93L-B 1 Black DVD dummy cover for SC813, 813M, 815, PBF-RoHS
*FAN 1 FAN-0210L4 8 40x40x56 mm, 29.5K-25.5K RPM, Counter-rotating Fan, RoHS
*FAN 2 FAN-0216L4-2 8 40x40x56 mm, 31K-26.6K RPM, Counter-rotating Fan, Non-hot-swappable
*Front Panel FPB-FP815U 1 815 UIO front control board (U)
*Parts MCP-160-11901-0B 1 1U Ultra Mylar cable channel for X12
*Parts MCP-160-11902-0B 1 1U Ultra FP1 cable protective Mylar
*Drive Tray(s) MCP-220-00075-0B 4 Black gen 5.5 hot-swap 3.5“ HDD tray
*Rear Window MCP-240-81916-0N 1 Ultra I/O Rear window for SC819U, 119U tool-less chassis (No opening)
*Front Panel MCP-280-00034-0N 1 Universal Thermal sensor kit with 40cm I2C cable
*Rail Set MCP-290-00112-0N 1set Inner rail, extension, long (quick) for 1U 17.2
*Air Shroud MCP-310-81905-0B 1 Plastic air shroud for SC819U, 119U, 829U, 219U (PWS),RoHS/REACH
*Fan Holder MCP-320-00056-0B 32 40X56 rubber fan pin for SC819U, SC119U,RoHS/REACH
*Front Panel FPB-TMP-002 1 Thermal Sensor board with 40cm I2C cable
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
  Part Number Qty Description
1U Cable Management Arm MCP-290-00165-0N • 1 1U Supermicro Cable Management Arm 3rd Gen
Add-on card for M.2 support AOC-SLG3-2H8M2-O - 2x Hybrid NVMe/SATA M.2 RAID Carrier, Standard LP,RoHS
CacheVaults BTR-CV3108-1U1 - CacheVault for Broadcom 3108 with Supercap mounting in 1U 40x56 fan tray
BTR-CVPM05 + BKT-BBU-BRACKET-05 - CacheVault for Broadcom 3908/3916 with Supercap
Drive Tray MCP-220-00138-0B • 1 ~ 4 Black gen-5.5 tool-less NVMe 3.5-to-2.5 drive tray, Orange tab (For NVMe)
MCP-220-00118-0B • 1 ~ 4 Black gen-5.5 tool-less 3.5-to-2.5 drive tray, Red tab (For SATA/SAS)
DVD-ROM/DVD-RW DVM-PLDS-DVDRW-SBT5 1 BLACK PHILIPS SLIM DVD-RW SATA DRIVE, HF, RoHS
DVM-TEAC-DVDRW-SBT5 1 BLACK TEAC SLIM DVD-RW SATA DRIVE, HF, RoHS
DVM-TEAC-DVD-SBT5 1 BLACK TEAC SLIM DVD SATA DRIVE, HF, RoHS
DVD-ROM/DVD-RW Installation Kit MCP-220-81502-0N + CBL-0161L + CBL-PWEX-0702 1 Slim SATA DVD kit
Global Services & Support OSNBD3/2/1 - 3/2/1-year onsite NBD service
OS4HR3/2/1 - 3/2/1-year onsite 24x7x4 service
Hot-Swap 2.5" Slim HDD Tray (DVD Slot) MCP-220-81506-0N • & CBL-0161L & CBL-PWEX-0650 1 12G 2.5" Hot-swap Slim DVD Size Drive Kit w/Status LED
Hot-Swap 2.5" Slim HDD Tray (FDD Slot) MCP-220-81504-0N • & CBL-0161L & CBL-PWEX-0650 1 12G 2.5" Hot-swap Slim Floppy Size Drive Kit w/Status LED
Intel® VROC RAID Key Options AOC-VROCPREMOD 1 Intel VROC Premium, RAID 0, 1, 5, 10
AOC-VROCSTNMOD 1 Intel VROC Standard, RAID 0, 1, 10
AOC-VROCINTMOD 1 Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only)
Internal 2.5" Slim HDD Tray (DVD slot) MCP-290-00036-0B & CBL-0484L • & CBL-0080L & CBL-PWEX-0650 1 12G 2.5" Internal Slim DVD Size Drive Kit
Internal 2.5" Slim HDD Tray (FDDD slot) MCP-220-83601-0B & CBL-0484L • & CBL-0080L & CBL-PWEX-0650 1 12G 2.5" Internal Slim Floppy Size Drive Kit
Internal Drive Tray for Two 2.5" Drives MCP-120-82916-0N 1 2.5" Internal Drive Bay (Slim DVD Tray)
CBL-PWEX-0650
CBL-0080L
1
2
Power Cable for Two internal 2.5" drives

CBL-0484L • Or
CBL-SAST-0654 Or
CBL-SAST-0948 •
2
1
1
SATA3 S-S Cable
miniSAS(iPass) to 4 SATA Cable
miniSAS HD to 4 SATA Cable
Network Card(s) AOC Compatibility Matrix - Standard Networking AOC Matrix
NVMe Support Cable Kit CBL-KIT-610U-TNR-4 1 4 NVMe Cable Kit for X12 Ultra SYS-610U-TNR
Optional Storage Controller Card + Cable(s) AOC-S3008L-L8E + 1x CBL-SAST-0948 • - Standard LP, 8 internal ports (12Gb/s) Gen-3; HBA
AOC-S3808L-L8iT-O + 1x CBL-SAST-1251-100 - Standard LP, 8 internal ports (12Gb/s) Gen-4; HBA
AOC-S3108L-H8iR-16DD + 1x CBL-SAST-0948 • - Standard LP, 8 internal ports (12Gb/s) Gen-3; RAID 0, 1, 5, 6, 10, 50, 60
AOC-S3908L-H8iR-16DD-O + 1x CBL-SAST-1251-100 - Standard LP, 8 internal ports (12Gb/s) Gen-4; RAID 0, 1, 5, 6, 10, 50, 60
AOC-S3008L-L8i + 1x CBL-SAST-0948 • - Standard LP, 8 internal ports (12Gb/s) Gen-3; RAID 0,1,1E
AOC-S3008L-L8E+-O + 1x CBL-SAST-0948 • - Standard LP, 8 internal ports (12Gb/s) Gen-3; HBA + I2C
Power Supply PWS-1K62A-1R • 2 1U 1600W, Titanium Level, Redundancy, AC Input: 90 - 264 VAC/47-63Hz
PWS-1K30D-1R • 2 1U 1300W, Redundancy, DC Input: -48Vdc
PWS-2K08A-1R 2 1U 2000W, Titanium Level, Redundancy, AC Input: 90-264VAC/47-63Hz, and wide DC input 180Vdc~300Vdc
Software SFT-DCMS-Single
DataCenter Management Package (per node license) consists of:
  • OOB Management package capabilities provided by SFT-OOB-LIC
  • Centralized Management Console licenses for health monitoring, power management and firmware upgrades
  • RESTful API support to integrate server management into existing management infrastructure (roadmap Q1’15)
  • Advanced Power Management licenses to manage power on heterogeneous server vendor products
  • Remote Software installation support
  • Remote debug assistance directly from product engineers

Software tools: SSM, SPM, SUM',ABOVE,ol_width=750,ol_border=1,ol_cellpad=6);">SFT-DCMS-Single
1 DataCenter Management Package (per node license)
Trusted Platform Module Options AOM-TPM-9670V-O 1 SPI TPM 2.0 using SLB9670
AOM-TPM-9670V-S-FIPS-P 1 AOM-TPM-9670V-S-FIPS TPM 2.0 support TAA and FIPS,RoHS
AOM-TPM-9671V-O 1 SPI Capable Vertical TPM 1.2 Module
Ultra Riser Card Options + Rear Window AOC-URG4N4-O 1 1U Ultra Riser without NIC, with 1 PCI-E 4.0 x16 (internal), and 4 NVMe ports (2x SlimSAS x8),RoHS
AOC-URG4N4-m2TS + MCP-240-81915-0N 1 1U Ultra Riser 2-port 25GbE SFP28, based on Mellanox CX-6 LX, with 1 PCI-E 4.0 x16 (internal), and 4 NVMe ports (2x SlimSAS x8),RoHS
AOC-URG4N4-I4XTS-O + MCP-240-81911-0N 1 1U Ultra Riser with 2-port 10GBase-T RJ45 & 2-port 10G SFP+, based on Intel Carlsville X710-TM4, with 1 PCI-E 4.0 x16 (internal), and 4 NVMe ports (2x SlimSAS x8),RoHS
AOC-URG4N4-I2XT-O + MCP-240-81909-0N 1 1U Ultra Riser with 2-port 10GBase-T RJ45, based on Intel Carlsville X710-AT2, with 1 PCI-E 4.0 x16 (internal), and 4 NVMe ports (2x SlimSAS x8),RoHS
