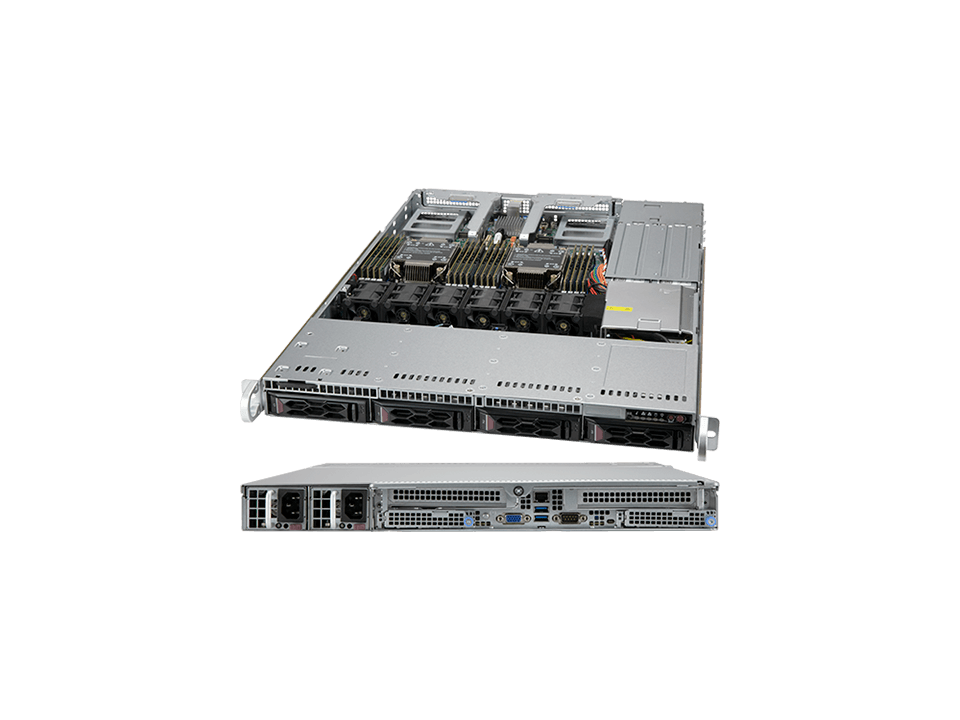

SYS-610C-TR

Key Applications
- Web Server, Firewall Application
- Data Center Optimized, Value IaaS
- Cloud Computing, Compact Server
- DNS & Gateway Servers, Firewall Application
- CDN, Edge Nodes



Key Features

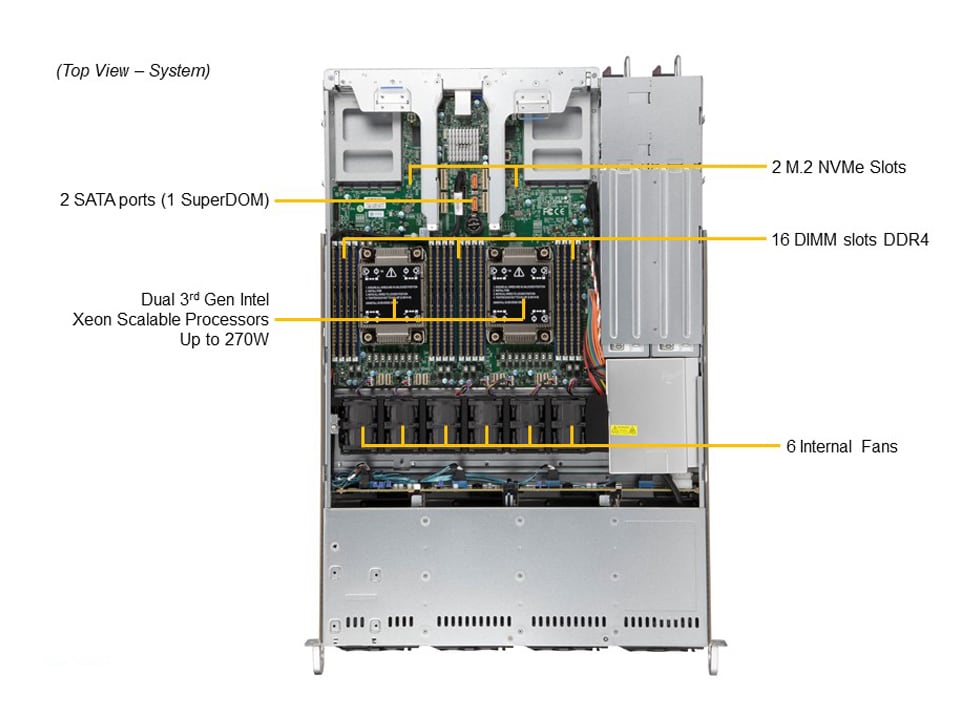

  1. Dual sockets P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
  2. Intel® C621A Chipset
  3. 16 DIMMs up to 6TB 3DS ECC DDR4-3200: LRDIMM/RDIMM/Intel® DCPMM
  4. 2 PCI-E 4.0 x16 FHHL;
    2 PCI-E 4.0 x16 AIOM (OCP 3.0);
    2 PCI-E 3.0 x2 NVMe M.2
  5. Dual AIOM with NCSI (OCP 3.0) for networking, 1 dedicated IPMI LAN

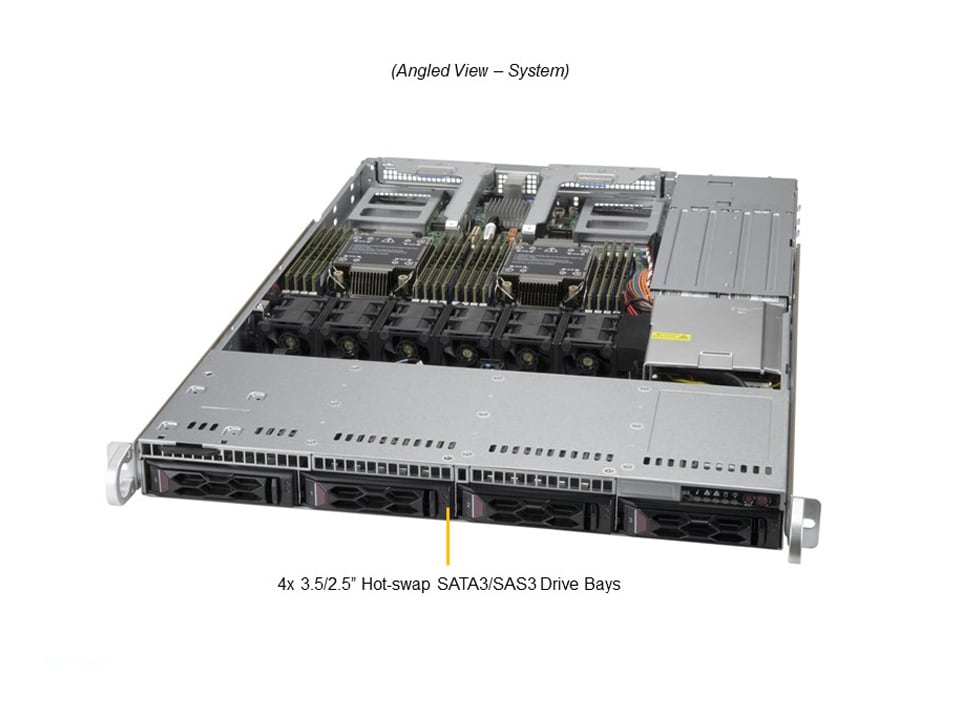

  6. 4x 3.5/2.5" hot-swap SATA/SAS drive bays
  7. 6 counter-rotating 4 cm PWM fans with optimal fan speed control, 2 air shrouds
  8. 860W redundant Platinum level 100-240Vac and 200-240 Vdc power supplies

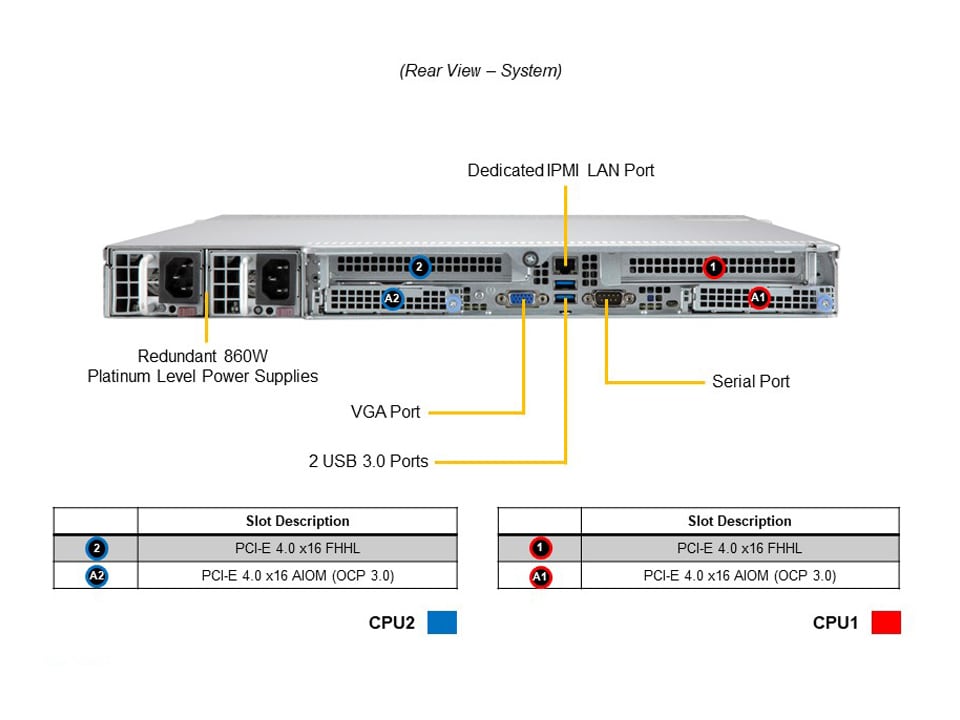

  9. 1 VGA, 1 COM, 2 USB 3.0 (rear)
Specifications
Product SKUs
SYS-610C-TR
  • SuperServer SYS-610C-TR (Black)

Motherboard


Super X12DDW-A6

Processor
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
  • Support CPU TDP 270W
  • CPUs with TDP higher than 185W may have support conditions due to power and thermal limitations.
Cores
  • Up to 40C/80T; Up to 60MB Cache

System Memory
Memory
  • Memory Capacity: 16 DIMM slots
  • Up to 4TB: 16x 256 GB DRAM
  • Up to 6TB: 8x 256 GB DRAM and 8x 512 GB PMem
  • Memory Type: 3200/2933/2666MHz ECC DDR4 RDIMM;LRDIMM
  • Intel® Optane™ persistent memory 200 series
Memory Voltage
  • 1.2 V
Error Detection
  • ECC

On-Board Devices
SATA
  • SATA3 (6Gbps); RAID 0/1/5/10 support
Chipset
  • Intel® C621A
Network Connectivity
  • Via Slim-AIOM
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input / Output
LAN
  • 1 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 port(s) (2 rear)
Video
  • 1 VGA port(s)
Serial Port
  • 1 COM Port(s) (1 rear)
DOM
  • 1 SuperDOM (Disk on Module) port

System BIOS
BIOS Type
  • AMI 32MB SPI FLASH ROM

Management
Software
  • SCC
  • Redfish API
  • IPMI 2.0
  • SSM
  • Intel® Node Manager
  • SPM
  • KVM with dedicated LAN
  • SUM
  • NMI
  • Watch Dog
  • SuperDoctor® 5
Power Configurations
  • ACPI/APM Power Management

PC Health Monitoring
CPU
  • 4+1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory.
FAN
  • Fans with tachometer monitorin
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 1U
Model

Dimensions and Weight
Height
  • 1.7" (43mm)
Width
  • 17.2" (437mm)
Depth
  • 25.6" (650mm)
Package
  • 7.7" (H) x 23.7" (W) x 34.1" (D)
Weight
  • Gross Weight: 28 lbs (12.7 kg)
Available Color
  • Black

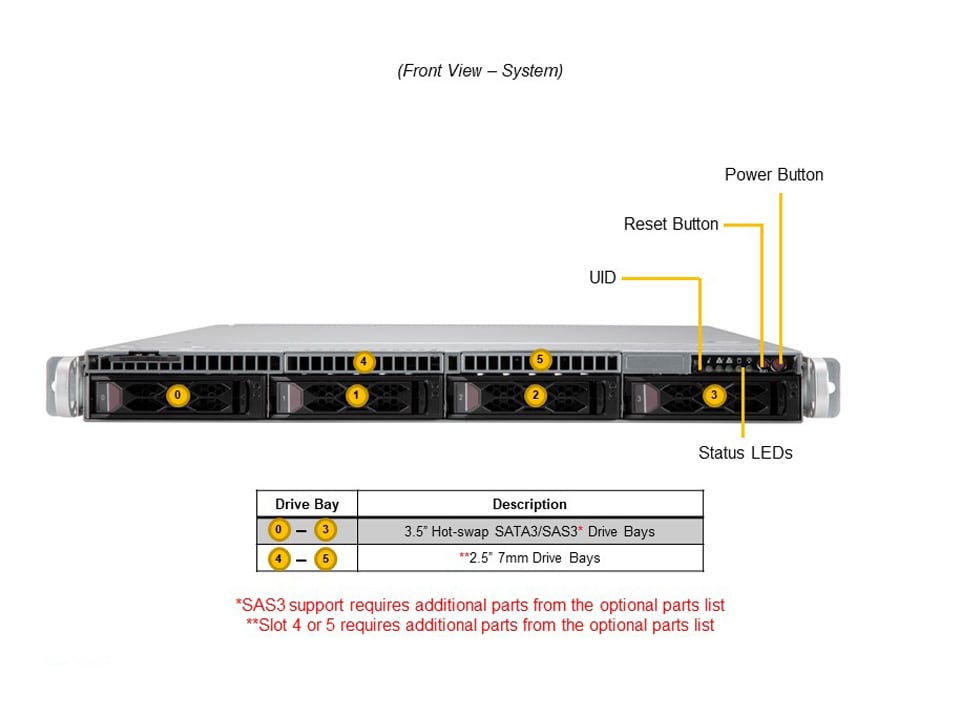

Front Panel
Buttons
  • Power On/Off
  • Reset button
  • Universal Information (UID)
LEDs
  • Drive activity
  • Network activity
  • Power status
  • Universal Information (UID)

Expansion Slots
PCI-Express (PCI-E)
  • Slot 1: PCI-E 4.0 x16 FHHL
  • Slot 2: PCI-E 4.0 x16 FHHL

Drive Bays / Storage
Hot-swap
  • 4x 3.5" hot-swap SATA/SAS drive bays (Default 3.5" drive trays can also support 2.5" drives.)
M.2
  • 2 M.2 NVMe
  • M-Key, 2280
Peripheral Bays
  • 2x 2.5" drive bays (optional)

System Cooling
Fans
  • 6x 4cm heavy duty fans with optimal fan speed control
Air Shroud
  • 2 Air Shroud(s)

Power Supply
AC 860W, Platinum Level, Redundant Power Supply, 54.5mm width
Dimension

(W x H x L)
  • 54.5 x 40.25 x 320 mm
Output Type
  • Gold Finger
Certification   Platinum Level




  [ Test Report ]

Operating Environment
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)


Parts List
Parts List - (Items Included)


Part Number

Qty

Description

Motherboard / Chassis MBD-X12DDW-A6

CSE-LA15TQC-R860AW
1

1
Super X12DDW-A6 Motherboard

1U Chassis
Backplane BPN-SAS3-815TQ 1 1U 4-Port 12Gbps Backplane Support 4x3.5
Cable 1 CBL-SAST-1295LP-100 1 SlimlineLP x4 (STR) to 4x SATA (STR),75/75/90/90/75CM,10
FAN 1 FAN-0101L4 2 40x56,4 Pin PWM,Primary for SC809,111, Sec.for SC816,819,808
Parts MCP-150-00015-0B 6 Rubber pad, 3.0mm H, 10x10mm
Air Shroud MCP-310-00105-0B 2 Mylar Air Shroud for LA15-AW,LB13-AW,LB16-AW + X12DDW
Manual MNL-2343-QRG 1 610C-TR Quick Reference Guide
Riser Card RSC-D-6G4 1 1U LHS DCO Riser card with one PCI-E 4.0 x16 slot,HF,RoHS
Riser Card RSC-DR-6G4 1 1U RHS DCO Riser card with one PCI-E 4.0 x16 slot,HF,RoHS
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0077P 2 1U Passive CPU Heat Sink for X12 Generation Intel Whitley and Cedar Island Platforms
*Power Supply PWS-860P-1R2 2 1U 860W, Redundant power supply, 54.5mm width, Platinum with
*Power Distributor PDB-PT116-SL8824 1 Based on PDB-PT116-L8824 to optimize 24Pin etc cable lengths
*Cable 2 CBL-CDAT-0680-55 1 NCSI,2x10F to 2x10F,IDC,PH2.54,55cm,shield,28AWG,RoHS
*Cable 3 CBL-PWCD-0160-IS 2 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
*FAN 2 FAN-0101L4 4 40x56,4 Pin PWM,Primary for SC809,111, Sec.for SC816,819,808
*Front Panel FPB-FP815U 1 815 UIO front control board (U)
*Parts MCP-160-00028-0B 1 Mylar Cable Channel for Cloud-DC, X12 DDW
*Drive Tray(s) MCP-220-00184-0B 4 Black gen-9 tool-less cost-effective 3.5
*Rear Window MCP-240-00173-0N 1 1U X12 AWIO Rear window for LA15,LB16,LB13 Redundant PWS
*Power Supply MCP-250-81502-0N 1 SC815 Redundant Power Distributor Cover
*Rail Set MCP-290-00054-0N 1set Rail set, quick/quick, optional for 1U 17.2
*Fan Holder MCP-320-00056-0B 24 40X56 rubber fan pin for SC819U, SC119U,RoHS/REACH
*Fan Holder MCP-320-00066-0B 1 Fan holder with cable channel, 40X56mm fan, for LA15,LB16,LB13
*Parts MCP-320-00067-0B 1 Chassis base Air Foam block set (L+R) for Cloud-DC
*Fan Holder MCP-340-00035-0B 2 Dummy fan 40x56mm for 40x56 counter-rotating fan (cost-effective)
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
  Part Number Qty Description
3108 CacheVault BTR-CV3108-1U1 1 CacheVault for Broadcom 3108 with SuperCap mounting in 1U 40x56 fan tray.
Recommended to add only if all PCI-E, drive and AIOM locations are occupied. It will replace one fan in the system.
BTR-TFM8G-LSICVM02 1 CacheVault for Broadcom 3108 (requires a SuperCap mount)
3108 RAID Card CBL-SAST-0699 • 1 Mini SAS HD-4 SATA,12G,75/75/90/90CM,75CM SB
AOC-S3108L-H8IR-16DD 1 Standard LP, 8 internal ports (12Gb/s) Gen-3, 16HDD; RAID 0, 1, 5, 6, 10, 50, 60;
3108/3908/3916 SuperCap Mount MCP-240-21747-0N 1 SuperCap mounting card for AIOM location
MCP-240-00127-0N 1 SuperCap mounting tray for 2.5" drive location
MCP-240-00203-0N 1 SuperCap mounting bracket for PCI-E location
3808 HBA Card AOC-S3808L-L8IT 1 Standard LP, 8 internal ports (12Gb/s) Gen-4, 16HDD; HBA;
CBL-SAST-1275A-100 1 Slimline x8 (STR) to 4x SATA, 75/75/90/90CM,75CM SB
3908 RAID Card AOC-S3908L-H8IR-16DD 1 Standard LP, 8 internal ports (12Gb/s) Gen-4, 122HDD; RAID 0, 1, 5, 6, 10, 50, 60;
CBL-SAST-1275A-100 1 Slimline x8 (STR) to 4x SATA, 75/75/90/90CM,75CM SB
3908/3916 CacheVault BTR-CV3916-1U1 1 CacheVault for Broadcom 3908/3916 with a SuperCap mount in 1U 40x56 fan tray.
Recommended to add only if all PCI-E, drive and AIOM locations are occupied. It will replace one fan in the system.
BTR-CVPM05 1 CacheVault for Broadcom 3908/3916 (requires a SuperCap mount)
Add-on card for additional M.2 AOC-SLG3-2M2 - Low Profile PCI-E x8 add-on card supports 2 PCI-E 3.0 x4 M-Key M.2 NVMe Modules
AOC-SLG3-2H8M2 - Low Profile PCI-E x8 add-on card supports 2 PCI-E 3.0 x4 M-Key M.2 NVMe/SATA Modules; RAID 0,1
AIOM Network Card(s) AOC-A100G-b2CM - OCP 3.0 AIOM NIC, 2x 100GbE QSFP28, PCI-E 4.0 x16, Broadcom® BCM57508
AOC-AH25G-m2S2TM - OCP 3.0 AIOM NIC, 2x 25GbE SFP28 & 2x 10GbE RJ45, PCI-E x8/x4, Mellanox® CX4 Lx EN & Intel® X550-AT2
(Add 1x MCP-310-00107-0B per card to support this NIC)
AOC-AG-i4SM - OCP 3.0 AIOM NIC, 4x 1GbE SFP, PCI-E 2.1 x4, Intel® i350-AM4
AOC-AG-i4M - OCP 3.0 AIOM NIC, 4x 1GbE RJ45, PCI-E 2.1 x4, Intel® i350-AM4
AOC-ATG-i4SM - OCP 3.0 AIOM NIC, 4x 10GbE SFP+, PCI-E 3.0 x8, Intel® XL710-BM1
AOC-AG-i2M - OCP 3.0 AIOM NIC, 2x 1GbE RJ45, PCI-E 2.1 x4, Intel® i350-AM2
AOC-ATG-i2TM - OCP 3.0 AIOM NIC, 2x 10GbE RJ45, PCI-E 3.0 x4, Intel® X550-AT2
AOC-A25G-m2SM - OCP 3.0 AIOM NIC, 2x 25GbE SFP28, PCI-E x8, Mellanox® CX-6 LX
AOC-ATG-i2T2SM - OCP 3.0 AIOM NIC, 4x 10GbE RJ45 & SFP+, PCI-E x8, Intel® X710-TM4
AOC-A25G-b2SM - OCP 3.0 AIOM NIC, 2x 25GbE SFP28, PCI-E x8, Broadcom® BCM57414
AOC-A25G-i2SM - OCP 3.0 AIOM NIC, 2x 25GbE SFP28, PCI-E x8,Intel E810-XXVAM2
AOC-ATG-i2SM - OCP 3.0 AIOM NIC, 2x 10GbE SFP+, PCI-E 3.0 x8, Intel® X710-BM2
AOC-A100G-m2CM - OCP 3.0 AIOM NIC, 2x 100GbE QSFP28, PCI-E 4.0 x16, Mellanox® CX-6 DX
AOC-ATGC-i2TM - OCP 3.0 AIOM NIC, 2x 10GbE RJ45, PCI-E 3.0 x4, Intel X710-AT2
Cable Management Arm MCP-290-00152-0N • 1 1U Supermicro Cable Management Arm 2nd Gen
Fan Upgrade FAN-0163L4 • 6 40x40x56 mm, 23.3K-20.3K RPM, Counter-rotating Fan
Fixed 2.5" Drive Kit CBL-SAST-0624 • 2 70cm SATA Cable S-S
CBL-0211L • 1 4PIN-TO-3X SATA POWER CABLE
MCP-220-81511-0N 2 FDD-size tray support for 1x 2.5" 7mm drive
Inlet Temp Sensor MCP-280-00033-0N 1 Universal Thermal sensor kit with 80cm I2C cable
Intel VROC Key AOC-VROCPREMOD 1 Intel VROC Premium, RAID 0, 1, 5, 10
AOC-VROCINTMOD 1 Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only)
AOC-VROCSTNMOD 1 Intel VROC Standard, RAID 0, 1, 10
Power Supply Upgrade PWS-1K27A-1R • 2 1000W/1200W 1U 54.5Wx322Lx40H mm redundant Titanium
Software SFT-DCMS-Single
DataCenter Management Package (per node license) consists of:
  • OOB Management package capabilities provided by SFT-OOB-LIC
  • Centralized Management Console licenses for health monitoring, power management and firmware upgrades
  • RESTful API support to integrate server management into existing management infrastructure (roadmap Q1’15)
  • Advanced Power Management licenses to manage power on heterogeneous server vendor products
  • Remote Software installation support
  • Remote debug assistance directly from product engineers

Software tools: SSM, SPM, SUM',ABOVE,ol_width=750,ol_border=1,ol_cellpad=6);">SFT-DCMS-Single
1 DataCenter Management Package (per node license)
TPM security module AOM-TPM-9671V 1 SPI capable TPM 1.2 with Infineon 9670 controller; vertical form factor
AOM-TPM-9670V 1 SPI capable TPM 2.0 with Infineon 9670 controller; vertical form factor
AOM-TPM-9670V-S-FIPS 1 SPI capable TPM 2.0 with Infineon 9670 controller w/ FIPS; vertical form factor
