Server

SYS-E100-13AD-C

Key Applications

  • Industrial Automation, Retail
  • Smart Medical Expert Systems
  • Digital Signage Kiosk, Interactive info system
  • IoT Gateway for Smart Factory
  • Smart Building, Security and Surveillance

Key Features

  1. Wi-Fi enabled system. Optional Intel® Wi-Fi 6E AX210 Gig+ integration with support for Wi-Fi 4, 5, 6, 6E R2, and Bluetooth® 5.3
  2. Alder Lake-U 12th Generation Intel® Celeron® 7305E
  3. 2x DDR5-4800MT/s Non-ECC SO-DIMM max 64GB
  4. M.2 M/B/E-Key with Nano SIM Card Slot
  5. 2x LAN 2.5GbE
  6. Fanless (Op. Temperature 0C ~ +50C)
  7. 4 Independent Displays: HDMI2.0b/1.4b + DP 1.4a (Alt mode USB Typ-C)
Specifications
Product SKUs
SuperServer SYS-E100-13AD-C
Motherboard
Super X13SAN-C-WOHS
Processor
CPU
  • Single FCBGA-1744
  • Intel® Celeron® Processor 7305E
Core Count
  • Up to 5C/10T; Up to 8MB Cache
Note
  • Supports up to 15W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 2 DIMM slots/2 Channels
  • Max Memory (2DPC): Up to 64GB 4800MT/s non-ECC DDR5 SO-DIMM
  • View Memory Options
Memory Voltage
  • 1.1V
On-Board Devices
Chipset
  • intel System on Chip
Network Connectivity

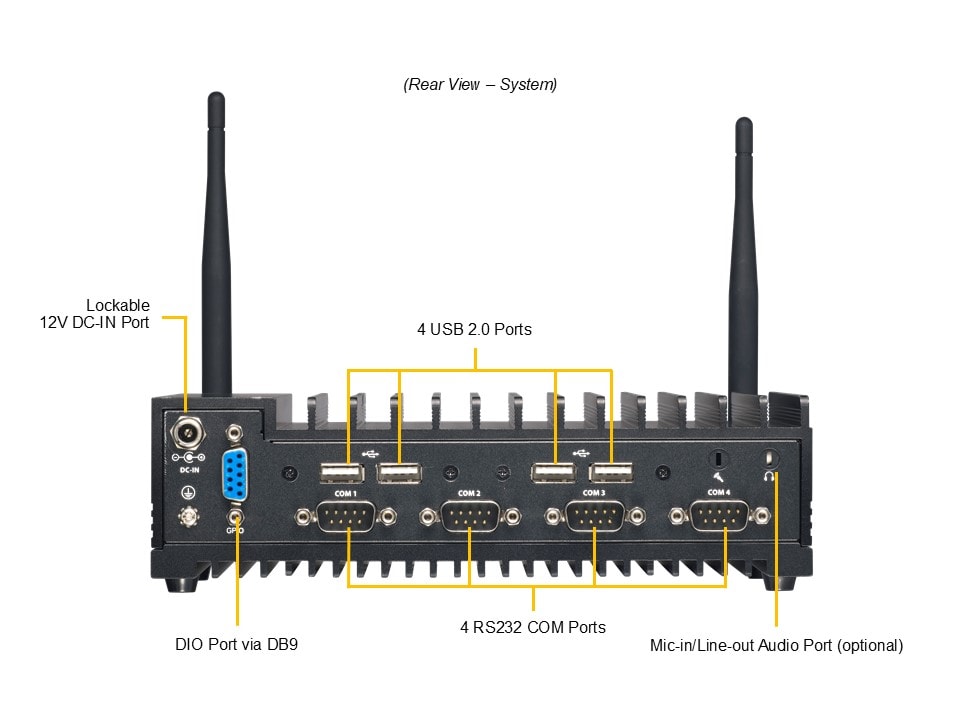

Input / Output
LAN
  • 2 RJ45 2.5 GbE LAN ports (Intel® I225-IT)
USB
  • 2 USB 3.2 Gen1 Type-C ports(front)
  • 2 USB 3.2 Gen1 Type-A ports(front)
  • 4 USB 2.0 Type-A ports(Rear)
Video
  • 1 HDMI 2.0b port(Front)
  • 1 HDMI 1.4b port(Front)
  • 1 Mini-DP 1.4 port(Front)
Serial
  • 4 COM ports(Rear)
TPM
  • 1 TPM Onboard/port 80
System BIOS
BIOS Type
  • AMIUEFI
BIOS Features
  • ACPI 6.4
  • SMBIOS 3.5 or later
  • UEFI 2.8
  • PCI F/W 3.0
Management
Software
Power configurations
  • ACPI Power Management
  • CPU thermal trip support for processor protection
  • Control of power-on for recovery from AC power loss
  • DC 12V~24V Wide power range input
  • Force power-on by jumper
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
Chassis
Form Factor
  • Fanless Embedded
Model
  • CSE-E101-04
Dimensions and Weight
Height
  • 1.73" (44 mm)
Width
  • 7.68" (195 mm)
Depth
  • 5.94" (150 mm)
Package
  • 5.12" (H) x 11.81" (W) x 11" (D)
Weight
  • Gross Weight: 4.3 lbs (1.95 kg)
  • Net Weight: 2.16 lbs (0.98 kg)
Palletized Packing (W x H x L)
  • 54.3" (1380 mm) x 78.5" (1993 mm) x 35" (890 mm)
Available Color
  • Black

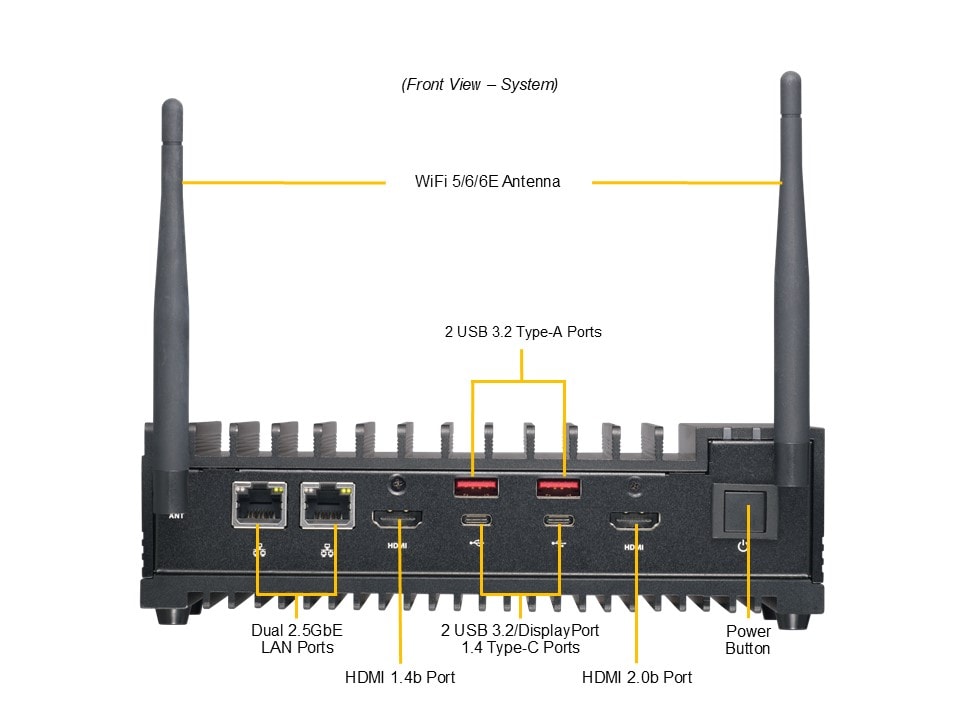

Front Panel
LED
  • HDD Status
  • LAN1 activity
  • LAN2 activity
  • Power status
Buttons
  • Power On/Off
Expansion Slots
M.2
  • 1 M.2 SATA slot (B-key 2242/2280; USB 3.0)
  • 1 M.2 slot (E-key 2230; USB 2.0)
  • 1 M.2 PCIe 4.0 x4 NVMe slot (M-key 2242/2280)
PCI-Express (PCIe) Configuration
Drive Bays / Storage
M.2
  • 1 M.2 PCIe 4.0 x4 NVMe slot (M-key 2242/2280)
  • 1 M.2 SATA slot (B-key 2242/2280; USB 3.0)
  • View M.2 Options
System Cooling
Fans
  • N/A
Power Supply
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 0°C ~ 50°C (32°F ~ 122°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-X13SAN-C-WOHS

CSE-E101-04
1

1
Super X13SAN-C-WOHS Motherboard

Fanless Embedded Chassis
Cable CBL-PWCD-0260-IS 1 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,18AWG,RoHS/REACH
CBL-CUSB-0985 2 USB 2.0,INT-EXT,2 PORT,TYPE-A-2X5/P2.00, 18CM
CBL-CUSB-1047 1 SERIAL, DB9F TO 2X5F/P2.00,INT TO EXT,FLAT, 30CM, 28AWG
CBL-OTHR-1046 1 2x LED (green, orange) to 8P/F/P2.00 + push button switch, 32CM, 26AWG
Power Supply MCP-250-10137-0N 1 84W Lockable AC to DC power adapter w/o power cord - EN62368
Heatsink / Retention MCP-350-10103-0N 1 for X13SAN in system
Manual MNL-2622-QRG 1 E100-13AD-H/E/L/C Quick Reference Guide
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
Part Number Qty Description
Audio Kit MCP-280-10001-0B 1 Audio Cable Phone Jack and Plug(3.5mm) L:100mm,HF,RoHS
Din Rail Kit MCP-290-10201-0N 1 CSE-E101/E102/E50 Mounting Hardware Clip for 35mm DIN Rail
Thermal Solution MCP-270-10105-0B 1 FIN base bottom cover for M.2 NMVe
MCP-270-10105-1B 1 FIN base bottom cover for HAILO-8 M.2 Module
WiFi Certificate AOC-ANTE-WFRP-01 2 WiFi 5/6/6E ANT, SMA R.P, Freq. 2.4-2.5/5.15-7.125 GHz
AOC-CSMA-MRPI4-20 2 SMA R.P/Male pin to IPEX MHF-IV for OD 1.13mm CBL, 20cm
AOC-WLAN-210NGWGII 1 Intel® Wi-Fi 6E AX210 (Gig+), 2230, 2x2 AX R2 (6GHz)+BT, vPro
