Chassis

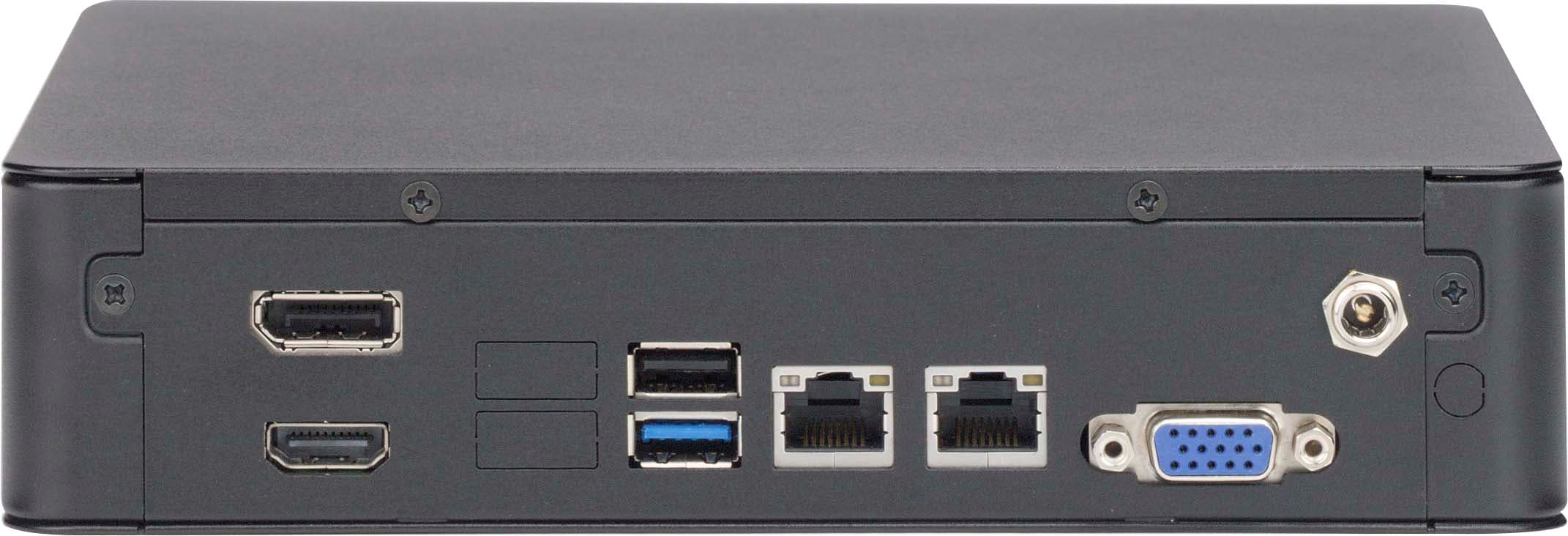

CSE-101S

Key Features


  1. Slim & Space-saving 1U Mini-ITX Chassis Design
  2. Standard Mini-ITX MB form factor 6.7" x 6.7"
  3. 1x 2.5" internal HDD support
    (Design for 9.5mm thickness HDD)
  4. 1x 4cm Cooling Fan
  5. VESA/Wall-mount ready

Specifications
Product SKUs
CSE-101S
  • SuperChassis 101S

Form Factor
  • Mini-ITX chassis support for motherboard size Mini-ITX 6.75“ x 6.75“

Processor Support
  • Single Intel® and AMD processors

Dimensions
Height
  • 1.75“ (44.45 mm)
Width
  • 7.68“ (195 mm)
Depth
  • 7.68“ (195 mm)
Gross Weight
  • 7.5 lbs (3.4 kg)
Net Weight
  • 2.76 lbs (1.25 kg)
Packaging (W x H x L)
  • 15“ (381 mm) x 10.87“ (276 mm) x 5.59“ (142 mm)
Available Color
  • Black

Drive Bays
  • 1x 2.5" fixed drive bay

Front Panel
Button
  • Power On/Off button
  • System Reset button
LED
  • Power status LED
Systems Cooling
Fans
  • 1x 4cm high performance PWM fan(s)

Operating Environment (System)
Operating Temperature Range
  • 0°C - 40°C (32°F - 104°F)
Non-Operating Temperature Range
  • -20°C - 60°C (-4°F - 140°F)
Operating Relative Humidity Range
  • 10% - 85% (non-condensing)
Non Operating Relative Humidity Range
  • 10% - 95% (non-condensing)

Power Supply
Optional 60W/84W, DC-DC Power Adapter or DC/DC Power converter board
Certification
  • N/A

Regulatory (Power Supply)
Power Supply Safety / EMC
  • CCC
  • CE/EMC
  • FCC
  • TUV/CB
  • UL/CUL
Parts List
Standard Parts List
  Part Number Qty Description
Part(s) MCP-260-10101-0B 1 CSE-101S I/O Shield for X10SBA
Part(s) MCP-270-10102-0B 1 Chassis base for CSE-101S
Part(s) MCP-290-10101-0B 1 Chassis
Part(s) MCP-290-10107-0B 1 CSE-101S HDD bracket
Fan(s) FAN-0170L4 1 40x40x10 mm, 7K RPM, SC101S Chassis Fan
Front Panel FPB-FP101S 1 Front panel for CSE-101S with Power and reset button
Optional Parts List
  Part Number Qty Description
Cable CBL-0296L • - 9" 4 pin fan extension cord, for fan guide pin at 1&3 or 1&4
Chassis parts MCP-290-10108-0B - Dual system tray for Mini-ITX system
IO shield MCP-260-10105-0B - CSE-101S I/O Shield for X11SBA /w COM
MCP-260-10102-0B - CSE-101S I/O Shield for A1SAi And A1SRi
MCP-260-10104-0B - CSE-101S I/O Shield for H9SKV
Power Adapter MCP-250-10117-0N • - 60W DC power adapter with US power cord 18AWG 6ft
MCP-250-10122-0N - 84W DC power adapter with US power cord 18AWG 6ft
Servers (for CSE-101S)
SYS-E200-8B SYS-E200-9B SYS-E200-9AP
