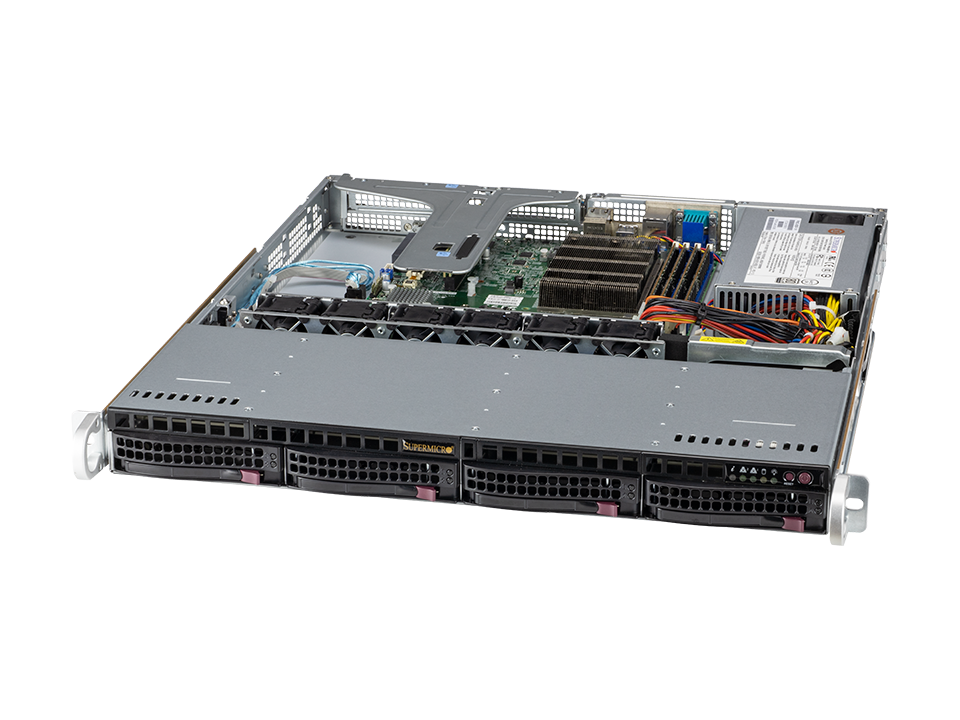

SYS-510T-M

Key Applications
- Web/Hosting Application
- Email/Firewall/Print Server
- General Purpose

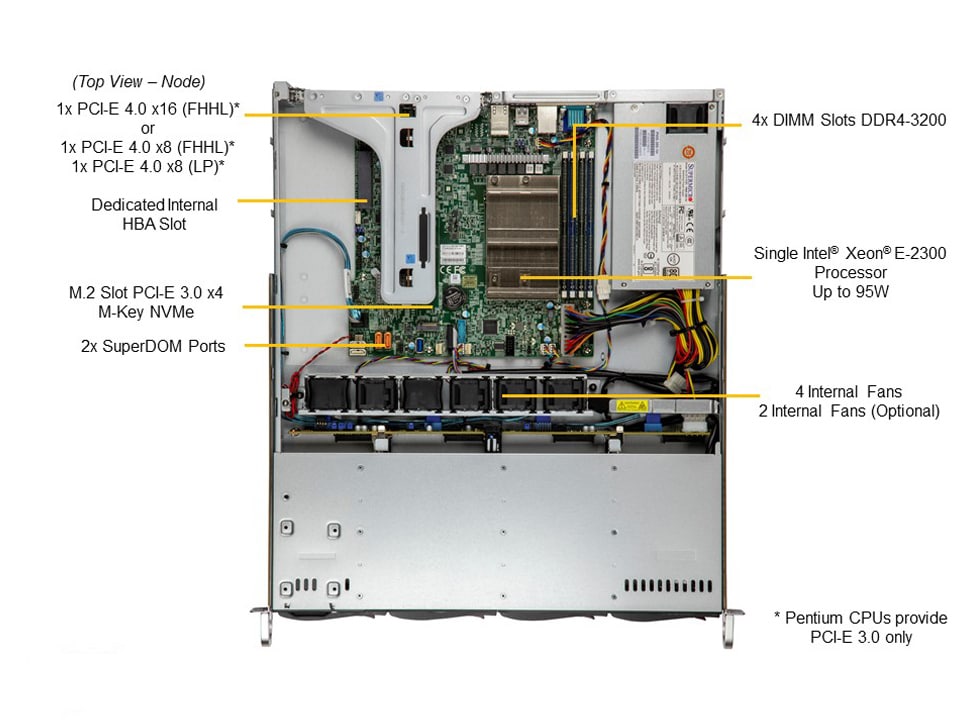

Key Features

  1. Single Socket H5 (LGA-1200) supports Intel® Xeon® E-2300 series, Intel® Pentium® processors
  2. 4 DIMMs; Up to 128GB of DDR4 ECC UDIMM memory with speeds of up to 3200MHz
  3. 1 PCI-E 4.0 x16 or 2 PCI-E 4.0 x8 (FHHL);
    1 Dedicated Internal HBA slot
  4. Intel® Ethernet Controller i210 2x 1GbE RJ45
  5. 4x Hot-swap 3.5" SATA3 drive bays, SAS3 w/ additional SAS controller card; Onboard 1x NVMe M.2
  6. Single Platinum 350W Power Supply
Specifications
Product SKUs
SYS-510T-M
  • SuperServer SYS-510T-M (Black)

Motherboard


Super X12STH-SYS

Processor
CPU
  • Single Socket H5 (LGA 1200)
  • Support Intel® Xeon® E-2300 series Processors and 10th Gen. Pentium® Processors
  • Support CPU TDP 95W
Cores
  • Up to 8C/16T; Up to 16MB Cache

System Memory
Memory
  • Memory Capacity: 4 DIMM slots
  • Up to 128GB: 4x 32 GB DRAM
  • Memory Type: 3200/2933/2666MHz ECC DDR4 UDIMM
Memory Voltage
  • 1.2 V
Error Detection
  • Yes

On-Board Devices
SATA
  • SATA3 (6Gbps); RAID 0/1/5/10 support (Port 0-5)
Chipset
  • Intel® C256
Network Connectivity
  • 2x 1GbE BaseT with Intel® i210
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

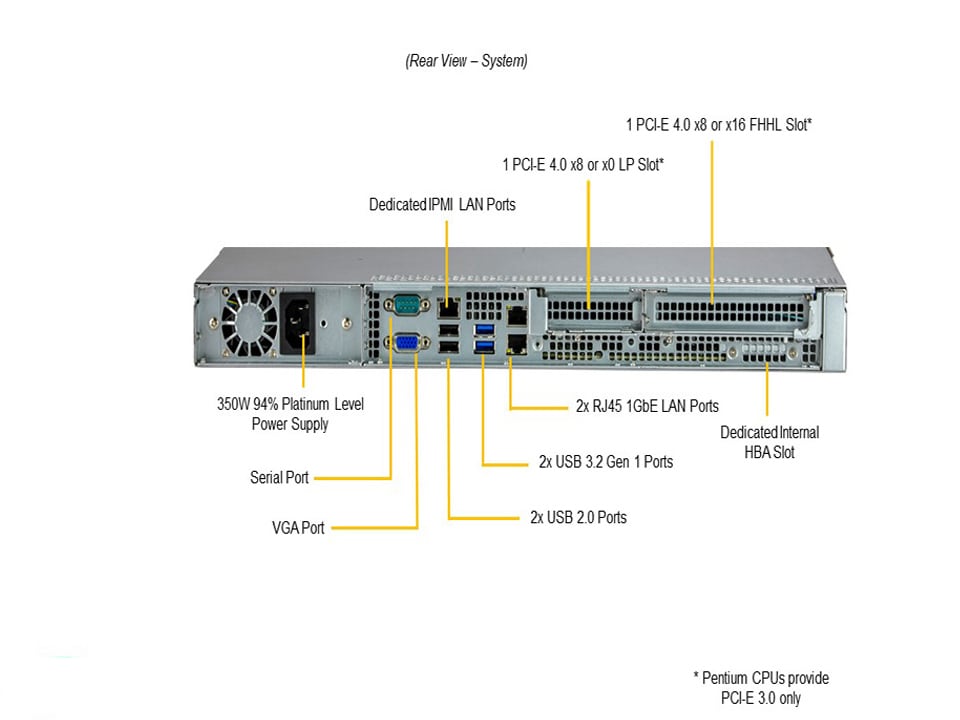

Input / Output
SATA
  • 8 SATA (6Gbps) port(s)
LAN
  • 1 RJ45 Dedicated IPMI LAN port
  • 2 RJ45 1GbE LAN ports
USB
  • 5 USB 3.2 Gen 1 port(s) (2 headers; 2 rear; 1 Type A)
  • 6 USB 2.0 port(s) (4 headers; 2 rear)
Video
  • 1 VGA port(s)
Serial Port
  • 2 COM Port(s) (1 header; 1 rear)
DOM
  • 2 SuperDOM (Disk on Module) port with built-in power

System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM

Management
Software
Power Configurations
  • ACPI/APM Power Management

PC Health Monitoring
CPU
  • 6 + 2 + 1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-813MF2TS-350RCBP

Dimensions and Weight
Height
  • 1.7" (43mm)
Width
  • 17.2" (437mm)
Depth
  • 19.98" (507mm)
Package
  • 8.5" (H) x 24" (W) x 29.5" (D)
Weight
  • Net Weight: 17.6 lbs (8 kg)
  • Gross Weight: 30.4 lbs (13.8 kg)
Available Color
  • Black

Front Panel
Buttons
  • Power On/Off
  • System Reset
LEDs
  • Device Activity
  • LAN 1 Activity
  • LAN 2 Activity
  • Power status
  • System information

Expansion Slots
PCI-Express (PCI-E)
  • Slot 1: PCIe 4.0 x16 or x8 (FHHL)
  • Slot 2: PCIe 4.0 x0 or x8 (LP) [Auto Switch with Slot 1]
  • Slot 3: Dedicated Internal HBA Slot


  • (Pentium CPUs provide PCI-e 3.0 only.)

Drive Bays / Storage
Drive Bays
  • 4x 3.5" SATA drive bays
M.2
  • 1x PCI-E 3.0 x 4
  • M-key, 2280, 22110
Peripheral Bays
  • 2x 2.5" drive bays

System Cooling
Fans
  • 2 AOC cooling Fan(s) (optional)
  • 4 middle cooling PWM 40x40x28mm Fan(s)

Power Supply
1U 350W Multi-output, Platinum level, W100xL180xH40mm,RoHS/REACH
Total Output Power
  • 350W
Dimension

(W x H x L)
  • 100 x 40 x 180 mm
AC Input
  • 350W: 100-240Vac / 2.5A-5A / 50-60Hz
+12V
  • Max: 29A / Min: 0.5A
5V SB
  • Max: 3A / Min: 0A
Certification   Platinum Level




  [ Test Report ]

Operating Environment
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)


Parts List
Parts List - (Items Included)


Part Number

Qty

Description

Motherboard / Chassis MBD-X12STH-SYS

CSE-813MF2TS-350RCBP
1

1
Super X12STH-SYS Motherboard

1U Chassis
Backplane BPN-SAS3-815TQ 1 1U 4-Port 12Gbps Backplane Support 4x3.5
Cable 1 CBL-0296L 1 9" 4 PIN FAN PWS EXTENSION CORD, PBF
Cable 2 CBL-SAST-0811 1 MINI SAS HD-4 SATA (RA),12G,INT,50/50/60/70,70CM SB,30AWG
Air Shroud MCP-310-81307-0B 1 Mylar Air Shroud for SC813MF2/SC113MF_RCB with X12STH
Manual MNL-2419-QRG 1 510T-M/MR Quick Reference Guide
Riser Card Proprietary Riser Card 1 1U RHS Standard Riser card with one PCI-E 4.0 X16 and one PC
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Heatsink / Retention Proprietary Heatsink 1 Proprietary 1U Passive CPU HS, Rocket Lake (SKT-H5 LGA-1200)
*Power Supply PWS-350-1H 1 1U Single AC-DC 350W Platinum Level, multiple output power supply (180mm)
*Cable 3 CBL-0071L 1 ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
*Cable 4 CBL-PWCD-0160-IS 1 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
*Peripheral Drive1 CSE-PT93L-B 1 Black DVD dummy cover for SC813, 813M, 815, PBF-RoHS
*FAN 1 FAN-0154L4 4 40x40x28 mm, 22.5K RPM, SC813MF Middle Cooling Fan,RoHS/REACH
*Front Panel FPB-FP813-D 1 Front control board dual color for SC815,SC813M (C)
*Drive Tray(s) MCP-220-00075-0B 4 Black gen 5.5 hot-swap 3.5“ HDD tray
*Rear Window MCP-240-00196-0N 1 Non-C Rear window Assy for SC813MF2_RCB Single PWS
*Rail Set MCP-290-00102-0N 1set Outer rail, quick-release type, 25.6" to 33.05"
*Rail Set MCP-290-00108-0N 1set Inner rail, front, short, quick-release type
*Rail Set MCP-290-00110-0N 1set Inner rail, extension (quick) for 1U 17.2
*Fan Holder MCP-320-00060-0N 1 Slim Fan tray for six 40x28 fans in SC813M (for X11DPL-i 12"x10.15")
*Parts MCP-340-00001-01 2 Dummy fan 40x28mm
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
  Part Number Qty Description
3.5" to 2.5" Converter Tray(s) MCP-220-00043-0N • - Hot-swap Gen-4 3.5" to 2.5" HDD tray, Black
Add-on Card for additional M.2 AOC-SLG3-2H8M2 - Standard LP, PCI-E 3.0 x8, supports 2x NVMe/SATA M-Key M.2 Modules; RAID 0,1
CacheVault BTR-L3-00099-02 + MCP-240-81305-0N (For S3908) 1 CacheVault for Broadcom 3908 with SuperCap mounting bracket for internal fixed location
BTR-CV3108-U1 + MCP-240-81305-0N (For S3108) 1 CacheVault for Broadcom 3108 with SuperCap mounting bracket for internal fixed location
Cooling Fan(s) FAN-0154L4 • - 40x40x28 mm, 22.5K RPM, Middle Cooling Fan
DVD-ROM / DVD-RW DVM-TEAC-DVD-SBT5 1 TEAC slim DVD-ROM SATA drive
DVM-TEAC-DVDRW-SBT5 1 PHILPS slim DVD-RW SATA drive
DVD-ROM Accessory MCP-220-81502-0N • 1 Slim SATA DVD mounting kit
Front Bezel CSE-PTFB-813-02B 1 Black Front Bezel w/ Round Venting Holes
CSE-PTFB-813LB 1 Black Front Bezel
Hot-swap 2.5" kit (DVD slot) MCP-220-81506-0N • 1 Single 2.5" SAS3 (12Gb/s) hot swap in slim DVD form factor
Hot-swap 2.5" kit (FDD slot) MCP-220-81504-0N • 1 Single 2.5" SAS3 (12Gb/s) hot swap in slim FDD form factor
Inlet Thermal Sensor MCP-280-00034-0N 1 Universal Thermal sensor kit with 40cm I2C cable
Software SFT-DCMS-Single
DataCenter Management Package (per node license) consists of:
  • OOB Management package capabilities provided by SFT-OOB-LIC
  • Centralized Management Console licenses for health monitoring, power management and firmware upgrades
  • RESTful API support to integrate server management into existing management infrastructure (roadmap Q1’15)
  • Advanced Power Management licenses to manage power on heterogeneous server vendor products
  • Remote Software installation support
  • Remote debug assistance directly from product engineers

Software tools: SSM, SPM, SUM',ABOVE,ol_width=750,ol_border=1,ol_cellpad=6);">SFT-DCMS-Single
1 DataCenter Management Package (per node license)
Storage Control Card and Cable(s) AOC-S3908L-H8iR-16DD + 1x CBL-SAST-1275A-100 1 Standard LP, 8 internal ports (12Gb/s) PCI-E 4.0 x8, 16HDD; RAID 0, 1, 5, 6, 10, 50, 60
AOC-S3108L-H8iR-16DD 1 Standard LP, 8 Internal ports (12Gb/s) PCI-E 3.0 x8, 16HDD; RAID 0, 1, 5, 6, 10, 50, 60
AOC-S3008L-L8I 1 Standard LP, 8 internal ports (12Gb/s) PCI-E 3.0 x8, 63HDD; RAID 0, 1, 10
Storage Control Card and Cable(s) (HBA) AOC-S3808L-L8IT + 1x CBL-SAST-1275A-100 1 Standard LP, 8 internal ports (12Gb/s) PCI-E 4.0 x8, 122HDD; HBA
AOC-S3008L-L8E 1 Standard LP, 8 internal ports (12Gb/s) PCI-E 3.0 x8, 122HDD; HBA
TPM AOM-TPM-9671H-O 1 TPM 1.2, horizontal form factor
AOM-TPM-9670H-O 1 TPM 2.0, horizontal form factor
