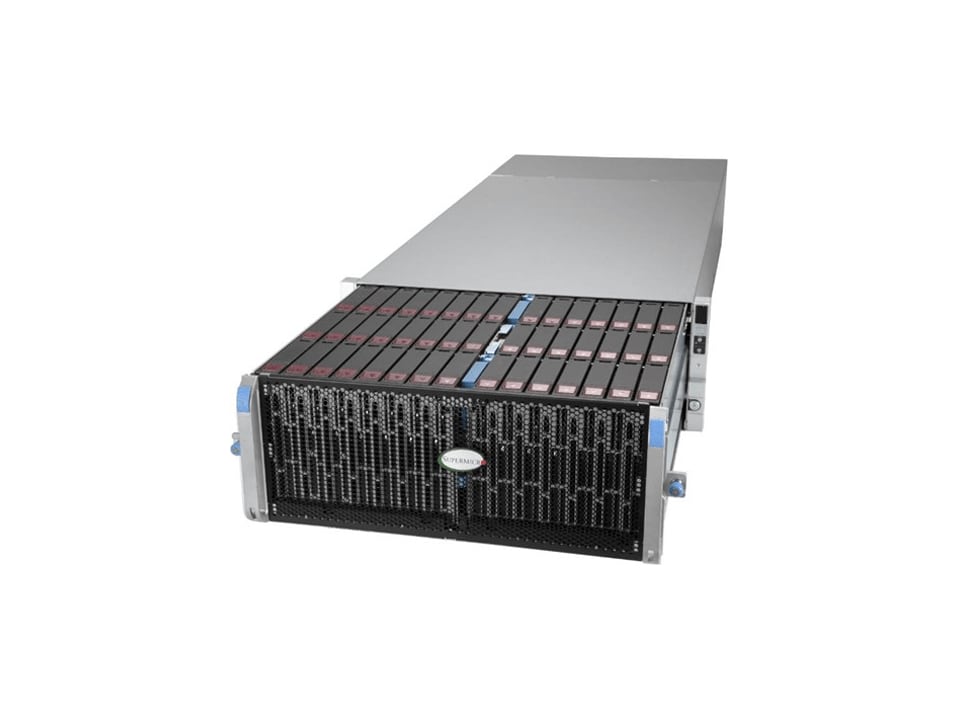

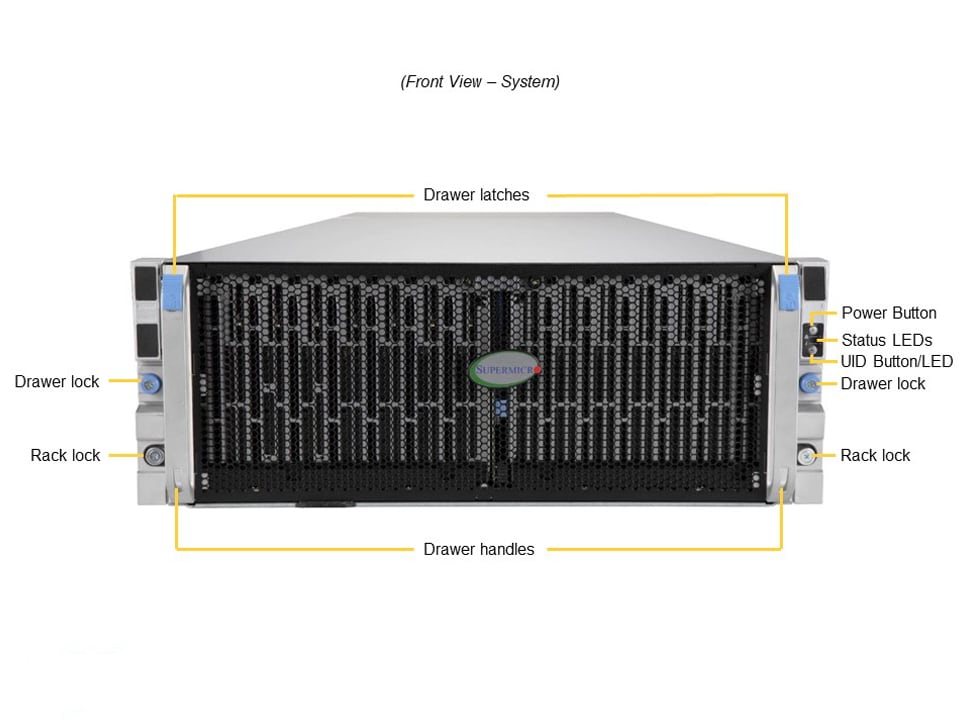

SSG-640SP-E1CR90

Key Applications
- Big Data & Analytics, Data Lake
- HPC and AI/ML Workloads
- Telco & Cloud Service Providers
- Financial Services & Healthcare Image Archives
- Content Repositories
- Government Data Protection



Key Features

  1. 16 ECC DDR4-3200: LRDIMM/RDIMM
  2. 3 x PCI-E 4.0 x16 HHHL PCI-E slots
  3. 90 3.5"/2.5" Hot-swap SAS3/SATA3 drives, 2x Fixed slim SATA SSD, 2x NVMe M.2 (form factor: 2280 and 22110)
  4. 6 x 8cm hot-swap counter-rotate redundant PWM cooling fans
  5. 2600W Redundant Power Supplies Titanium Level (96%)
  6. Drive Controller support via Broadcom® 3916 or 3616
    Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
Specifications
Product SKUs
SSG-640SP-E1CR90
  • SuperServer SSG-640SP-E1CR90 (Black)

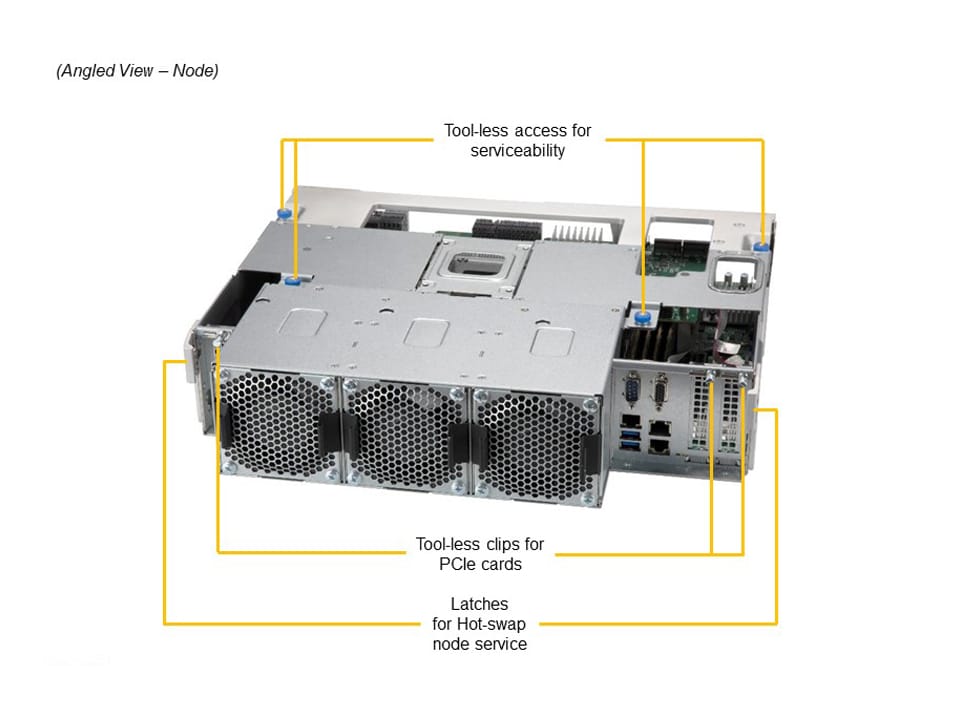

Motherboard


Super X12DSC-6

Processor
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
  • Support CPU TDP 120-205W
Cores
  • Up to 36C/72T; Up to 54MB Cache

System Memory
Memory
  • Memory Capacity: 16 DIMM slots
  • Up to 4TB: 16x 256 GB DRAM
  • Memory Type: 3200MHz ECC DDR4 RDIMM;LRDIMM
Memory Voltage
  • 1.2 V
Error Detection
  • ECC

On-Board Devices
Chipset
  • Intel® C621A
Network Connectivity
  • 2x 10GbE BaseT with X550
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input / Output
LAN
  • 1 RJ45 Dedicated IPMI LAN port
  • 2 RJ-45 10Gbase-T ports
USB
  • 2 USB 3.0 port(s) (2 Rear_USB)
Video
  • 1 VGA port(s)
Serial Port
  • 1 COM Port(s) (1 rear)
DOM
  • 2 SuperDOM (Disk on Module) port

System BIOS
BIOS Type
  • AMI 128MB SPI Flash EEPROM

Management
Software
Power Configurations
  • ACPI Power Management
  • Power-on mode for AC power recovery

PC Health Monitoring
CPU
  • 4+1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 4U Rackmount
Model
  • CSV-947HTS-R2K63P

Dimensions and Weight
Height
  • 7"
Width
  • 17.6"
Depth
  • 42.1"
Package
  • 29.92" (H) x 35.82" (W) x 53.15" (D)
Weight
  • Net Weight: 150 lbs (68.04 kg)
  • Gross Weight: 240 lbs (108.86 kg)
Available Color
  • Black


Expansion Slots
PCI-Express (PCI-E)
  • Slot 1: PCI-E 4.0 x16 LP
  • Slot 2: PCI-E 4.0 x16 LP
  • Slot 3: PCI-E 4.0 x16 LP

Drive Bays / Storage
Hot-swap
  • 90x 3.5" hot-swap SATA3/SAS3 drive bays (4x 2.5" NVMe dedicated)
  • 2x 2.5" 7mm drive bays
M.2
  • 2 M.2 NVMe

System Cooling
Fans
  • 6 Heavy Duty 8cm Fan(s)

Power Supply
2600W Redundant Power Supplies with PMBus
Dimension

(W x H x L)
  • 73.5 x 40 x 265 mm
AC Input
  • 2600W: 200-240Vac / 15A Max
DC Input
  • 2600W: 200-240Vdc For CQC Only/ 15A Max / 50-60Hz
+12V
  • Max: 216A / Min: 0A (11.4Vdc-12.6Vdc) (12V output)
Output Type
  • 25 Pairs Gold Finger Connector
Certification   Titanium Level




  [ Test Report ]

Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity:
       5% to 95% (Non-Condensing)


Parts List
Parts List - (Items Included)


Part Number

Qty

Description

Motherboard / Chassis MBD-X12DSC-6

CSV-947HTS-R2K63P
1

1
Super X12DSC-6 Motherboard

4U Chassis
Backplane BPN-ADP-30SAS3-1 3 Adapter board between Expander and HDD BPN for CSE-947H,RoHS
Backplane BPN-ADP-947SB 1 BPN-ADP-947SB,RoHS
Backplane BPN-SAS3-826TQ-B2B 1 2-port 2U SAS3 12Gbps backplane, support up to 2x 2.5-inch SAS3/SATA3 HDD/SSD
Backplane BPN-SAS3-947EB 6 HDD Backplane (15-slot) for CSE-947H 60/90-bay top load chassis/server.,RoHS
Backplane BPN-SAS3-947EL 3 SAS3 expander module for top-load 60/90-bay single/twin/SBB CSE-947 project,RoHS
Backplane BPN-SAS3-947SB 1 Midplane for topload CSE-947 60/90-bay SBB/Twin/single-node system,RoHS
Cable 1 CBL-0066 1 39" 9 PIN COM PORT EXTENSION CABLE
Cable 2 CBL-0082L 1 Y SPLIT SATA POWER ADAPTER, PB FREE
Cable 3 CBL-0212L 1 4-PIN POWER CABLE FOR SC808 S809, ST TO RA, 20CM
Cable 4 CBL-0234L 1 Y CABLE FOR 4-PIN HDD
Cable 5 CBL-0473L 4 21CM 30AWG SATA CBL, S-S
Cable 6 CBL-CDAT-0841 1 2X4F to 2X4F,PH2.54,round SGPIO cable,81CM,28AWG,RoHS
Cable 7 CBL-OTHR-1062-25 1 CBL,VGA,DP15/F, to 2X7F/P2.0,25CM,RoHS
Cable 8 CBL-OTHR-1100 1 90-single,SlimlineULP x12 to SlimlineLP x8,FFC,100 OHM
Cable 9 CBL-PWCD-0376-IS 2 PWCD,US,IEC60320 C19 TO C20,940mm (3ft),14AWG,15A,250V,Black
Cable 10 CBL-PWEX-1100-25 1 MicroFit 2x2F/PH3.0 to 1x4F/PH5.08,25cm,10A/pin,16AWG,R
Cable 11 CBL-PWEX-1265 2 2x4,PH3.0 to 2x4,PH4.2,20CM,16AWG,9.5A/pin,RoHS
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0078PR 2 2U Proprietary Passive CPU Heat Sink for X12 Generation Hype-E Series Servers
*Power Supply PWS-2K63A-1R 2 1U 2600Wredundant single outpupowersupply with wide range in
*Cable 12 CBL-PWEX-1101 1 [NR]PH3.0,F to PH3.0,M,2x4P TO PH3.0,M,2x8P,6A/p,30.6/43.6CM,18AWG
*Cable 13 CBL-PWEX-1102 1 [NR]PH3.0,F toPH3.0,M,2x4P TO PH3.0,M,2x8P,6A/p,35.3/48.5CM,18AWG
*Cable 14 CBL-PWEX-1103 1 [NR]PH3.0,F to PH3.0,M,2x4P TO PH3.0,M,2x8P,6A/pin,18AWG,72.4/85.5CM
*Front Panel FPB-FP827BR 1 2U BigTwin front control board - right side
*Drive Tray(s) MCP-220-94601-0N 90 SC946ED 3.5" / 2.5" tool-less HDD tray
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
  Part Number Qty Description

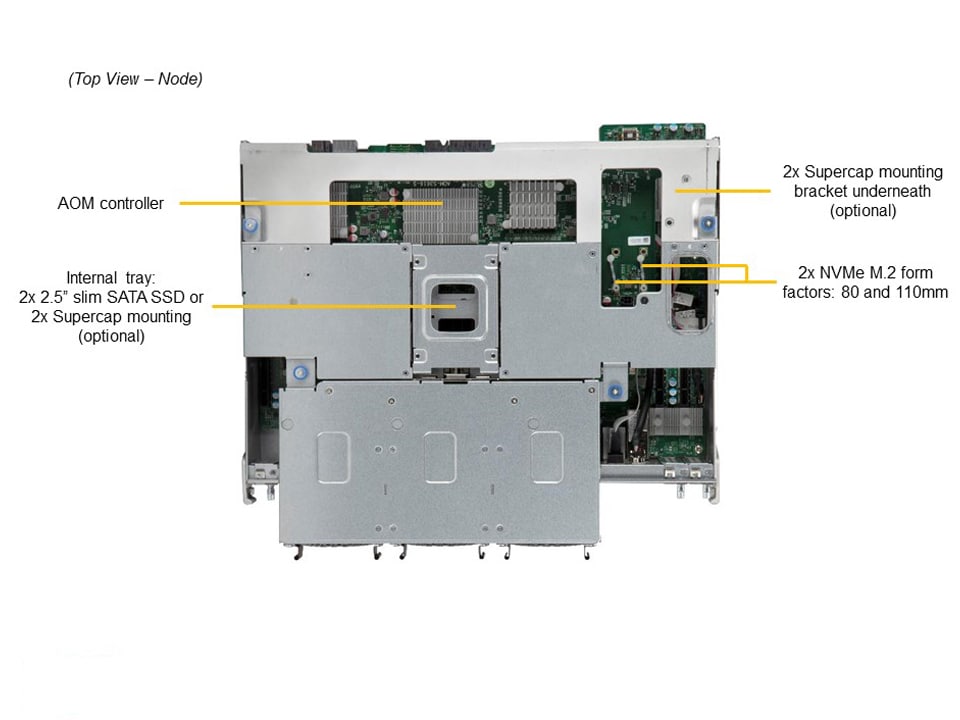

HBA option AOM-S3616-S-O 1 Storage 3616 controller for serviceable 60/90 bay systems. This has two 3616 controller chips, PCI switch, 2x NVMe M.2 (Form factors: 2280 and 22110), RoHS (One per Node)
HW RAID option CBL-SAST-1300-100 1 NCSI,2X Slimline x8 (STR) to 2X Slimline x8 STR,14Z14cm (One per Node)
AOM-SADPT-S 1 Bypass card for 60/90 bay systems
AOC-S3916L-H16IR 1 AOC with SAS3916 controller (U3) and 240PD RAID Key (U39)
Network Cards AOC-S40G-I2Q - Standard LP 2-port 40GbE controller, Intel Fortville XL710
AOC-S25G-M2S - Standard LP, 2x 25GbE SFP28, Mellanox ConnectX-4 LX EN
More - AOC Compatibility Matrix (Select Storage & X12)
AOC-SGP-I2 - Standard LP 2-port GbE, Intel 82575
NVME kit (only 1 is needed) CBL-SAST-1049 2 [NR] SLIMLINE SAS (LE) to SLIMLINE SAS, INT, 30.2CM,85 OHM,R
CBL-PWEX-1093-26 1 [NR]MicroFit,2x2, PH3.0,F to MicroFit,2x2,PH3.0,F,26CM,10A/p
MCP-220-00178-0B 4 2.5 thin profile drive tray, Orange tab (for hotswap NVMe drive), for SC119UH
BPN-NVMe4-228N-S4 1 2U 4-Slot SFF BPN supports 4x NVMe Storage Devices
SuperCap Kit (Need Both items) BTR-CVPM05 1 Broadcom 05-50039-00 CacheVault w/ 24" Remote Extender(Optional)
MCP-240-94711-0N 1 SC947 MB Node Supercap holder module,RoHS (Optional)
TPM Module AOM-TPM-9671V - SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor
AOM-TPM-9670V - SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
