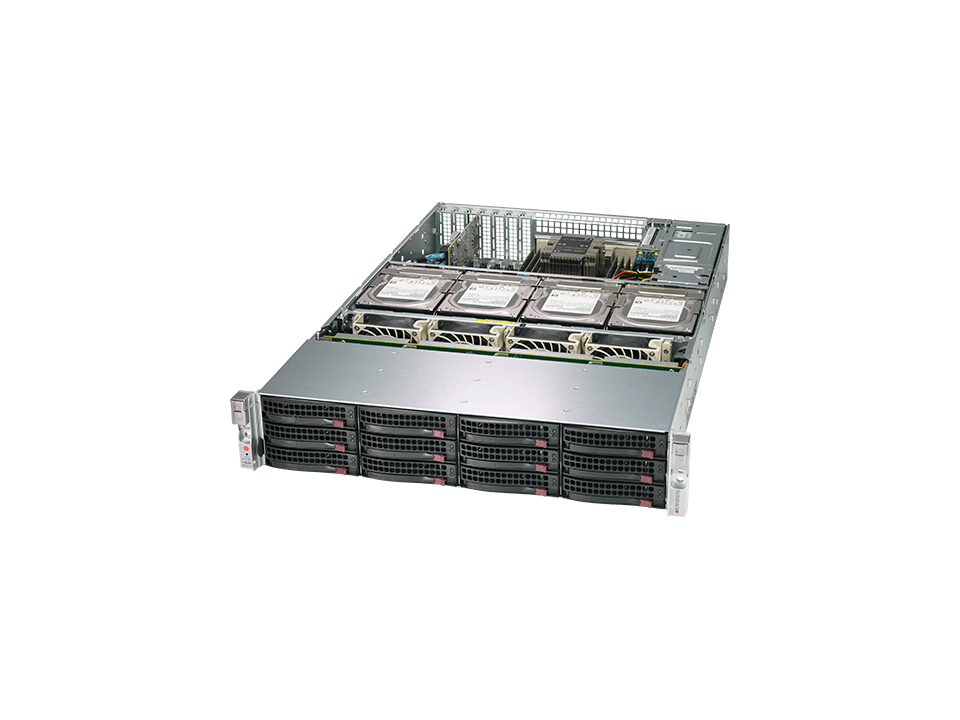

SSG-620P-ACR16L

Key Applications
- Enterprise Server
- iSCSI SAN
- HPC, Data Center
- Database Processing & Storage
- Corporate Database



Key Features

  1. Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
  2. 16 ECC DDR4-3200: LRDIMM/RDIMM + 2 Intel® Optane™ Persistent Memory Dedicated Slots
  3. 2x 10Gbe
  4. 16x 3.5" hot-swap hybrid SATA/SAS drive bays (4 NVMe Hybrid Ports); 2 Rear SATA Slots; onboard 1 M.2 NVMe
  5. 3 heavy duty fans with optimal fan speed control; 1 Air Shroud
  6. 1600W Redundant Power Supplies Titanium Level (96%)
  7. Broadcom® 3816 Controller
Specifications
Product SKUs
SSG-620P-ACR16L
  • SuperServer SSG-620P-ACR16L (Black)

Motherboard


Super X12DPi-NT6

Processor
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
  • Support CPU TDP 120-270W
Cores
  • Up to 38C/96T; Up to 57MB Cache

System Memory
Memory
  • Memory Capacity: 16 DIMM slots
  • Up to 4TB: 16x 256 GB DRAM
  • Memory Type: 3200MHz ECC DDR4 RDIMM;LRDIMM;DCPMM
Note
  • 2 extra DIMM slots available for Intel® Optane™ DCPMM @ 2666MHz
Memory Voltage
  • 1.2 V
Error Detection
  • ECC

On-Board Devices
Chipset
  • Intel® C621A
Network Connectivity
  • 2x 10GbE BaseT with Intel® X550
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input / Output
LAN
  • 1 RJ45 Dedicated IPMI LAN port
  • 2 RJ-45 10Gbase-T ports
USB
  • 4 USB 3.0 port(s) (4 Rear_USB)
Video
  • 1 VGA port(s)
Serial Port
  • 1 COM Port(s) (1 rear)
DOM
  • 2 SuperDOM (Disk on Module) port

System BIOS
BIOS Type
  • AMI 128MB SPI Flash EEPROM

Management
Software
Power Configurations
  • ACPI Power Management
  • Power-on mode for AC power recovery

PC Health Monitoring
CPU
  • 4+1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U
Model

Dimensions and Weight
Height
  • 3.5" (89mm)
Width
  • 17.2" (437mm)
Depth
  • 27.75" (705mm)
Package
  • 10.8" (H) x 25.9" (W) x 39.3" (D)
Weight
  • Net Weight: 41.5 lbs (18.82 kg)
  • Gross Weight: 62 lbs (28.12 kg)
Available Color
  • Black

Front Panel
Buttons
  • Power On/Off
LEDs
  • HDD activity
  • Network activity
  • Power status
  • System information (overheat/UID)

Expansion Slots
PCI-Express (PCI-E)
  • Slot 2: PCI-E 4.0 x16 LP
  • Slot 3: PCI-E 4.0 x16 LP
  • Slot 4: PCI-E 4.0 x16 LP
  • Slot 5: PCI-E 4.0 x16 LP
  • Slot 6: PCI-E 4.0 x8 LP
Note
  • PCIe slot 1 is occupied by the Storage Controller

Drive Bays / Storage
Hot-swap
  • 16x 3.5" hot-swap SATA3/SAS3 drive bays (4x 3.5" NVMe hybrid)
M.2
  • 1 M.2 NVMe

System Cooling
Fans
  • 4 Heavy Duty 8cm Fan(s)

Power Supply
1600W Redundant Power Supplies with PMBus
Dimension

(W x H x L)
  • 73.5 x 40 x 203 mm
AC Input
  • 1000W: 100-127Vac / 50-60Hz
  • 1600W: 200-240Vac / 50-60Hz
+12V
  • Max: 83A / Min: 0A (100Vac-127Vac)
  • Max: 133A / Min: 0A (200Vac-240Vac)
12V SB
  • Max: 2.1A / Min: 0A
Output Type
  • AC-Input
Certification   Titanium Level




  [ Test Report ]

Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity:
       5% to 95% (Non-Condensing)


Parts List
Parts List - (Items Included)


Part Number

Qty

Description

Motherboard / Chassis MBD-X12DPi-NT6

CSE-829HE1C4-R1K62LPB
1

1
Super X12DPi-NT6 Motherboard

2U Chassis
Add-on Card / Module AOC-S3816L-L16IT-O 1 16 int 12Gb/s SAS3 ports, x8 Gen4, HBA - LP, 122 HDD w/ exp,RoHS
Backplane BPN-SAS3-829HA-A4 1 4-port internal SAS3 12Gbps backplane, support up to 4x 3.5-inch SAS3/SATA3 HDD/SSD
Backplane BPN-SAS3-LA26A-N12 1 2U 12-Slot LFF Backplane Supports 12 x SAS3/SATA3/NVMe4 Storage Devices with 1x(2x4) + 4x(1x4) power connectors, co-lay with BPN-SAS3-LA26A-N12,HF,RoHS
Cable 1 CBL-0277L 2 HDD POWER CABLE (BIG 4 PIN; 32CM), PBF
Cable 2 CBL-CDAT-0728 1 4 Pin to 4 Pin I2C Cable, 65cm, 26AWG, 4 Wires, Pinout 1-1
Cable 3 CBL-PWEX-0645 2 Big 4 Pin Male to Big 4 Pin Female, Power Extension 15cm
Cable 4 CBL-SAST-1250A-100 1 SlimSAS (x8 ST to x4 STR and miniS)80/50CM,100OHM,RoHS
Cable 5 CBL-SAST-1281-100 1 Slimline x8 (STR) to 2x Slimline x4 (STR),80CM,100 OHM,
Parts MCP-260-00042-0N 1 STD I/O shield for X9 socket R server MB with Gasket.
Air Shroud MCP-310-82935-0B 1 Mylar 1U air shroud for SC829H X12
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0077PW 1 1U Passive CPU HS 92mm Width for X12 Whitley Platform
Heatsink / Retention SNK-P0078AP4 1 2U Active CPU Heat Sink for X12 Generation Building Block Solutions
*Power Supply PWS-1K62A-1R 2 AC-DC 1600W, Titanium Level, Redundancy, 1U, DC Output: +12V and +12Vs, 203 x 73.5 x 40 mm, AC Input: 90 - 264 VAC/47-63Hz, PMBus 1.2 with DSP controller,HF,RoHS/REACH
*Power Distributor PDB-PT829H-2824 1 2U standard output with 24Pin PDB support up to
*Cable 6 CBL-CDAT-0607 1 [NR] FRONT CNTL,20 TO 20 PIN, P0.5, FFC,FLAT, 23.5CM, STD
*Cable 7 CBL-PWCD-0160-IS 2 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
*Cable 8 CBL-PWEX-1078 4 PWEX,FAN,1X4/P2.5 TO 1X4/P2.54,20CM,22AWG,5A/PIN,RoHS
*FAN 1 FAN-0166L4 4 80x80x38 mm, 13.5K RPM, Optional Middle Cooling Fan for 2U Ultra Series Servers (Hot-swappable Version of FAN-0162L4)
*FAN 2 FAN-0206L4 4 80x80x38 mm, 13.5K RPM, Middle Cooling Fan for 2U and above Servers
*Front Panel FPB-TB826-T 1 Chassis transfer board for SC826
*Drive Tray(s) MCP-220-00075-0B 12 Black gen 5.5 hot-swap 3.5“ HDD tray
*Drive Tray(s) MCP-220-82902-0N 1 Middle tray plate for SC829H
*Drive Tray(s) MCP-220-82903-0N 4 Internal mid tray with handle for SC829H
*Rail Set MCP-290-00053-0N-01 1 36"; Rail set for Auto-latch, quick/quick, 2, 3U 17.2";W
*Drive Tray(s) MCP-290-82607-0N 1 826B/216B rear dummy cover for 2 X 2.5
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
  Part Number Qty Description
Bezel MCP-210-82601-0B • - Black Front Bezel for 826 chassis
Converter Tray MCP-220-00043-0N • - Black hot-swap gen 4 3.5 to 2.5 HDD tray
IPASS Cable CBL-SAST-0388L-02 • - 30AWG Ipass to 4SATA 90/90/70/70CM W/ 90CM SB
Network Cards More - AOC Compatibility Matrix (Select Storage & X12)
AOC-SGP-I2 - Standard LP 2-port GbE, Intel 82575
AOC-S40G-I2Q - Standard LP 2-port 40GbE controller, Intel Fortville XL710
AOC-S25G-M2S - Standard LP, 2x 25GbE SFP28, Mellanox ConnectX-4 LX EN
NVMe Support CBL-SAST-1248-85 2 [NR] Slimline x8 (LE) to Slimline x8 (STR),46CM,85 OHM,RoHS
MCP-220-00116-0B • 4 Black gen-5.5 tool-less 3.5-to-2.5 NVME converter drive tray,RoHS/REACH
Power Cord CBL-PWCD-0300-IS - PWCD,US,IEC60320 C14 TO C13,6FT,18AWG,RoHS/REACH
CBL-PWCD-0579 - Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V
CBL-PWCD-0579-1 - Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V
Toolless Converter Tray MCP-220-00118-0B • - Black gen-5.5 tool-less 3.5-to-2.5 converter drive tray,RoHS/REACH
TPM Module AOM-TPM-9671V - SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor
AOM-TPM-9670V - SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
