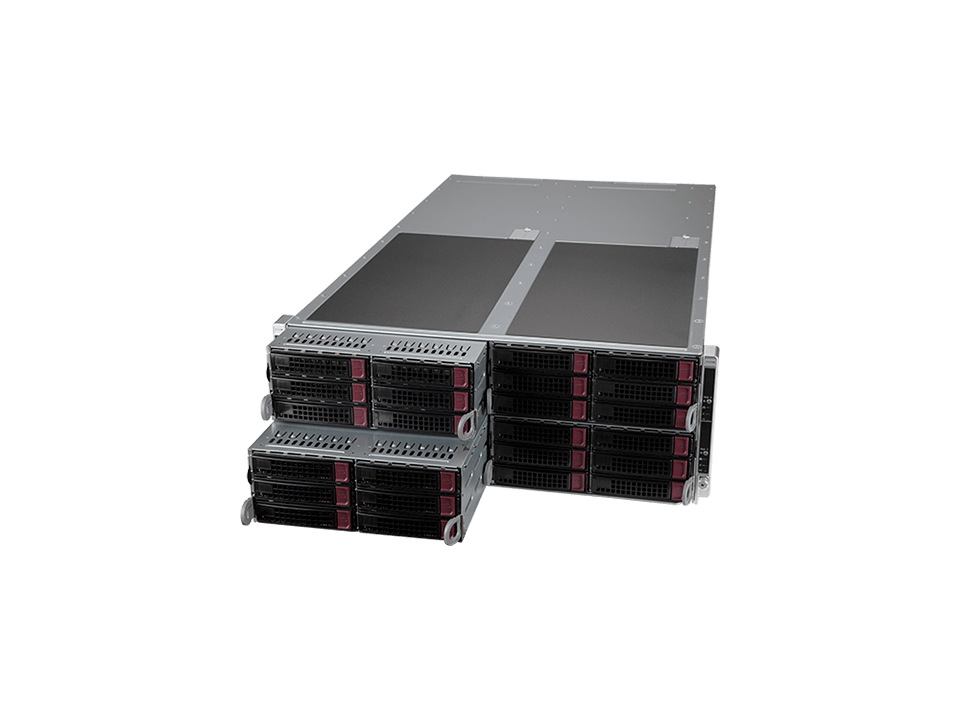

SYS-F619H6-FT

Key Applications
- Hyperscale / Hyperconverged
- HPC and Big Data
- Data Center Enterprise Applications
- Scale Out Storage
- Telco Data Center
- Virtualization Server


Key Features
8 Hot-pluggable System Nodes in a 4U form factor.
Each node supports:
1. Single AMD EPYC™ 7003/7002 Series Processor
(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
2. Up to 2TB ECC 3DS LRDIMM,
up to DDR4-3200MHz; 8 DIMM slots
3. Expansion slots: 1 PCI-E 4.0 x16 (LP Riser),
1 PCI-E 4.0 x16 (for AIOM)
4. AIOM Network card,
1 dedicated IPMI LAN port
5. 1 VGA, 2 USB 3.0 ports
6. 6 Hot-swap 2.5" drive bays:
   2 NVMe/SATA3,
   4 SATA3 (optional NVMe with additional cables)
M.2 Interface: 4 SATA/PCI-E 4.0 x4
M.2 Form Factor: 2242, 2260, 2280, 22110
M.2 Key: M-Key
7. 3x 4cm 17.6K RPM middle fans
8. 2200W Redundant Power Supplies
Titanium Level (96%)
   (Full redundancy based on
   configuration and application load)

Specifications
Product SKUs
AS -F1114S-RNTR
  • A+ Server F1114S-RNTR (Black)
Motherboard

Super H12SSFR-AN6
Processor/Chipset (per Node)
CPU
  • Single AMD EPYC™ 7003/7002 Series Processor
    (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
  • Socket SP3
  • Supports CPU TDP / cTDP up to 280W*
Cores
  • Up to 64 Cores
Note * Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization
System Memory (per Node)
Memory Capacity
  • 8 DIMM slots
  • Supports up to 2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs
  • 8-channel memory bus
Memory Type
  • DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
Memory Sizes
  • 8GB, 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • System on Chip
SATA
  • SATA3 (6Gbps)
Network Controllers
  • Flexible networking via AIOM (not included, must add 1 per node)
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
  • ASPEED AST2600 BMC
Input / Output (per node)
LAN
  • Flexible networking via AIOM
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports (rear)
VGA
  • 1 VGA port
Others
  • 1 COM port
  • 1 TPM 2.0 header
System BIOS
BIOS Type
  • 256Mb SPI Flash EEPROM with AMI BIOS
Management
Software
Power Configurations
  • ACPI Power Management
PC Health Monitoring
CPU
  • Monitors for CPU Cores
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 4U Rackmount
Model
  • CSE-F418BC3-R2K20B
Dimensions and Weight
Width
  • 17.63" (448mm)
Height
  • 6.96" (177mm)
Depth
  • 29" (737mm)
Package
  • 28.3" (W) x 15.0" (H) x 42.4" (D)
Weight
  • Net Weight: 150 lbs (68.04 kg)
  • Gross Weight: 200 lbs (90.71 kg)
Available Colors
  • Black
Front Panel (per node)
Buttons
  • Power On/Off button
  • UID button
LEDs
  • Power status LED
  • Hard drive activity LED
  • Network activity LEDs
  • Information LED (UID, Fan failure, Overheat)
Expansion Slots (per node)
PCI-Express
  • 1 PCI-E 4.0 x16 (Low-profile riser)
  • 1 PCI-E 4.0 x8 (Internal RAID AOC)
Drive Bays (per node)
Hot-swap
  • 2 Hot-swap 2.5" NVMe/SATA3 and 4 SATA3 (optional NVMe with additional cables)
M.2
  • M.2 Interface: 4 SATA/PCI-E 4.0 x4
  • M.2 Form Factor: 2242, 2260, 2280, 22110
  • M.2 Key: M-Key
Backplane
1 SATA/NVMe backplane
System Cooling (per node)
Fans
  • 3x 4cm 17.6K RPM middle fans

Power Supply
2200W Redundant Power Supplies with PMBus
Total Output Power and Input
  • 1200W with Input 100-127Vac
  • 1800W with Input 200-220Vac
  • 1980W with Input 220-230Vac
  • 2090W with Input 230-240Vac
  • 2200W with Input 220-240Vac (for UL/cUL use only)
  • 2090W with Input 230-240Vdc (for CCC only)
AC Input Frequency
  • 50-60Hz
Dimension
(W x H x L)
  • 76 x 40 x 336 mm
+12V
  • Max: 100A / Min: 0A (100-127Vac)
  • Max: 150A / Min: 0A (200-220Vac)
  • Max: 165A / Min: 0A (220-230Vac)
  • Max: 174.17A / Min: 0A (230-240Vac)
  • Max: 183.3A / Min: 0A (220-240Vac)
5VSB
  • Max: 1A / Min: 0A
Output Type
  • Backplanes (gold finger)
Certification   Titanium Level
  [ Test Report ]
Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
    -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)

Parts List
Parts List - (Items Included)

Part Number
Qty
Description
Motherboard / Chassis MBD-H12SSFR-AN6
CSE-F418BC3-R2K20B
8
1
Super H12SSFR-AN6 Motherboard
4U Chassis
Backplane BPN-ADP-X11DPFR 8 Power distribution board
Backplane BPN-NVME4-F418-B6S6 8 1U 6-Slot SFF Backplane Supports 6xSAS3/SATA3/NVMe4 Storage Devices,HF,RoHS
Cable 1 CBL-0486L 16 2x2 to 2x2 15cm Power Cable HF
Cable 2 CBL-OTHR-1211-28 8 2x10pin (PH 1) to 2x10pin (PH 1),11CM,28AWG,1A/pin,RoHS
Cable 3 CBL-PWCD-0900 4 PWCD,US/EU/Canada/China/Australia,IEC60320 C14 TO C13,4FT,17
Cable 4 CBL-SAST-1223-85 8 Slimline x8 (LE) to 2x Slimline x4 (STR),22/22CM,85 OHM
Cable 5 CBL-SAST-1247-100 16 Slimline x4 (LE) to MiniSAS HD x4 (STR),47CM,100 OHm,Ro
Heatsink / Retention SNK-P0062P 8 1U Passive CPU Heat Sink for AMD Socket SP3 Processors
Riser Card RSC-S-6G4 8 1U LHS Standard riser card with one PCI-E 4.0 x16 slot,HF,Ro
Power Supply PWS-2K20A-1R 4 1U 2200W Redundant, Titanium, 76(W) X 40(H) X 336(L) mm
Backplane BPN-PDB-X12DPFR 2 FatTwin 4U 4-Node PDB with LCMC for RIO Platform
Rail Set MCP-290-41803-0N 1 Fat twin F418 / F424 Static Rail set support 28-33.5 inch depth rail,RoHS/REACH,PBF
Software SFT-OOB-LIC
OOB Management Package (per node license) consists of:
• (X10 or Later Only) OOB System Checks such as Asset Information, System Utilization, Sensor Data
• (X10 or Later Only) BIOS and BMC System Event Log management
• BIOS Management functions such as in-band/OOB BIOS updates, provision BIOS config and DMI settings
• BMC Management functions such as OOB BMC F/W updates and provisioning F/W settings
• (X10 or Later Only) TPM provisioning
• Scripting capabilities to mount virtual media

Software tools: SUM
',ABOVE,ol_width=750,ol_border=1,ol_cellpad=6);" target="_blank">SFT-OOB-LIC
•
1 OOB Management Package (per node license)
Optional Parts List
Part Number Qty Description
Cable(s) for Additional NVMe Support CBL-SAST-1223-85 2 Slimline x8 (LE) to 2x Slimline x4 (STR),22/22CM,85 OHM
Software SFT-DCMS-Single
DataCenter Management Package (per node license) consists of:
• OOB Management package capabilities provided by SFT-OOB-LIC
• Centralized Management Console licenses for health monitoring, power management and firmware upgrades
• RESTful API support to integrate server management into existing management infrastructure (roadmap Q1’15)
• Advanced Power Management licenses to manage power on heterogeneous server vendor products
• Remote Software installation support
• Remote debug assistance directly from product engineers

Software tools: SSM, SPM, SUM',ABOVE,ol_width=750,ol_border=1,ol_cellpad=6);">SFT-DCMS-Single
1 DataCenter Management Package (per node license)
