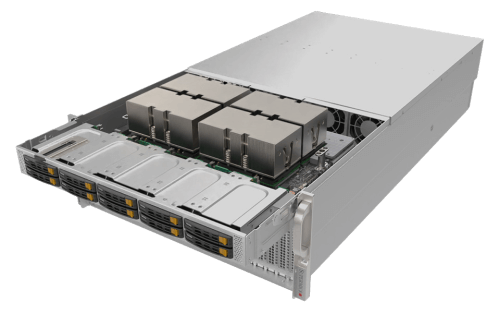

AS -4124GO-NART+

Key Applications
- High Performance Computing
- AI / Deep Learning


Key Features
1. Supports NVIDIA® HGX™ A100 8-GPU;
Highest GPU communication using NVIDIA® NVLINK™ v3.0 + NVIDIA® NVSwitch™;
NICs for GPUDirect RDMA (1:1 GPU Ratio)
2. Supports HGX A100 8-GPU 40GB (HBM2) or 80GB (HBM2e)
3. Dual AMD EPYC™ 7003/7002 Series Processors
(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
4. 8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs

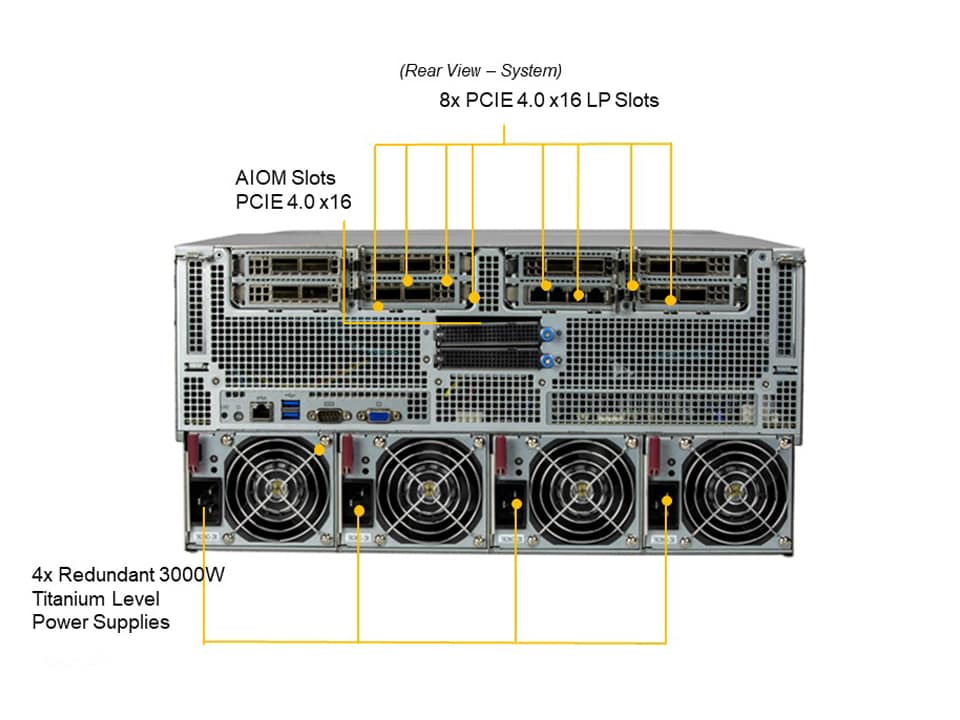

5. 8 PCI-E 4.0 x16 via PCI-E switch;
1 PCI-E 4.0 x 16 LP and 1 PCI-E 4.0 x8 LP via CPUs;
AIOM Support

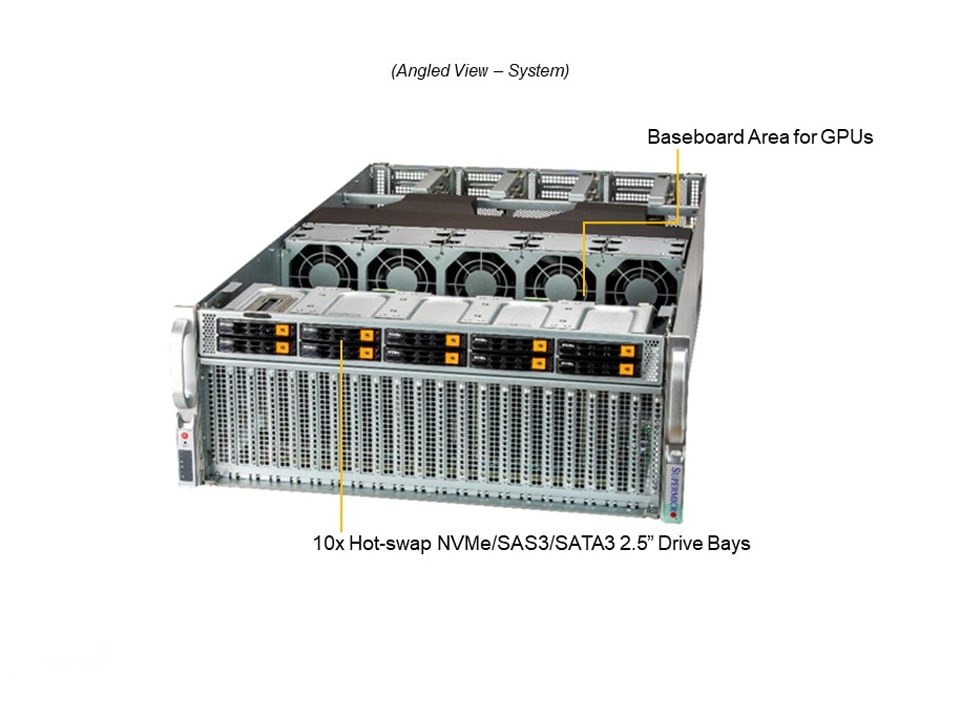

6. 6 Hot-swap U.2 NVMe 2.5" drive bays
(4 via PCI-E switch, 2 via CPU)
Up to 10 U.2 NVMe 2.5" drives available with an optional 4 drive bays at rear of system
7. Flexible Networking via AIOM,
1 dedicated IPMI LAN Port
8. 4 Hot-swap heavy-duty cooling fans
9. 3000W (2+2) Redundant Titanium Level (96%+) Power Supplies
(full redundancy based on configuration and application load)

Specifications
Product SKUs
AS -4124GO-NART+
  • A+ Server 4124GO-NART+
Motherboard

Super H12DGO-6
Processor/Cache
CPU
  • Dual AMD EPYC™ 7003/7002 Series Processors
    (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
  • Socket SP3
  • Supports CPU TDP up to 280W*
Cores
  • Up to 128 Cores (64 per CPU)
Note * Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization
GPU
Supported GPUs
  • HGX A100 8-GPU 40GB/80GB SXM4 Multi-GPU Board
CPU-GPU Interconnect
  • PCI-E Gen 4 x16 Switch CPU-to-GPU Interconnect
GPU-GPU Interconnect
  • NVIDIA® NVLink™ with NVSwitch™ GPU-GPU Interconnect
System Memory
Memory Capacity
  • 32 DIMM slots
  • Up to 8TB 3DS ECC DDR4-3200MH RDIMM/LRDIMM
Memory Type
  • 3200MHz ECC DDR4 RDIMM/LRDIMM
On-Board Devices
Chipset
  • System on Chip (SoC)
SATA
  • SATA3 (6Gbps)
Network Controllers
  • Provided via AIOM
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
  • ASPEED AST2600 BMC
Input / Output
SATA
  • 4 SATA3 (6Gbps) ports
LAN
  • Provided by AIOM
  • 1 RJ45 Dedicated IPMI LAN port
USB

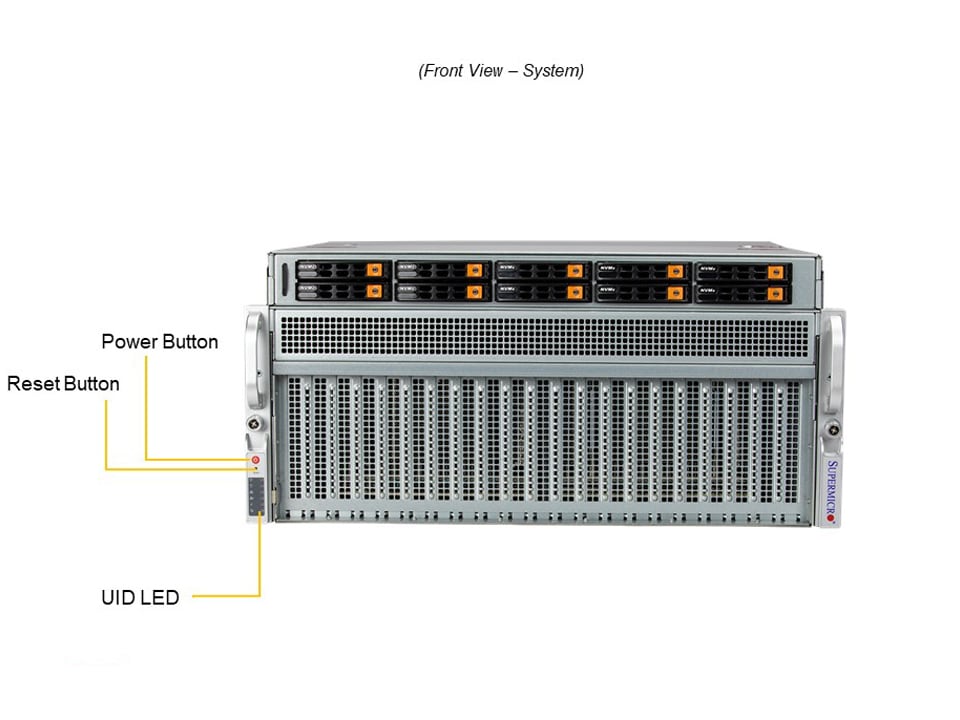

  • 2 USB 3.0 ports (front)
Video
  • 1 VGA Connector (front)
COM Port
  • 1 COM port (header)
System BIOS
BIOS Type
  • AMI 256Mb SPI Flash ROM
Management
Software
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 4U Rackmountable
  • Rackmount Kit (MCP-290-00180-0N)
Model
  • CSE-438G
Dimensions
Height
  • 6.9" (174mm)
Width
  • 17.6" (446mm)
Depth
  • 35.4" (900mm)
Package
  • 29.5" (750mm) H x 27.4" (695mm) W x 44.9" (1140mm) D
Weight
  • Net Weight: 166.0 lbs (75.3 kg)
  • Gross Weight: 225.0 lbs (102.1 kg)
Drive Bays / Storage
Hot-swap
  • 6 hot-swap U.2 NVMe 2.5" drive bays (4 via PCI-E switch, 2 via CPU, SATA/NVMe Hybrid or SAS with optional HBA)
    (up to 10 hot-swap U.2 NVMe 2.5" available)
M.2
  • 2 M.2 NVMe
Expansion Slots
PCI-Express
  • 8 PCI-E 4.0 x16 via PCI-E switch - supporting HGX A100 8-GPU's 1:1 connection to 8 NICs
  • 1 PCI-E 4.0 x16 LP and 1 PCI-E 4.0 x8 LP via CPUs
System Cooling
Fans
  • 4 x Hot-swap 11.5K RPM heavy duty fans

Power Supply
3000W Redundant Titanium Level Power Supplies
Dimension
(W x H x L)
  • 106.5 x 82.4 x 203.5 mm
Certification Titanium Level
Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
    -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)

Parts List
Parts List - (Items Included)

Part Number
Qty
Description
Motherboard / Chassis MBD-H12DGO-6-P
CSE-438G
1
1
Super H12DGO-6 Motherboard
CSE-438G Chassis
Add-on Card / Module AOM-438G-AIOM-P 1 AIOM adapter card for CSE-438G,RoHS
Add-on Card / Module AOM-438G-FAN-P 1 Fan adaptor for SC1018G,RoHS
Add-on Card / Module AOM-DGO-IO-P 1 I/O riser card for 4U 8 SXM4 GPU system AS -4124GO-NART,RoHS
Add-on Card / Module AOM-SXM4-IO-P 1 PCIE Gen4 switch board for 4U 8 SXM4 GPU system,RoHS
Air Shroud MCP-310-43802-0B 1 Motherboard CPU Air Shroud for CSE-438g/AMD/H12DGO-6 Plastic
Backplane BPN-GPU-438G 1 Midplane for 4U AMD/Intel Delta GPU system,RoHS
Backplane BPN-NVME4-F418-B6S6 1 1U 6-Slot SFF Backplane Supports 6xSAS3/SATA3/NVMe4 Storage Devices,HF,RoHS
Cable 1 CBL-0223L 4 BLADE PWS POWER CORD C-19 TO C-20, PBF
Cable 2 CBL-GNZ2-12105F-85 1 GENZ 2C x16 (STR) to 2x Slimline x4 (STR),FFC,FOLD,105.
Cable 3 CBL-GNZ2-1282FLP-85 1 2x SlimlineLP x8 (STR), 4x Slimline x4 to 3x SlimlineLP
Cable 4 CBL-PWEX-1114-30 1 Microfit,2x4, PH3.0 to Microfit,2x4, PH3.0,30CM,9A/pin,
Cable 5 CBL-PWEX-1117-40 2 MiniFit,2x2,PH4.2,F to MiniFit,2x2,PH4.2,F,40CM,8A/pin,
Cable 6 CBL-SAST-1265A-100 1 Slimline x4 (STR) to MiniSAS HD x4 (STR),65CM,100 OHM,R
FAN 1 FAN-0196L4-1 4 92x92x76 mm, 13.3K-12.2K RPM Counter-rotating Fan, w/ SMC Fa
Power Supply PWS-3K02G-2R 4 2U 3000W, Titanium efficiency for GPU 54V(2430W)+12V(1100W)
Riser Card RSC-G-66G4 1 1U LHS GPU Riser card with two PCI-E 4.0 x16 slots,RoHS
Heatsink / Retention SNK-P1043V 2 1U standard AMD vapor chamber Heat Sink (Standard H12 DELTA 1U heatsink)
Software SFT-OOB-LIC
OOB Management Package (per node license) consists of:
• (X10 or Later Only) OOB System Checks such as Asset Information, System Utilization, Sensor Data
• (X10 or Later Only) BIOS and BMC System Event Log management
• BIOS Management functions such as in-band/OOB BIOS updates, provision BIOS config and DMI settings
• BMC Management functions such as OOB BMC F/W updates and provisioning F/W settings
• (X10 or Later Only) TPM provisioning
• Scripting capabilities to mount virtual media

Software tools: SUM
',ABOVE,ol_width=750,ol_border=1,ol_cellpad=6);" target="_blank">SFT-OOB-LIC
•
1 OOB Management Package (per node license)
Optional Parts List
Part Number Qty Description
GPU Baseboard(s) * GPU-NVTHGX-A100-SXM4-8 - NVIDIA DELTA (HGX-2 Next) GPU Baseboard, 8 A100 40GB SXM4
GPU-NVTHGX-A100-SXM4-88 - NVIDIA DELTA (HGX-2 Next) GPU Baseboard, 8 A100 80GB SXM4
* Note: Required as Complete System
Backplane BPN-NVME4-HS119N-S4R - 1U 4-Slot SFF Backplane Supports 4 x SAS3/SATA3/NVMe4 Storage Devices,HF,RoHS
Cable(s) CBL-PWEX-1133-35 - (MicroHi to MicroFit) 2x2,PH3.0, 35cm,10A/pin,16AWG,RoHS
CBL-SAST-1224LP-85 - SlimlineLP x8 (STR) to SlimlineLP x8 (RE),24CM,85 OHM
Network Card(s) AOC-613106A-VDAT - Mellanox MCX613106A-VDAT PCIe 2-port 200GbE QSFP56 Gen4x16 CX-6. HF, RoHS.
AOC-623105AN-VDAT - ConnectX-6 Dx 200GbE Ethernet Adapter Card, single port QSFP56 PCIe 4.0 x16, RoHS
AOC-653105A-ECAT - Mellanox MCX653105A-ECAT PCIe 1-port IB-HDR100 & 100GbE QSFP56 Gen3.0/4.0 x16 CX-6 VPI. HF, RoHS.
AOC-653105A-HDAT - Mellanox ConnectX-6 VPI 200Gb/s InfiniBand & Ethernet Adapter Card single port, QSFP56, PCIe 3.0/4.0 x16, RoHS.
AOC-653106A-ECAT - ConnectX-6 VPI Card. 100Gb/s InfiniBand & Ethernet Adapter Card, dual ports, QSFP56, PCIe 3.0/4.0 x16. HF, RoHS.
AOC-653106A-HDAT - Mellanox ConnectX-6 VPI 200Gb/s InfiniBand & Ethernet Adapter Card dual ports, QSFP56 PCIe 3.0/4.0 x16. HF, RoHS
AOC-653436A-HDAB - Mellanox MCX653436A-HDAB OCP3.0 2-port HDR/200GbE QSFP56 Gen 3/4x6 CX-6 VPI with custom bracket, RoHS
AOC-683105AN-HDAT - Nvidia MCX683105AN-HDAT PCIe 1-port HDR 200G QSFP56 Gen 3.0/4.0x16 Cx-6 DE, RoHS
AOC-A100G-B2CM-O - AIOM Dual Port 100GbE QSFP28, based on Broadcom BCM57508 with 0.5U Bracket,RoHS
AOC-A100G-M2CM-O - AIOM 2-port 100GbE QSFP28, Mellanox CX-6 DX w/ 0.5U bracket,RoHS
AOC-A25G-B2SM-O - AIOM 2-port 25GbE SFP28, Broadcom BCM57414 with 0.5U bracket,RoHS
AOC-A25G-M2SM-O - AIOM 2-port 25GbE SFP28, Mellanox CX-6 LX w/ 0.5U height bracket,RoHS
AOC-AG-I2M-O - AIOM Dual-Port 1GbE RJ45, based on i350-AM2 with 0.5U Bracket, RoHS
AOC-ATG-I2SM-O - AIOM Dual-Port 10GbE SFP+, based on X710-BM2 with 0.5U Bracket,RoHS
AOC-ATG-I2TM-O - AIOM 2-port 10GBase-T, Intel X550, 0.5U height bracket, RoHS
AOC-ATG-I2T2SM-O - AIOM Quad-Port 10GbE (2x RJ45 & 2x SFP+) based on Intel X710-TM4 with 0.5U Bracket,RoHS
AOC-ATG-I4SM-O - AIOM Quad-Port 10GbE SFP+, based on Intel XL710-BM1 with 0.5U Bracket,RoHS
AOC-ATGC-I2TM-O - AIOM 2-port 10GBase-T RJ45, based on Intel Carlsville X710-AT2, w/ 1U BKT,RoHS
AOC-MCX516A-CCAT - Mellanox MCX516A-CCAT PCIe 2-port 100GbE QSFP28 Gen3.0 x16 CX-5. HF, RoHS
AOC-MCX555A-ECAT - CX-5 VPI EDR IB adapter & 100GbE,1p, QSFP28, PCIe3x16
AOC-S100G-B2C-O - Standard low-profile card based on Broadcom BCM57504. Two QSFP28 100Gbps Ethernet port PCIe 4.0 x 16 host interface, RoHS
AOC-S100GC-I2C-O - Standard PCIe 4.0 x 16 dual port 100GbE with QSFP28 based on Intel E810-CAM2,RoHS
AOC-S100G-M2C-O - Standard low-profile adapter card based on Mellanox ConnectX-4 chipset; two QSFP28 100Gpbs Ethernet ports, PCI-E 3.0 x16 host interface,RoHS
AOC-S25G-M2S-O - Standard low-profile 2-port 25GbE SFP28, based on Mellanox ConnectX-4 LX EN chipset.,RoHS
AOC-SGP-I2 - Intel® i350 AM2 2-port RJ45 (1Gb/port) Gen3 x4 Standard Low Profile
AOC-STG-B2T-O - Standard LP 2-port 10Gbase-T, Broadcom 57416,HF,RoHS
AOC-STGF-I2S-O - Intel® X710-BM2 2-port SFP+ (10Gb/port) Gen3 x8 Standard Low Profile
AOC-STGS-I2T-P - Intel® X550-AT2 2 RJ45 (10Gb/port) Gen3 x4 Standard Low Profile
AIOM Dummy Cover MCP-240-00194-0N - S-AIOM 2x2 Dummy Cover
RAID Card(s) AOC-S3008L-L8I - 8 int 12Gb/s ports, 8xGen3, IOC/IR mode - LP
AOC-S3108L-H8IR-16DD - 8 ports, 12Gb/s per port, 8 Internal, Low-profile, 16 SATA/SAS drives
AOC-S3908L-H8IR-16DD-O - 8 int 12Gb/s ports, x8 Gen4, ROC - LP, 16 HDD w/ exp,RoHS
AOC-SLG3-2H8M2-O - 2x Hybrid NVMe/SATA M.2 RAID Carrier, Standard LP,RoHS
Thin Profile Drive MCP-220-00178-0B - 2.5" thin profile drive tray, Orange tab (for hotswap NVMe drive), for SC119UH
TPM security module AOM-TPM-9665V - TPM 2.0 module with Infineon 9665, RoHS/REACH,PBF;
Global Services & Support OS4HR3/2/1
OSNBD3/2/1
-
-
3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service
Software SFT-DCMS-Single
DataCenter Management Package (per node license) consists of:
• OOB Management package capabilities provided by SFT-OOB-LIC
• Centralized Management Console licenses for health monitoring, power management and firmware upgrades
• RESTful API support to integrate server management into existing management infrastructure (roadmap Q1’15)
• Advanced Power Management licenses to manage power on heterogeneous server vendor products
• Remote Software installation support
• Remote debug assistance directly from product engineers

Software tools: SSM, SPM, SUM',ABOVE,ol_width=750,ol_border=1,ol_cellpad=6);">SFT-DCMS-Single
1 DataCenter Management Package (per node license)
