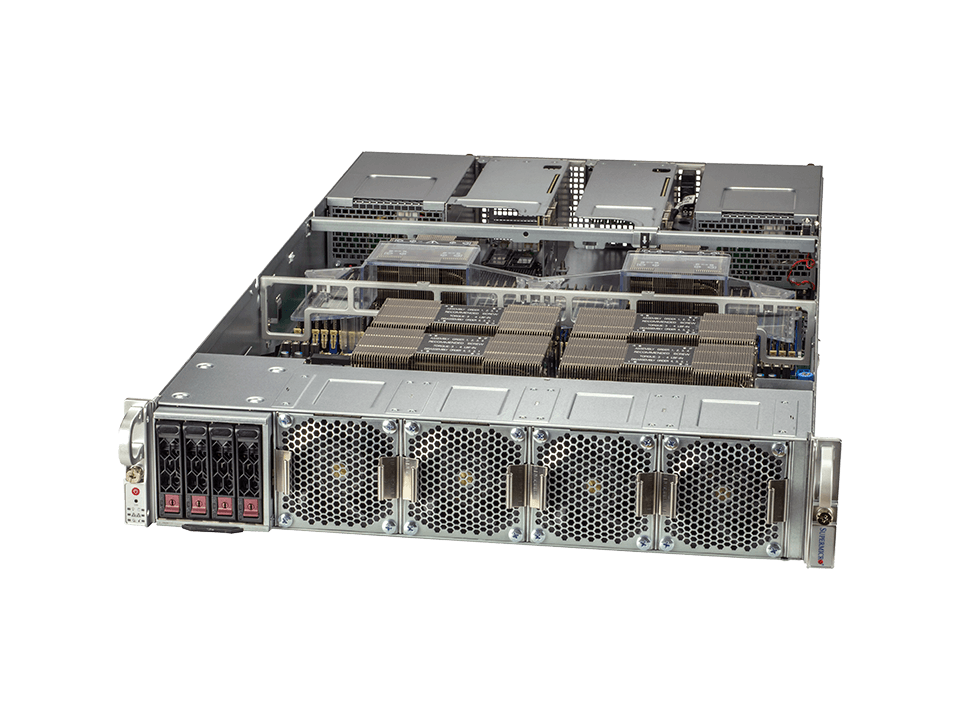

SYS-220GQ-TNAR+

Key Applications
- High Performance Computing
- AI/Deep Learning Training



Key Features

  1. Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
  2. Intel® C621A Chipset
  3. 32 DIMM Slots;
    Up to 8TB DRAM;
    Up to 8TB Intel® Optane™ Persistent Memory;
    3200/2933/2666 ECC DDR4 LRDIMM;RDIMM;
    Intel® Optane™ Persistent Memory 200 series
    Up to 4x PCI-E Gen 4.0 X16 LP Slots
  4. Direct connect PCI-E Gen4 Platform with NVIDIA® NVLink™ v3.0 up to 600GB/s interconnect
    High density 2U system with NVIDIA® HGX™ A100 4-GPU
    Highest GPU communication using NVIDIA® NVLINK™
    Supports HGX A100 4-GPU 40GB (HBM2) or 80GB (HBM2e)
  5. Flexible networking options
  6. 2 M.2  NVMe/SATA via Intel® C621A PCH chipset (for boot drive only)
    4x 2.5" Hot-swap (SATA/SAS/NVMe) drive bays
  7. 4 heavy duty fans with optimal fan speed control
  8. 2x 3000W redundant Titanium level power supplies
Specifications
Product SKUs
SYS-220GQ-TNAR+
  • SuperServer SYS-220GQ-TNAR+ (Silver Body)

Motherboard


Super X12DPG-QR

Processor
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
  • Support CPU TDP 270W
Cores
  • Up to 40C/80T; Up to 60MB Cache

GPU
Supported GPU
  • HGX A100 4-GPU SXM4 Multi-GPU Board
CPU-GPU Interconnect
  • PCI-E 4.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
  • NVIDIA® NVLink™

System Memory
Memory
  • Memory Capacity: 32 DIMM slots
  • Up to 8TB: 32x 256 GB DRAM and 16x 512 GB PMem
  • Memory Type: 3200/2933/2666MHz ECC DDR4 RDIMM/LRDIMM
  • Intel® Optane™ persistent memory 200 series
Memory Voltage
  • 1.2 V
Error Detection
  • ECC

On-Board Devices
SATA
  • SATA3 (6Gbps); RAID 0/1/5/10 support
Chipset
  • Intel® C621A
Network Connectivity
  • 2x 10GbE BaseT with Intel® X540-AT2
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input / Output
Video
  • 1 VGA port(s)

System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM

Management
Software
  • OOB Management Package (SFT-OOB-LIC )
  • Redfish API
  • IPMI 2.0
  • SSM
  • Intel® Node Manager
  • SPM
  • KVM with dedicated LAN
  • SUM
  • NMI
  • Watch Dog
  • SuperDoctor® 5
Power Configurations
  • ACPI Power Management
  • Power-on mode for AC power recovery

PC Health Monitoring
CPU
  • 7 +1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-228GTS-R3K02P

Dimensions and Weight
Height
  • 3.5" (89mm)
Width
  • 17.2" (437mm)
Depth
  • 32.7" (830.3mm)
Package
  • 11" (H) x 22.5" (W) x 45.5" (D)
Weight
  • Net Weight: 67.5 lbs (30.6 kg)
  • Gross Weight: 86.5 lbs (39.2 kg)
Available Color
  • Silver Body

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Hard drive activity LED
  • Network activity LEDs
  • Power status LED
  • System Overheat & Power Fail LED

Expansion Slots
PCI-Express (PCI-E)
  • Slot 1: PCI-E 4.0 x16 LP
  • Slot 2: PCI-E 4.0 x16 LP (enabled upon request during order) **
  • Slot 3: PCI-E 4.0 x16 LP
  • Slot 4: PCI-E 4.0 x16 LP
Note
  • ** 2.5" NVMe drive support and Slot 2's PCI-E 4.0 x16 LP are two features that uses the same PCI-E resource. Only one feature can be enabled and only during assembly.

Drive Bays / Storage
Hot-swap
  • 4x 2.5" hot-swap NVMe/SATA/SAS drive bays
M.2
  • 2 M.2 NVMe OR 2 M.2 SATA3

System Cooling
Fans
  • 4 heavy duty fans with optimal fan speed control

Power Supply
2x 3000W Redundant Power Supplies, Titanium Level
Dimension

(W x H x L)
  • 106.5 x 82.4 x 203.5 mm
AC Input
  • 2880W: 200-207Vac / 15.7A-16A / 50-0Hz
  • 3000W: 207.1-240Vac / 14.5A-16A / 50-0Hz
  • 3000W: 240Vdc / 15A Max (CQC only)
Output Type
  • Backplanes (connector)
Certification   Titanium Level




  [ Test Report ]

Operating Environment
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)


Parts List
Parts List - (Items Included)


Part Number

Qty

Description

Motherboard / Chassis MBD-X12DPG-QR

CSE-228GTS-R3K02P
1

1
Super X12DPG-QR Motherboard

2U Chassis
Add-on Card / Module AOM-228G-FAN-P 1 Fan board for SC228G,RoHS
Add-on Card / Module AOM-PCIE4-SXM4-Q-P 1 PCIe Transition board for nVidia, Redstone, GPU module,RoHS
Add-on Card / Module AOM-PIO-I2XT-P 1 AOM-PIO-I2XT
Backplane BPN-NVMe4-228N-S4 1 2U 4-Slot SFF BPN Supports 4xSAS3/SATA3/NVMe4 Storage Device
Cable 1 CBL-0223L 2 BLADE PWS POWER CORD C-19 TO C-20, PBF
Cable 2 CBL-PWEX-1092-23 1 MiniFit,2x2, P4.2,F to MiniFit,2x2, P4.2,F,23CM,10A/pin
Cable 3 CBL-PWEX-1093-36 1 MicroFit,2x2, P3.0,F to MicroFit,2x2,P3.0,F,36CM,10A/pin
Cable 4 CBL-PWEX-1094-43 1 MicroFit,2x4, P3.0,F to MicroFit,2x4,P3.0,F,43CM,9A/pin
Cable 5 CBL-PWEX-1096-43 1 Surlok 5.7MM and RA-PD 3.6MM harness,Left Exit,4AWG,43.
Cable 6 CBL-PWEX-1114-30 2 Microfit,PH3.0,(2x4F to 2x4F),30CM,9A/pin,16AWG,RoHS
Cable 7 CBL-SAST-1216LP-85 5 SlimlineLP x8 (STR) to SlimlineLP x8 (RE),16CM,85 OHM,R
Cable 8 CBL-SAST-1224LP-85 1 SlimlineLP x8 (STR) to SlimlineLP x8 (RE),24CM,85 OHM
Cable 9 CBL-SAST-1229LP-85 2 SlimlineLP X8 (STR) to SlimlineLP x8 (STR),INT,28CM,85
Cable 10 CBL-SAST-1262LP-85 6 SlimlineLP x8 (STR) to SlimlineLP x8 (STR),60CM,85 OHM,
Cable 11 CBL-SAST-1264AL4-85 2 SlimSAS (LP x8 to x8),LNRV,64cm, with 1x4 SB,85Ohm,RoHS
Cable 12 CBL-SAST-1272-100 1 Slimline x4 (STR) to Slimline x4 (STR),72CM,100 OHM,RoH
Drive Tray(s) MCP-220-00178-0B 4 2.5 thin profile drive tray, Orange tab (for hotswap NVMe drive), for SC119UH
Riser Card RSC-G-66G4 2 1U LHS GPU Riser card with two PCI-E 4.0 x16 slots,RoHS
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0078P 2 2U Passive CPU Heat Sink for X12 Generation Intel Whitley and Cedar Island Platforms
Heatsink / Retention SNK-P4006PV 4 2U Passive GPU Heat Sink for NVIDIA Redstone SXM4 Module
*Power Supply PWS-3K02G-2R 2 2U 3000W, Titanium efficiency for GPU 54V(2430W)+12V(1100W)
*Cable 13 CBL-OTHR-0794 1 VGA,DB 15pin,F to 2x8,PH2.54,10CM,30 AWG,RoHS
*FAN 1 FAN-0197L4-1 4 80x80x80 mm, 12K-11.3K RPM Counter-rotating Fan, w/ SMC Fan Board, louver for AS-2124GQ-NART (CSE-228G Chassis)
*Rail Set MCP-290-00144-1N 1 2U fixed rail set, quick release, default for 2,3U 17.6"W, 26.5-33.5
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
  Part Number Qty Description
2.5" SATA/SAS Drive Tray MCP-220-00187-0B 1 per drive 2.5 thin profile drive tray, standard color tab, for SAS / SATA drives
GPU Baseboard * GPU-NVTHGX-A100-SXM4-48 1 NVIDIA Redstone GPU Baseboard, 4 A100 80GB SXM4
GPU-NVTHGX-A100-SXM4-4 1 NVIDIA Redstone GPU Baseboard, 4 A100 40GB SXM4
GPU Baseboard Note * Required as part of Complete System - -
Network Cards (Ethernet) AOC-S25G-I2S 1 2-port SFP28 Intel XXV710 25GbE Ethernet Adapter Card, PCIe 3.0 x8
AOC-STG-I2T 1 2-port RJ45 Intel X540 10GbE Ethernet Adapter Card, PCIe 2.1 x8
AOC-S25G-M2S-O 1 2-port SFP28 Mellanox ConnectX-4 LX EN 25GbE Ethernet Adapter Card, PCIe 3.0 x8
AOC-STG-I4S 1 4-port SFP+ Intel XL710-BM1 10GbE Ethernet Adapter Card, PCIe 3.0x8
AOC-STGF-i2S-O 1 2-port SFP+ Intel X710-BM2 10GbE Ethernet Adapter Card with NC-SI function support by connector, PCIe 3.0 x8
AOC-MCX512F-ACAT 1 2-port SFP28 Mellanox ConnectX-5 EN 25GbE Ethernet Adapter Card, PCIe 3.0 x16
AOC-STG-B2T-O 1 2-port RJ45 Broadcom 57416 10GbE Ethernet Adapter Card, PCIe 3.0 x8
AOC-MCX512A-ACAT  1 2-port SFP28 Mellanox ConnectX-5 EN 25GbE Ethernet Adapter Card, PCIe 3.0 x8
AOC-STGS-i2T 1 2-port RJ45 Intel  X550-AT2 10GbE Ethernet Adapter Card, PCIe 3.0 x8
AOC-S100GC-i2C 1 2-port QSFP28 Intel Columbiaville 810-CAM2 100GbE Ethernet Adapter Card, PCIe 3.0/4.0 x16
AOC-STGN-I2S 1 2-port SFP+ Intel 82599ES 10GbE Ethernet Adapter Card, PCIe 2.0 x8
Network Cards (Ethernet/ InfiniBand) AOC-653106A-ECAT 1 2-port QSFPS6 Mellanox ConnectX-6 VPI 100Gb/s EDR InfiniBand & 100GbE Ethernet Adapter Card, PCIe 3.0/4.0 x16
AOC-653105A-ECAT 1 1-port QSFP56 Mellanox ConnectX-6 VPI 100Gb/s EDR InfiniBand & 100GbE Ethernet Adapter Card, PCIe 3.0/4.0 x16
AOC-MCX556A-ECAT 1 2-port QSFP28 Mellanox ConnectX-5 VPI 100Gb/s EDR InfiniBand & 100GbE Ethernet Adapter Card, PCIe 3.0 x16
AOC-653106A-HDAT 1 2-port QSFP56 Mellanox ConnectX-6 VPI 200Gb/s HDR InfiniBand & 200GbE Ethernet Adapter Card, PCIe 4.0 x16
AOC-653105A-HDAT 1 1-port QSFP56 Mellanox ConnectX-6 VPI 200Gb/s HDR InfiniBand & 200GbE Ethernet Adapter Card, PCIe 4.0 x16
Storage Controller Cards AOC-S3108L-H8iR-16DD 1 8 int 12Gb/s ports, 8xGen3, ROC - LP,16 HDD w/ exp
AOC-S3808L-L8iT 1 8 int 12Gb/s SAS3 ports, x8 Gen4, HBA - LP, 122 HDD w/exp
AOC-S3908L-H8IR-32DD 1 8 int 12Gb/s ports, x8 Gen4, ROC - LP, 32 HDD w/ exp,RoHS
Storage Controller Cards - Cables CBL-SAST-1285-100 1 Slimline x4 (STR) to MiniSAS HD (STR) x4,85CM,100 OHM,R (for AOC-S3108L-H8iR-16DD)
CBL-SAST-1281-100 1 Slimline x8 (STR) to 2x Slimline x4 (STR),80CM,100 OHM, (for AOC-S3908L-H8IR-32DD and AOC-S3808L-L8iT)
Storage Controller Cards - Cachevault MCP-240-00203-0N 1 Remote Mounting Board for BTR-CVPM05, Occupies single PCI-E Slot
BTR-CVPM05 1 Supercap/TFM Unit for cached data protection (optional for AOC-S3908L-H8IR-32DD)
TPM Security Module AOM-TPM-9670V-S-FIPS-P 1 AOM-TPM-9670V-S-FIPS TPM 2.0 support TAA and FIPS,RoHS
