SSG-521E-E1CR24H

Key Applications

  • Enterprise Server
  • iSCSI SAN
  • HPC, Data Center
  • Database Processing & Storage
  • Corporate Database
  • Appliance Optimized Storage Building Blocks

Key Features

  1. Single Socket E (LGA-4677) 4th Generation Intel® Xeon® Scalable processors. Up to 300W TDP.
  2. 16 ECC DDR5-4800: LRDIMM/RDIMM
  3. Two Dedicated PCIe 5.0 x16 AIOM slots (OCP 3.0 SFF compliant)
    Up to 6x PCIe 5.0 Slots (Slot #2 populated by 3908 controller by default)
  4. Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN per node
  5. 24 3.5" Hot-swap SAS3/SATA3 drives, 2x Rear SATA Slots, 4x Optional Rear NVMe Slots, 2x NVMe/SATA M.2 (form factor: 2280)
  6. 4x 8cm hot-swap counter-rotate redundant PWM cooling fans
  7. 1600W Redundant Power Supplies Titanium Level (96%)
  8. HW RAID support via Broadcom® 3908
Specifications
Product SKUs
SuperServer SSG-521E-E1CR24H (Silver)
Motherboard
Super X13SEDW-F
Processor
CPU
Note
  • Supports 120W - 300W TDP CPUs (Air Cooled)
System Memory
Memory
  • Memory Capacity: 16 DIMM slots
  • Up to 4TB: 16x 256 GB DRAM
  • Memory Type: 4800MHz ECC DDR5 RDIMM
Memory Voltage
  • 1.1 V
Error Detection
  • ECC
On-Board Devices
Chipset
  • Intel® C741
Network Connectivity
  • Via AIOM
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
LAN
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 port(s) (2 Rear_USB)
Video
  • 1 VGA port(s)
Serial Port
  • 1 COM Port(s) (1 rear)
DOM
  • 2 SuperDOM (Disk on Module) port
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • 7 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-826S3TS-R1K62P1
Dimensions and Weight
Height
  • 3.5"
Width
  • 17.2"
Depth
  • 34"
Package
  • 12" (H) x 29" (W) x 52" (D)
Weight
  • Net Weight: 52 lbs (23.59 kg)
  • Gross Weight: 74.5 lbs (33.79 kg)
Available Color
  • Silver
Front Panel
Buttons
  • Power On/Off
LEDs
  • Network activity
  • Power status
  • SSD activity
  • System information (overheat/UID)

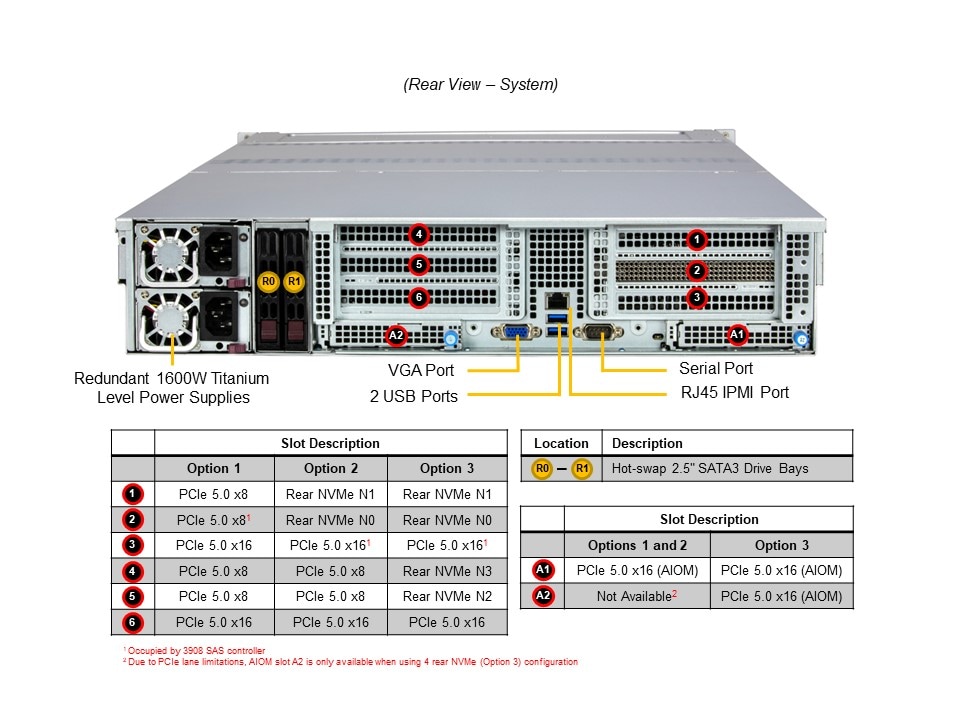

Expansion Slots
PCI-Express (PCIe)
  • 4 PCIe 5.0 x8 FH slot(s)
  • 2 PCIe 5.0 x16 FH slot(s)
  • 2 PCIe 5.0 x16 AIOM slot(s)
Note
  • PCIe slot 2 is occupied by the Storage Controller (default configuration). If NVMe Kit exists, PCIe Slot 3 is occupied by Storage Controller instead.
Drive Bays / Storage
Hot-swap

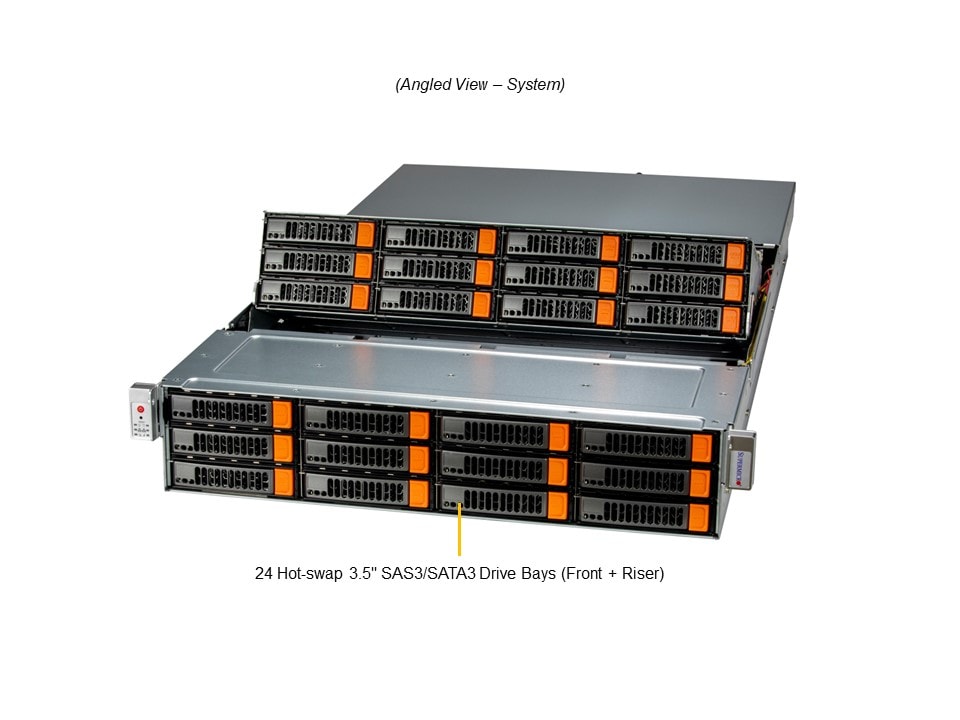

  • 24x 3.5" hot-swap SATA3/SAS3 drive bays (2x 2.5" hot-swap SATA3 rear drive bays)
M.2
  • 2 M.2 NVMe OR 2 M.2 SATA3
  • M-Key, 2280 and 22110
System Cooling
Fans
  • 4 Heavy Duty 8cm Fan(s)
Power Supply
1600W Redundant Titanium Level power supplies
Dimension

(W x H x L)
  • 73.5 x 40 x 203 mm
AC Input
  • 1000W: 100-127Vac / 50-60Hz
  • 1600W: 200-240Vac / 50-60Hz
+12V
  • Max: 83.3A / Min: 0A (100Vac-127Vac)
  • Max: 133A / Min: 0A (200Vac-240Vac)
12V SB
  • Max: 2.1A / Min: 0A
Output Type
  • Backplanes (gold finger)
Certification   Titanium Level




  [ Test Report ]
Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity:
       5% to 95% (Non-Condensing)


Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-X13SEDW-F

CSE-826S3TS-R1K62P1
1

1
Super X13SEDW-F Motherboard

2U Chassis
Add-on Card / Module AOC-S3908L-H8IR-32DD-P 1 Std LP RAID Gen4 PCIe x8 SlimSAS 8 intSAS3portsRoHS
Backplane BPN-SAS3-826SA 1 2U 12-slot LFF 3.5" SAS3 direct attached BPN for 2U24 Simply Double Server.,RoHS
BPN-SAS3-826SE1 1 2U 12-slot LFF 3.5" SAS3 Expander BPN for 2U24 Simply Double Server.,RoHS
Cable CBL-CDAT-0923A-40 1 [NR] I2C, (1x6F to 1x6F)/PH2.0,40CM,24AWG,2A/p,RoHS
CBL-MCIO-1218M5-1 1 MCIO x8 (STR to STR),18CM,85OHM,RoHS
CBL-MCIO-1260M5Y 4 MCIO (x8 to 2 x4) STR,60CM,85OHM,RoHS
CBL-PWEX-1142B-45 1 MicroHi (2x4F to 2x4F), PH3.0, 45cm, 8.5A/p,18#,RoHS
CBL-PWEX-1142B-70 1 Micro-Hi (2x4 to 2x4), PH3.0, 70cm, 8.5A/p,18AWG,RoHS
CBL-SAST-1253S4FLF-100 1 [NR]SlimSASx8 (LF to STR),53cm,FFC,32AWG,100ohm,RoHS
CBL-SAST-1258S4F-100 1 [NR]SlimSASx8 (STR to STR),58cm,FFC,32AWG,100ohm,RoHS
CBL-SAST-1295LP-100 1 SlimlineLP x4 (STR) to 4x SATA (STR),75/75/90/90/75CM,10
CBL-0459L 2 AC Power Cord Latch Clamp
CBL-CDAT-0728 1 4 Pin to 4 Pin I2C Cable, 65cm, 26AWG, 4 Wires, Pinout 1-1
CBL-PWCD-0160-IS 2 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
CBL-PWEX-0846-15 4 [NR] Fan,1x4F,PH2.5 to PH2.0,15cm,20AWG,4A/p,RoHS
Parts MCP-140-82603-0N 1 MCIO cable wire saddle for X13SEDW in SCLA26-AW
Riser Card RSC-D2-666G5 1 2U LHS DCO Riser card with three PCIe 5.0 X16 slots,HF,
RSC-D2R-666G5 1 2U RHS DCO Riser card with three PCIe 5.0 X16 slots,HF,
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0088P 1 2U Passive CPU HS for X13 Intel Eagle Stream Platform
*Power Supply PWS-1K62A-1R 2 AC-DC 1600W, Titanium Level, Redundancy, 1U, DC Output: +12V and +12Vs, 203 x 73.5 x 40 mm, AC Input: 90 - 264 VAC/47-63Hz, PMBus 1.2 with DSP controller,HF,RoHS/REACH
*Power Distributor PDB-PT826-H2824 1 2U PDB Ultra power input with redundancy support ATX output
*Fan FAN-0168L4 4 80x80x38 mm, 13.5K RPM, Middle Cooling Fan for SC226S Chassis (48-bay)
*Drive Tray(s) MCP-220-00133-0B 24 Black gen 8 hot-swap 3.5" HDD tray
*Rail Set MCP-290-00168-0N 1 Cable Management Arm, 1U height, 7.5 deep cable arm
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
Part Number Qty Description
Converter Tray MCP-220-00140-0B • - Black gen 8 hot-swap 3.5-to-2.5 Tool-less HDD tray, orange tab
Network Cards AOC-SGP-I2 - Standard LP 2-port GbE, Intel 82575
AOC-S40G-I2Q - Standard LP 2-port 40GbE controller, Intel Fortville XL710
AOC-S25G-M2S - Standard LP, 2x 25GbE SFP28, Mellanox ConnectX-4 LX EN
More - AOC Compatibility Matrix (Select Storage & Generation)
NVMe Kit (1-2 NVMe Drive Support) RSC-D-6G5 1 Riser for Rear Right NVMe Kit
CBL-PWEX-1136-70 1 Rear Right Power Cable
CBL-MCIO-1225M5Y • 1 Data Cable (1 Per NVMe Kit)
CBL-0296L • 1 Fan Cable (1 Per NVMe Kit)
MCP-240-00206-0N 1 Rear Right NVMe Kit
NVMe Kit (3-4 NVMe Drive Support) CBL-PWEX-1136-40 1 Rear Left Power Cable
CBL-PWEX-1136-70 1 Rear Right Power Cable
CBL-MCIO-1225M5Y • 2 Data Cable (1 Per NVMe Kit)
CBL-0296L • 2 Fan Cable (1 Per NVMe Kit)
MCP-240-00207-0N 1 Rear Left NVMe Kit
RSC-DR-6G5 1 Riser for Rear Left NVMe Kit
MCP-240-00206-0N 1 Rear Right NVMe Kit
RSC-D-6G5 1 Riser for Rear Right NVMe Kit
Power Cord CBL-PWCD-0579-1 - Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V
CBL-PWCD-0300-IS - PWCD,US,IEC60320 C14 TO C13,6FT,18AWG,RoHS/REACH
CBL-PWCD-0579 - Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V
Short Rail MCP-290-11808-0N - Supermicro 1U Rail Kit (Note: If short rail is used, system will not support cable management arm)
SuperCap Kit BTR-CV3908-FT1 1 LSI 3908 CacheVault kit for Fat Twin w/ 24in extension cable
TPM AOM-TPM-9671V-O 1 TPM 1.2, vertical form factor, provisioned for server
AOM-TPM-9670V-O 1 TPM 2.0, vertical form factor, provisioned for server
