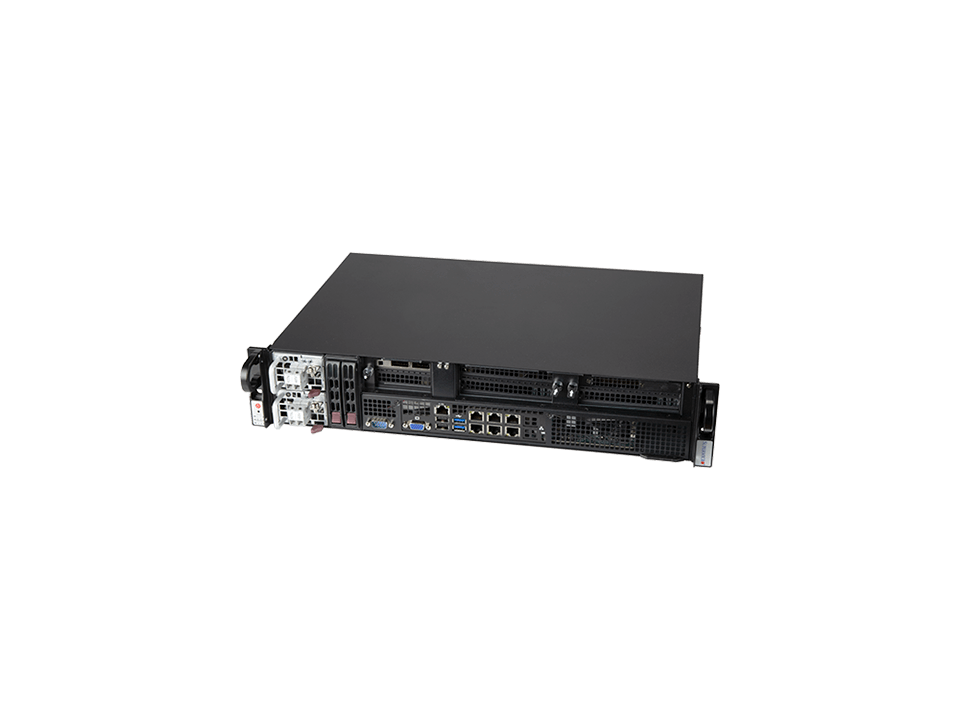

SYS-210P-FRDN6T

Key Applications
- 5G Core and Edge
- AI Inference and Machine Learning
- Network Function Virtualization
- Cloud Computing



Key Features

  1. Design with compliance to NEBS-Level 3
  2. Single Socket P+ (LGA-4189) 3rd Generation Intel® Xeon® Scalable Processors
  3. 8 DIMM slots; Up to 2TB 3DS ECC DDR4-3200: RDIMM/LRDIMM/Intel® DCPMM
  4. Up to 2 PCI-E 4.0 FHHL & 2 HHHL expansion slots for Accelerator Add-On-Cards
  5. Onboard 2x 10GbE ports & 4x 1GbE ports
  6. 2x Internal 2.5" drive bays for SATA drives
  7. Redundant 600W DC -48V Power Supplies
  8. Ultra short depth, 2U Front I/O Edge Server
Specifications
Product SKUs
SYS-210P-FRDN6T
  • SuperServer SYS-210P-FRDN6T (Silver/Black)

Motherboard


Super X12SPM-LN6TF

Processor
CPU
  • Single Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
  • Support CPU TDP 85-270W
  • Please contact Supermicro Technical Support for supporting conditions of high power (TDP >205W) processors.
Cores
  • Up to 36C/72T; Up to 60MB Cache

System Memory
Memory
  • Memory Capacity: 8 DIMM slots
  • Memory Type: 3200MHz ECC DDR4 RDIMM/LRDIMM
Memory Voltage
  • 1.2 V
Error Detection
  • ECC

On-Board Devices
SATA
  • SATA3 (6Gbps); RAID 0/1 support
Chipset
  • Intel® C621A
Network Connectivity
  • 2x 1/10GbE port(s); 4x 1GbE port(s)
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input / Output
USB
  • 2 USB 2.0 port(s) (2 front)
  • 2 USB 3.0 port(s) (2 front)
Video
  • 1 VGA port(s)
Serial Port
  • 1 COM Port(s) (1 rear)

Management
Software
  • SUM
  • SSM
  • Redfish API
  • IPMI 2.0
  • Intel® Node Manager
  • SPM
  • KVM with dedicated LAN
  • NMI
  • Watch Dog
  • SuperDoctor® 5
Power Configurations
  • ACPI Power Management

PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • CPU thermal trip support, PEPI
  • Monitoring for CPU and chassis environment
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-211M

Dimensions and Weight
Height
  • 3.5" (88.9mm)
Width
  • 17.2" (436.88mm)
Depth
  • 11.8" (298.8mm)
Package
  • 7.4" (H) x 19.3" (W) x 23.3" (D)
Weight
  • Net Weight: 17 lbs (7.7 kg)
  • Gross Weight: 22 lbs (10 kg)
Available Color
  • Silver/Black

Front Panel
Buttons
  • Power On/Off
  • UID button
LEDs
  • HDD activity
  • LAN1 activity
  • LAN2 activity
  • Power status
  • System information

Expansion Slots
PCI-Express (PCI-E)
  • Slot 1: PCIe 4.0 x16 or x8 slot (low profile)
  • Slot 2: PCIe 4.0 x16 x8 slot (low profile will be disabled if slot 1 is configured as PCIe 4.0 x16)
  • Slot 3: 1 PCI-E 4.0 x8 FHHL (optional if CPU is less than 165W with 1U heat sink)
  • Slot 5: 1 PCI-E 4.0 x16 FHHL
  • Slot 6: 1 PCI-E 4.0 x16 FHHL

Drive Bays / Storage
Hot-swap
  • 2x 2.5" hot-swap SATA drive bays
M.2
  • 1 M.2 NVMe OR 1 M.2 SATA3
  • M-Key, 2280/22110

System Cooling
Fans
  • 4 heavy duty fans with optimal fan speed control

Power Supply
600W Redundant DC -48V Power Supplies with PMBus
Total Output Power
  • 600W : (-44) - (-65) Vdc
Dimension

(W x H x L)
  • 54.5 x 40 x 220 mm
+12V
  • Max: 50A
5V SB
  • Max: 3A / Min: 0A
Certification

  [ Test Report ]

Operating Environment
Environmental Spec.
  • Operating Temperature:
       0°C ~ 35°C (32°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)


Parts List
Parts List - (Items Included)


Part Number

Qty

Description

Motherboard / Chassis MBD-X12SPM-LN6TF

CSE-211M
1

1
Super X12SPM-LN6TF Motherboard

2U Chassis
Backplane BPN-SAS3-826TQ-B2B 1 2-port 2U SAS3 12Gbps backplane, support up to 2x 2.5-inch SAS3/SATA3 HDD/SSD
Cable 1 CBL-0010L 1 9 PIN SERIAL PORT DTK CABLE, LF
Cable 2 CBL-0206L 2 48CM SATA ROUND S-S PBF
Cable 3 CBL-CDAT-0662 1 8 Pin to 8 Pin Round SGPIO Cable, 61.5cm, 28AWG, Pinout 1-1
Cable 4 CBL-PWCD-0974 2 48VDC input power cable, 2M, 12AWG, 3 wires, RoHS/REACH,RoHS
Cable 5 CBL-PWEX-1132-20 1 [NR]MicroHi 2x2F to 2x2M MicroFit, PH3.0, 20cm,7A/p,18#,RoHS
Cable 6 CBL-SAST-1206LP-85 1 SlimSASLP x8 (RA) to SlimSAS x8 (STR),26CM,85 OHM,RoH
Cable 7 CBL-SAST-1207LP-85 1 SlimSASLP x8 (STR,RSC) to SlimSAS x8 (STR),26CM,85 OHM
Cable 8 CBL-SAST-1270A-85 1 2x PCIe x16 on riser PCBA to 2x x16 edge cards,90CM,RoH
Power Distributor PDB-PT211M-3424 1 2U support redundancy powers up to 800W for SC211M with 2 Mi
Power Distributor PDB-PT211M-8824 1 (EOL)2U support redundancy powers up to 800W for SC211.,RoHS
Power Supply PWS-601S-1R 2 1U 600W Redundant DC48V input w/PMBus power supply, W54.5xH4
Riser Card RSC-H2-68G4 1 2U LHS Hyper riser card with one PCI-E 4.0 x16 and one PCI-E
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0078P 1 2U Passive CPU Heat Sink for X12 Generation Intel Whitley and Cedar Island Platforms
*Cable 9 CBL-CDAT-1058 1 [NR] NCSI 2x8 to 2x8, Ph2.54, 60cm shielded,28AWG, RoHS,RoHS
*FAN 1 FAN-0220L4 4 80x80x38 mm, 14.9K RPM Exhaust Fan for SYS-120P-FRDN6T Serve
*Front Panel FPB-TB826 1 16 pin Cable Adaptor Board for SC826
*Drive Tray(s) MCP-220-00147-0B 2 Black gen-3 hot-swap 2.5"; Tool-less HDD tray (clip design)
*Rail Set MCP-290-21106-0N 1 1U height sliding rail for SC211M chassis
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
  Part Number Qty Description
1U heat sink SNK-P0077V • - Optional 1U heatsink if CPU < 165W
2U riser card RSC-S2R-68G4 - Optional 2U Riser card for PCI-E slot 3 (PCI-E x8 FHHL) if CPU < 165W
TPM security module AOM-TPM-9670V - SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
AOM-TPM-9671V - SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor
