CSE-506TQC-R301

Key Features


  1. Mini 1U Chassis
  2. 300W Redundant High-efficiency Power Supply with Gold Level Certified

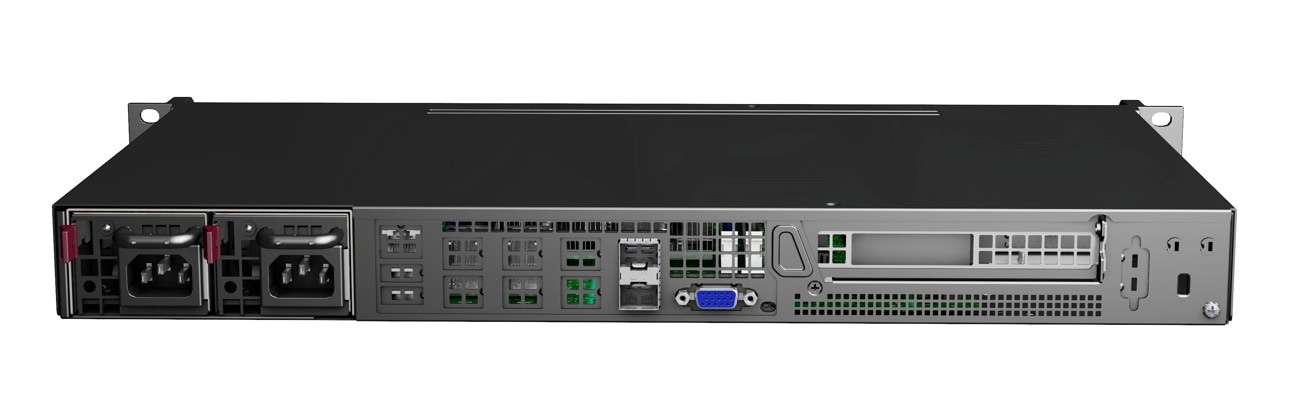

  3. Rear I/O Ports
  4. Support 2x 2.5" Hotswappable HDD/SSD + 1 Low-Profile PCIe Card
  5. OR 1x 2.5" Internal Drive Bay + 1 Full-Height, Half-Length PCIe Card
  6. OR 4x 2.5" Internal Drive Bay + 1 Low-Profile PCIe Card
  7. OR 1x 3.5" Internal Drive Bay only when using Mini-ITX MB
  8. Support Intrusion Switch Feature
  9. Optional Thermal Sensor Feature
  10. 10.Power Switch, Reset Button 6x LED Indicators

Specifications
Product SKUs
CSE-506TQC-R301
  • SuperChassis 506TQC-R301

Form Factor
  • 9.8" Black Mini 1U Form Factor which supports Flex-ATX (9"x7.5") & Mini-ITX (6.7"x6.7") MB

Processor Support
  • Single Intel® Xeon® processors, up to 65W

Dimensions
Height
  • 1.7“ (43 mm)
Width
  • 17.2“ (437 mm)
Depth
  • 9.8“ (249 mm)
Gross Weight
  • 14.5 lbs (6.58 kg)
Net Weight
  • 4.73 lbs (2.15 kg)
Packaging (W x H x L)
  • 18.7“ (475 mm) x 6.69“ (170 mm) x 25.98“ (660 mm)
Available Color
  • Black

Expansion Slots
  • Up to 1x Full-height, Half-length expansion slot(s) (Riser Card Required, See 'Drive Bays' for possible configurations)

Drive Bays
  • Or optional 4x 2.5" Internal drive bay
  • Up to 2x 2.5" hot-swap SAS3/SATA drive bay
  • Or optional 1x 3.5" Internal drive bay
  • Or optional 1x 2.5" Internal drive bay with 1 Full-height, Half-length PCI
  • Only SAS or enterprise SATA HDD recommended

Backplane
  • 2-Port 2U SAS3 12Gbps backplane, support up to 2x 2.5-inch SAS3/SATA3 HDD/SSD

Front Panel
Button
  • Power On/Off button
  • System Reset button
LED
  • HDD activity LED
  • System Information LED
  • Power Fail LED
  • 2 Network Activity LEDs
  • Power LED
Systems Cooling
Fans
  • 1x High-efficiency power supply with thermal control fan(s)
  • 3x 40x28mm PWM fan(s) (Fan PN: FAN-0065L4 / 13K RPM fan. 2 for system cooling, 1 for PCIe card cooling)

System Monitoring
  • Optional Chassis intrusion switch

Operating Environment (System)
Operating Temperature Range
  • 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)

Power Supply
300W Redundant module cable Power supply
Total Output Power and Input
  • 300W with Input 100 - 240Vac
AC Input Frequency
  • 50-60Hz
Dimensions (L x W x H)
  • 220 x 106 x 40.5 mm
Output Type
  • 24pin ATX
-12V
  • Max: 0.5A / Min: 0A
+12V
  • Max: 25A / Min: 1A (100Vac - 240Vac)
+5V
  • Max: 20A / Min: 0A
+3.3V
  • Max: 20A / Min: 0A
+5Vsb
  • Max: 3A / Min: 0A
Certification
  • 80 Plus Gold (Certification Pending)

Regulatory (Power Supply)
Power Supply Safety / EMC
  • CCC
  • CE/EMC
  • FCC class A
  • UL/CB
  • UL/CUL
Parts List
Standard Parts List
  Part Number Qty Description
HD Backplane BPN-SAS3-826TQ-B2B 1 2-port 2U SAS3 12Gbps backplane, support up to 2x 2.5-inch SAS3/SATA3 HDD/SSD
Cable(s) CBL-PWCD-0260-IS 2 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,18AWG,RoHS/REACH
Cable(s) CBL-PWEX-1097-15 1 [NR] CBL,FRONT CNTL,16 TO 16 PIN,Ribbon,15CM
Cable(s) CBL-PWEX-1098F-10 1 [NR] 16PIN CNTL PANEL CONVERTER CBL FOR SC826,PBF,FFC,10CM
Part(s) MCP-220-82618-0B 1
Part(s) MCP-230-50601-0B 1 SC506 top cover
Part(s) MCP-240-50601-0B 1 Riser bracket for SC506
Part(s) MCP-270-50601-0B 1 SC506 chassis base
Part(s) MCP-290-50401-0B 2 504, 505 handle (1pcs) kit (with screws),RoHS/REACH,PBF
Part(s) MCP-290-50601-0B 1
Part(s) MCP-120-00116-0B 1 Blank FH L-bracket with 4x4 vent holes, Black
Fan(s) FAN-0065L4 3 4028mm 13K RPM 4-PIN PWM FAN for SC813MF, SC113M
Front Panel FPB-FP826-D 1 Front control board Dual color LED(FP826-D)forSC826,213,216,219
Front Panel FPB-TB826 1 16 pin Cable Adaptor Board for SC826
Cooling Fan & Accessory MCP-320-81302-0B 3 Optional fan tray for one 40x28mm fan in SC813T/SC813LT-single PWS (Fan tray only)
Drive Tray(s) MCP-220-00147-0B 2 Black gen-3 hot-swap 2.5"; Tool-less HDD tray (clip design)
Power Distributor PDB-PT506-N24 1 1U 300W Redundant Backplane and Housing for PWS-301R-1R, RoH
Part(s) MCP-260-00100-0B 1 1U I/O Shield
Power Supply & Accessory PWS-301P-1R 2 1U 300W Redundant Single Module for PWS-301R-1R
Optional Parts List
  Part Number Qty Description
2.5" HDD Bracket N/A 1
