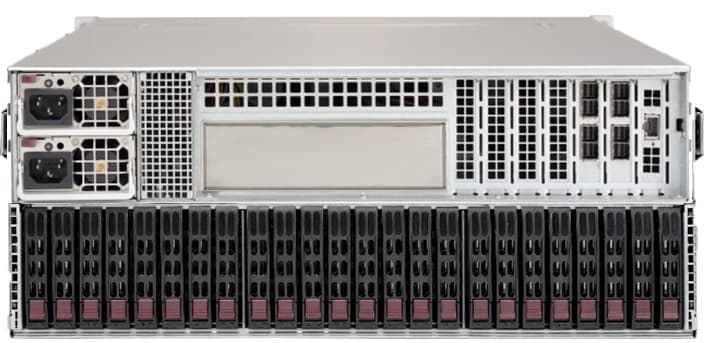

CSE-417BE1C-R1K23JBOD

Key Features


  1. Extremely high-density 4U storage server chassis (saves 2U space)
  2. Maximum drives per enclosure: 72x (48 front + 24 rear) 2.5" hot-swap HDD bays for server chassis
  3. SAS3 (12Gbps) single expander backplane
  4. 1200W Titanium Level (1+1) redundant power supplies with PMBus
  5. Optimized thermal solution with 100% redundant cooling design
  6. Qualified SAS HBA / controller:
    AOC-SAS3-9300-8E - 12Gb/s 2-external ports SAS3 HBA
    AOC-SAS3-9380-8E - 12Gb/s 2-external ports SAS3 RAID Controller

Specifications
Product SKUs
CSE-417BE1C-R1K23JBOD
  • SuperChassis 417BE1C-R1K23JBOD

Form Factor
  • 4U JBOD Storage Enclosure

Dimensions
Height
  • 7“ (178 mm)
Width
  • 17.2“ (437 mm)
Depth
  • 27.5“ (699 mm)
Gross Weight
  • 80 lbs (36.29 kg)
Packaging (W x H x L)
  • 27.2“ (691 mm) x 21“ (533 mm) x 39.6“ (1006 mm)
Available Color
  • Black

Drive Bays
  • 72x 2.5" hot-swap SAS/SATA drive bay

Qualified SAS Controllers
  • AOC-SAS3-9380-8E
  • AOC-SAS3-9300-8E

Backplane
  • 24-Port 2U SAS3 12Gbps single-expander backplane, support up to 24x 2.5-inch SAS3/SATA3 HDD/SSD

Front Panel
Button
  • Power On/Off button
  • System Reset button
  • Unit Identification (UID) button
LED
  • Power status LED
  • HDD activity LED
  • 2 Network Activity LEDs
  • Fan Fail/System Over Heat LED
Systems Cooling
Fans
  • 7x 8cm hot-swap redundant PWM cooling fan(s)

System Monitoring
  • IPMI

Operating Environment (System)
Operating Temperature Range
  • 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)

Power Supply
1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm
Power Efficiency
  • 96%
Total Output Power and Input
  • 1200W with Input 200 - 240Vac
  • 1000W with Input 100 - 127Vac
  • 1200W with Input 200 - 240Vdc
AC Input Frequency
  • 50-60Hz
Dimensions (L x W x H)
  • 336 x 76 x 40 mm
Output Type
  • Backplanes (gold finger)
+12V
  • Max: 100A / Min: 0A (200Vdc - 240Vdc)
  • Max: 100A / Min: 0A (200Vac - 240Vac)
  • Max: 83A / Min: 0A (100Vac - 127Vac)
+5Vsb
  • Max: 4A / Min: 0A
Power Distributor
  • PDB-PT416-8824
  • O/P: 12V/135
  • +5V Max: 100A
  • +3.3V Max: 30A
  • -12V Max: 0.6A
Certification
  •   Titanium Certified

Regulatory (Power Supply)
Power Supply Safety / EMC
  • BSMI
  • CCC
  • CE/EMC
  • FCC class A
  • UL/CB
  • UL/CUL
Parts List
Standard Parts List
  Part Number Qty Description
Bracket MCP-120-84702-0N 1 CB3 mounting bracket for use on chassis with CB2 holes. Bracket to mount CB3 card on existing CB2 standoff on SC847/SC417/SC837/SC826/SC836/SC846 in JBOD configuration.,HF,RoHS/REACH,PBF
Bracket MCP-120-84705-0N 1 LP PCI bracket for CBL-NTWK-0587 LAN extension cable,HF,RoHS/REACH,PBF
HD Backplane BPN-SAS3-216EL1 3 24-port 2U SAS3 12Gbps single-expander backplane, support up to 24x 2.5-inch SAS3/SATA3 HDD/SSD
Control Board CSE-PTJBOD-CB3 1 JBOD chassis power control board with IPMI remote on/off feature
Cable(s) CBL-CDAT-0601 3 4 Pin to 4 Pin I2C cable, 50cm, 26AWG,RoHS
Cable(s) CBL-NTWK-0587 1 INT RJ45M/RJ45F Adapter W/ PCB 50CM 24AWG for SC847D JBOD
Cable(s) CBL-SAST-0531 6 Internal Mini-SAS HD to Mini-SAS HD 80cm,30AWG,12Gb/s
Cable(s) CBL-SAST-0568 2 Internal Mini-SAS HD to Mini-SAS HD 35cm,30AWG,12Gb/s
Part(s) MCP-260-00011-0N 1 I/O shield without any opening
Optional Parts List
  Part Number Qty Description
Cable CBL-SAST-0690-1 • - MINI SAS HD,12G,EXT,2M,30AWG,RoHS
CBL-SAST-0573 • - External mini SAS HD to external mini SAS HD cable 28AWG (1M)
CBL-SAST-0677 • - 3m external Mini SAS HD to external mini SAS HD.28AWG,RoHS/REACH
