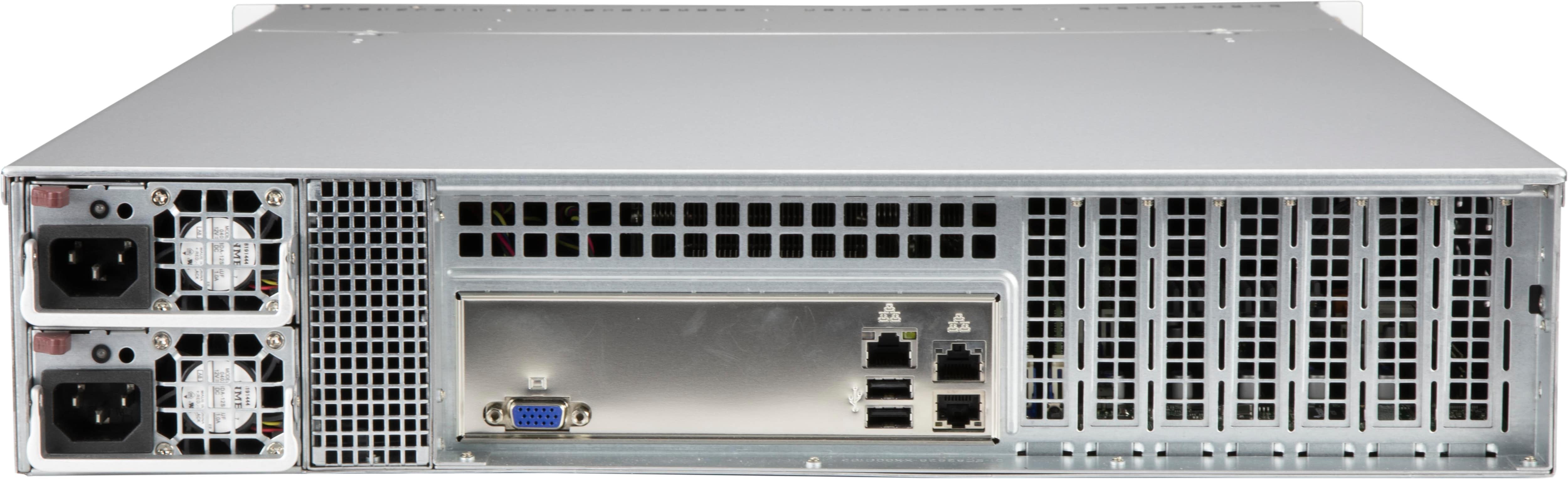

CSE-829HE1C4-R1K62LPB

Key Features


  1. 2U chassis support max. motherboard size - ATX 12" x 10", E-ATX 12" x 13", EE-ATX 13" x 13.68".
    Support up to ATX 12"x13" MB with rear 2.5" HDD option installed
  2. 8x 3.5"(tool-less) or 2.5"(screw) hot-swap SAS3/SATA drive bay
    Optional 2x 3.5" fixed drive bay,
    Optional rear 2x 2.5" hot-swap drive bay kit
  3. 2U 8-Slot 12G Backplane for 8x 3.5" SAS3/SATA HDD/SSD
  4. 600W / 650W 1U Redundant Power Supply
  5. 7 low-profile expansion slot(s)
  6. 3x 80mm heavy duty fan(s) with PWM fan(s) speed control
  7. Support Service Tag for system information.
  8. OEM Only, MOQ Applies

Specifications
Product SKUs
CSE-LA25TQC-R609LP
  • SuperChassis LA25TQC-R609LP

Form Factor
  • 2U chassis support max. motherboard size - ATX 12" x 10", E-ATX 12" x 13", EE-ATX 13" x 13.68". Support up to ATX 12"x13" MB with rear 2.5" HDD option installed

Processor Support
  • Dual and Single Intel® and AMD processors

Dimensions
Height
  • 3.5“ (89 mm)
Width
  • 17.2“ (437 mm)
Depth
  • 25.5“ (647 mm)
Gross Weight
  • 33 lbs (14.97 kg)
Packaging (W x H x L)
  • 24“ (610 mm) x 9“ (229 mm) x 34“ (864 mm)
Available Color
  • Black

Expansion Slots
  • 7x Low-profile expansion slot(s)

Drive Bays
  • Optional 2x 2.5" hot-swap SAS3/SATA drive bay
  • Optional 2x 3.5" fixed drive bay
  • 8x 3.5" (tool-less) or 2.5" (screw) hot-swap SAS3/SATA drive bay

Backplane
  • 8-Port 2U SAS3 12Gbps TQ backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD

Peripheral Drives
  • Optional 1x slim DVD-ROM drive bay
  • Optional 1x COM port tray
  • Optional 2x USB 2.0 ports
  • Optional 2x USB 3.0 ports

Front Panel
Button
  • Power On/Off button
  • System Reset button
LED
  • Power status LED
  • HDD activity LED
  • System Information LED
  • Power Fail LED
  • 2 Network Activity LEDs
Systems Cooling
Fans
  • 3x 80mm heavy duty fan(s) with PWM fan(s) speed control

System Monitoring
  • Optional Chassis intrusion switch

Operating Environment (System)
Operating Temperature Range
  • 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)

Power Supply
600W / 650W 1U Redundant Power Supply
Power Efficiency
  • 94%
Total Output Power and Input
  • 650W with Input 200 - 240Vac
  • 600W with Input 100 - 127Vac
  • 650W with Input 200 - 240Vdc
AC Input Frequency
  • 50-60Hz
Dimensions (L x W x H)
  • 336 x 76 x 40 mm
Output Type
  • Backplanes (gold finger)
+12V
  • Max: 54.16A / Min: 0A (200Vdc - 240Vdc)(for CCC only)
  • Max: 54.16A / Min: 0A (200Vac - 240Vac)
  • Max: 50A / Min: 0A (100Vac - 127Vac)
+5Vsb
  • Max: 4A / Min: 0A
Power Distributor
  • PDB-PT826-L8824
  • O/P: 12V/75
  • +5V Max: 30A
  • +3.3V Max: 24A
  • -12V Max: 0.6A
Certification
  •   Platinum Certified

Regulatory (Power Supply)
Power Supply Safety / EMC
  • BSMI
  • CCC
  • CE/EMC
  • FCC
Parts List
Standard Parts List
  Part Number Qty Description
HD Backplane BPN-SAS3-825TQ 1 8-port 2U SAS3 12Gbps TQ backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD
Cable(s) CBL-0071L 1 ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
Part(s) MCP-120-00115-0N 7 Blank LP L-bracket with 4x4 vent holes
Part(s) MCP-230-82602-0N 1 Top cover for SC826B/216B/825B
Part(s) MCP-290-82519-0B 2 Black FDD dummy cover for CSE-LA25 (5x5)
Part(s) MCP-290-82501-0V 2 Silver chassis handle for SC825,828
CD-ROM & Accessory MCP-290-82518-0B 1 Black DVD / USB dummy cover for CSE-LA25
Fan(s) FAN-0181L4 3 80x80x38 mm, 9.4K RPM, Hot-swappable Middle Cooling Fan for X11 Purley Platform Newly Enabled 2U+ Chassis
Front Panel FPB-FP836-D 1 Front control board Dual color LED(FP836-D)forSC823M,825,825M,828,829,835,836
Drive Tray(s) MCP-220-00184-0B 8 Black gen-9 tool-less cost-effective 3.5
Drive Tray(s) MCP-290-82607-0N 1 826B/216B rear dummy cover for 2 X 2.5
Power Distributor PDB-PT826-L8824 1 2U cost effective PDB support up to 1200W.,RoHS
Power Supply & Accessory PWS-609P-1R2 2 1U, platinum efficiency, 600W/650W, AC input: 100-127/200-240Vac.
Rear Window MCP-240-82608-0N 1 216B/826B LP rear window,RoHS/REACH,PBF
Optional Parts List
  Part Number Qty Description
Air Shroud MCP-310-29001-0N - SC825/826/216/213 Intel DP X9,X8 air shroud 13.68x13/12x13
Cable CBL-0160L - NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt)
HDD Kit MCP-220-82502-0B - Black fixed 3.5" HDD tray tray for CSE-825/CSE-LA25
MCP-220-82616-0N • - 12G 2.5x2 Drive Kit w/ Status LED(216B/826B/417B/846X/847B)
Rail MCP-290-00053-0N • - Rail set, quick/quick, default for 2,3U 17.2"W
Short Rail MCP-290-00058-0N • - Short rail set, quick release, 19.6"~26.9" Extendable Length
Motherboard (for CSE-LA25TQC-R609LP)
X11DPI-N X11DPI-NT X11DPL-I X11SCL-F
X11SPL-F X11SRL-F X12DPi-N6 X12DPi-NT6
X12DPL-i6 X12DPL-NT6 X12SPI-TF X12SPL-F
X12SPL-LN4F X12SPM-LN4F X12SPM-LN6TF X12SPM-TF
= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU
