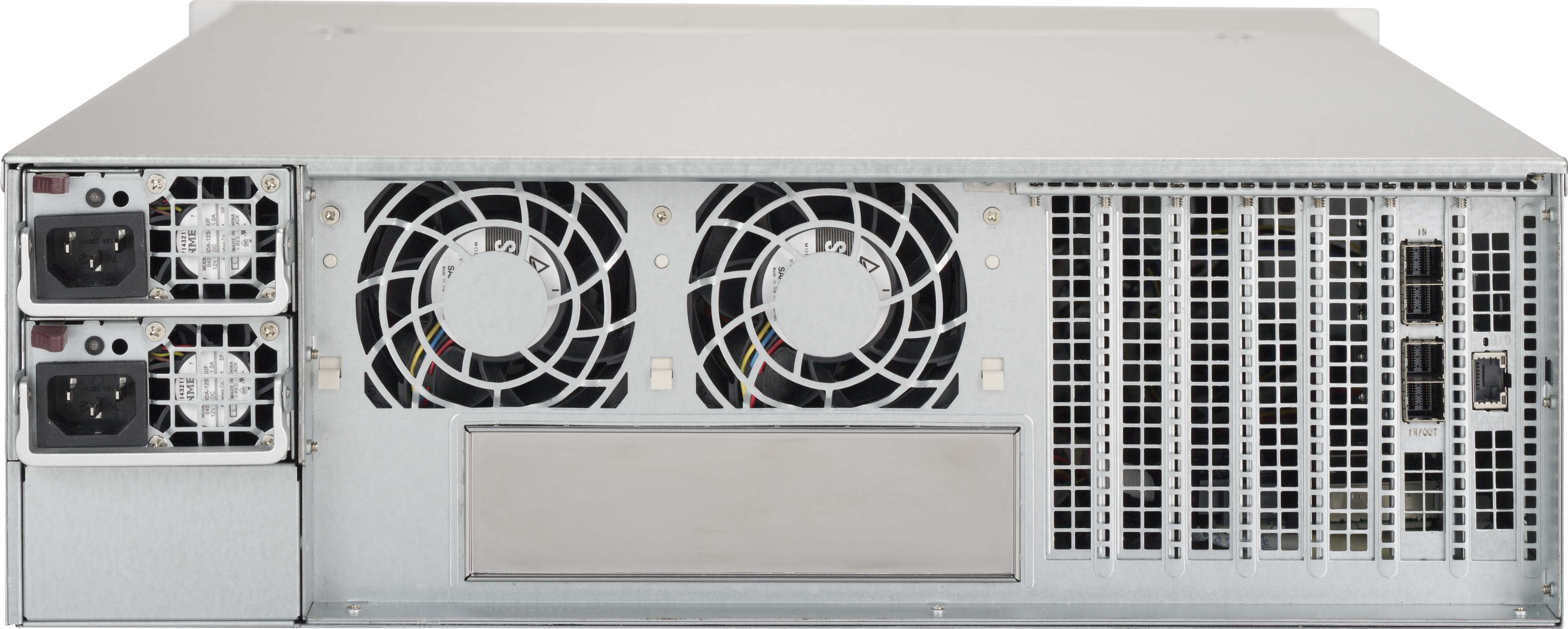

CSE-512L-200B

Key Features


  1. Cloud Backup, Data Replication, or High Density Archive Storage Applications

    3U Storage JBOD Chassis with capacity 16 x 3.5" hot-swappable HDDs bays
  2. Single Expander Backplane Boards support SAS3/2 HDDs with 12Gb/s throughput
  3. 4 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements
  4. 1x IPMI port for Remote System Power on/off and system monitoring
  5. Support NTP for time synchronization & RTC battery backup
  6. 600W (1+1) 94% efficient Platinum level power supplies
  7. 5 hot-plug redundant cooling fans
  8. Ideal for Cloud backup, data Replication or High desnsity Archive Storage Applications
  9. Qualified SAS HBA / controller:
    AOC-SAS3-9500-8E - 12Gb/s 2-external ports SAS3 HBA
    AOC-SAS3-9500-16E - 12Gb/s 4-external ports SAS3 HBA
    AOC-SAS3-9580-8I8E - 12Gb/s 2-external ports SAS3 RAID Controller

Specifications
Product SKUs
CSE-836BE1C-R609JBOD
  • SuperChassis 836BE1C-R609JBOD

Form Factor
  • 3U JBOD storage chassis

Dimensions
Height
  • 5.2“ (132 mm)
Width
  • 17.2“ (437 mm)
Depth
  • 25.5“ (647 mm)
Gross Weight
  • 75 lbs (34.02 kg)
Net Weight
  • 36 lbs (16.33 kg)
Packaging (W x H x L)
  • 26.6“ (676 mm) x 13“ (330 mm) x 39.9“ (1013 mm)
Available Color
  • Black

Drive Bays
  • 16x 3.5" hot-swap HDD bay for JBOD solution

Qualified SAS Controllers
  • AOC-SAS3-9380-8E: SAS 12Gb/s PCIe 3.0 8-Port MegaRAID Controller
  • AOC-SAS3-9300-8E: SAS 12Gb/s PCIe 3.0 8-Port Host Bus Adapter
  • AOC-SAS3-9500-8E: SAS 12Gb/s PCIe 4.0 8-Port Host Bus Adapter
  • AOC-SAS3-9500-16E: SAS 12Gb/s PCIe 4.0 16-Port Host Bus Adapter
  • AOC-SAS3-9580-8I8E: SAS 12Gb/s PCIe 4.0 8-Port MegaRAID Controller

Backplane
  • 16-Port 3U SAS3 12Gbps single-expander backplane, support up to 16x 3.5-inch SAS3/SATA3 HDD/SSD

Front Panel
Button
  • Power On/Off button
  • System Reset button
  • Unit Identification (UID) button
LED
  • 1 Network activity LEDs
Systems Cooling
Fans
  • 2x 8cm hot-swap exhaust fan(s) & air shroud
  • 3x 8cm hot-swap redundant PWM cooling fan(s)

System Monitoring
  • IPMI

Operating Environment (System)
Operating Temperature Range
  • 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)

Power Supply
600W / 650W 1U Redundant Power Supply
Power Efficiency
  • 94%
Total Output Power and Input
  • 650W with Input 200 - 240Vac
  • 600W with Input 100 - 127Vac
  • 650W with Input 200 - 240Vdc
AC Input Frequency
  • 50-60Hz
Dimensions (L x W x H)
  • 336 x 76 x 40 mm
Output Type
  • Backplanes (gold finger)
+12V
  • Max: 54.16A / Min: 0A (200Vdc - 240Vdc)(for CCC only)
  • Max: 54.16A / Min: 0A (200Vac - 240Vac)
  • Max: 50A / Min: 0A (100Vac - 127Vac)
+5Vsb
  • Max: 4A / Min: 0A
Power Distributor
  • PDB-PT826-8824
  • O/P: 12V/135
  • +5V Max: 40A
  • +3.3V Max: 24A
  • -12V Max: 0.6A
Certification
  •   Platinum Certified

Regulatory (Power Supply)
Power Supply Safety / EMC
  • BSMI
  • CCC
  • CE/EMC
  • FCC
Parts List
Standard Parts List
  Part Number Qty Description
Air Shroud MCP-310-39001-0N 1 SC835/836/936 Intel DP X9-X10 PC air shroud 1368x13/12x13MB
Bracket MCP-120-84702-0N 1 CB3 mounting bracket for use on chassis with CB2 holes. Bracket to mount CB3 card on existing CB2 standoff on SC847/SC417/SC837/SC826/SC836/SC846 in JBOD configuration.,HF,RoHS/REACH,PBF
Bracket MCP-120-84706-0N 1 FH PCI bracket for CBL-NTWK-0587 LAN extension cable,HF,RoHS/REACH,PBF
HD Backplane BPN-SAS3-836EL1 1 16-port 3U SAS3 12Gbps single-expander backplane, support up to 16x 3.5-inch SAS3/SATA3 HDD/SSD
Control Board CSE-PTJBOD-CB3 1 JBOD chassis power control board with IPMI remote on/off feature
Cable(s) CBL-0071L 1 ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
Cable(s) CBL-0088L 1 10.5" 4PIN FAN POWER CORD FOR 743X-645,PBF
Cable(s) CBL-0296L 3 9" 4 PIN FAN PWS EXTENSION CORD, PBF
Cable(s) CBL-CDAT-0601 1 4 Pin to 4 Pin I2C cable, 50cm, 26AWG,RoHS
Cable(s) CBL-NTWK-0587 1 INT RJ45M/RJ45F Adapter W/ PCB 50CM 24AWG for SC847D JBOD
Cable(s) CBL-SAST-0532 4 Internal Mini-SAS HD to Mini-SAS HD 50cm,30AWG,12Gb/s
Part(s) MCP-230-82501-0N 1 Top cover for SC213,216,825,826,835,836,936,846
Part(s) MCP-120-00061-0N 7 Blank FH L-bracket (5x5 square hole)
Part(s) MCP-290-00088-0N 1 SC119 Intrusion assembly
Part(s) MCP-290-83603-0N 1 SC836 HDD backplane bracket
Part(s) MCP-290-83605-0N 1 836B rear dummy cover for 2 X 2.5"; HDD cage
CD-ROM & Accessory MCP-290-00007-01 1 Black DVD dummy cover for SC825, 836
Fan(s) FAN-0125L4 2 80x32 mm 6.7K RPM SC836 Rear Exhaust Fan w/ Housing
Fan(s) FAN-0126L4 3 80x80x38 mm 7K RPM Chassis Middle Fan w/ Housing
Drive Tray(s) MCP-220-00007-01 1 Black USB/COM port tray for SC825, 836
Drive Tray(s) MCP-220-00075-0B 16 Black gen 5.5 hot-swap 3.5“ HDD tray
Power Distributor PDB-PT826-8824 1 PDB with longer 24pin for SC826B
Part(s) MCP-290-83601-0V 1 set Silver chassis handles (left and right) for SC836/835
Part(s) MCP-260-00011-0N 1 I/O shield without any opening
Power Supply & Accessory PWS-609P-1R2 2 1U, platinum efficiency, 600W/650W, AC input: 100-127/200-240Vac.
Mounting Rail(s) MCP-410-00007-0N 1 Rail screw bag
Mounting Rail(s) MCP-290-00053-0N 1 Rail set, quick/quick, default for 2,3U 17.2";W
Rear Window MCP-240-83605-0N 1 836B chassis rear window (to support the optional MCP-220-83605-0N)
Optional Parts List
  Part Number Qty Description
Cable CBL-SAST-0690-1 • - MINI SAS HD,12G,EXT,2M,30AWG,RoHS
CBL-SAST-0573 • - External mini SAS HD to external mini SAS HD cable 28AWG (1M)
CBL-SAST-0677 • - 3m external Mini SAS HD to external mini SAS HD.28AWG,RoHS/REACH
Drive Trays MCP-220-00118-0B • - Black gen-5.5 tool-less 3.5-to-2.5 converter drive tray,RoHS/REACH
