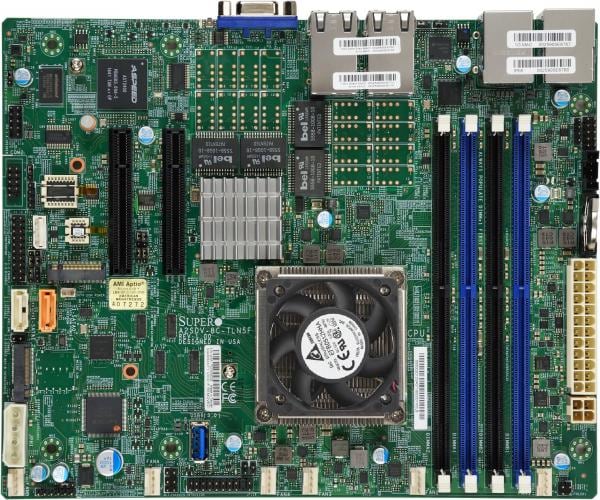

A2SDV-12C+-TLN5F

Key Features


  1. Intel Atom Processor C3858,
    Single Socket FCBGA1310 supported,
    CPU TDP support 25W
  2. Intel Quick Assist Technology
  3. Up to 256GB Registered ECC DDR4-2400MHz,
    Up to 64GB Unbuffered ECC/Non-ECC DDR4-2400MHz; in 4 DIMM slots
  4. Expansion slots:
    1 PCI-E 3.0 x8 (Slot 6 or 7 option)
  5. M.2 Interfaces:
    1 M-Key 2242/80 supports PCI-E 3.0 x2/SATA
    1 B-Key 3042/2280 supports PCI-E 3.0 x2/SATA/USB
  6. 4x 10GbE LAN ports,
    1x 1GbE LAN port (IPMI shared LAN)
  7. 2 SATA3 (6 Gbps) ports
  8. Supports 12V DC power input
  9. System on Chip
  10. I/O: 1 VGA, 2 COM (1 via header, 1 rear RJ45), TPM header
  11. 5 USB 3.0 (4 rear, Type-A)
    2 USB 2.0 (2 via headers)
Specifications
Product SKUs
MBD-A2SDV-12C+-TLN5F
  • A2SDV-12C+-TLN5F

Physical Stats
Form Factor
  • Flex ATX
Dimension
  • 9" x 7.25" (22.86cm x 18.42cm)

Processor
CPU
  • Intel® Atom® Processor C3858
  • Single Socket FCBGA-1310 supported, CPU TDP supports Up to 25W TDP
Core
  • Up to 12 cores, 12 threads / 12MB Cache
Note

System Memory
Memory Capacity
  • 4 DIMM slots
  • Up to 256GB ECC RDIMM, DDR4-2400MHz; Up to 64GB ECC/non-ECC UDIMM, DDR4-2400MHz
Memory Type
  • 2400/2133/1866/1600MHz ECC/non-ECC DDR4 RDIMM
DIMM Sizes
  • 4GB, 8GB, 16GB, 32GB, 64GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset
  • System on Chip
SATA
  • SoC controller for 2 SATA3 (6 Gbps) ports
IPMI
  • ASPEED AST2400 BMC
Graphics
  • ASPEED AST2400 BMC
Network Controllers
  • Quad LAN with 10GBase-T with Intel® X557
  • Single LAN with Intel® i210 Gigabit Ethernet Controller

Input / Output
LAN
  • 4 RJ45 10GBase-T ports
  • 1 RJ45 GbE port (IPMI Shared LAN)
USB
  • 5 USB 3.2 Gen1 port(s) (4 rear; 1 type A)
  • 2 USB 2.0 port(s) (2 via header)
Video Output
  • 1 VGA port(s)
Serial Port
  • 1 COM Port(s) (1 header)
DOM
  • 1 SuperDOM (Disk on Module) ports
TPM
  • 1 TPM Header
Expansion Slots
PCI-E
  • 1 PCI-E 3.0 x8
  • Option for Slot 6 or Slot 7
M.2

System BIOS
BIOS Type
  • AMI UEFI
BIOS Features
  • UEFI 2.4
  • SMBIOS 2.7.1

Management
Software
  • SuperDoctor® 5, NMI, IPMI2.0, Watchdog
System Management Software
  • SuperDoctor 5, IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
Power Configurations
  • Power-on mode for AC power recovery, ATX Power connector, +12V DC Power Input, CPU thermal trip support for processor protection

PC Health Monitoring
Voltage
  • VBAT, System temperature, System level control, Supports system management utility, Monitors CPU voltages, Chassis intrusion header, 6 -fan status, 3.3V standby, 1.2V (VDIMM), 1.05 (PCH), +5V standby, +5V, +3.3V, +12V
LED
  • UID/Remote UID
Temperature
  • CPU thermal trip support
FAN
  • 6x 4-pin fan headers (up to 6 fans)
  • Thermal control tachometer fan connectors, System level control, Fan speed control, Dual Cooling Zone, 6 fans with tachometer status monitoring, Status monitoring for speed control, Pulse Width Modulated (PWM) fan connectors, Support 3-pin fans (w/o speed control)
Other Features
  • WOL, UID, System level control, RoHS, M.2 NGFF connector, Dual Cooling Zones, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, Chassis intrusion detection, ATX Power connector, 12V DC or ATX Power Source, SDDC, Intel® QuickAssist Technology, Innovation Engine, 4-pin 12v DC power connector

Operating Environment
Operating Temperature Range
  • 0°C - 60°C (32°F - 140°F)
Non-Operating Temperature Range
  • -40°C - 85°C (-40°F - 185°F)
Operating Relative Humidity Range
  • 10% - 85% (non-condensing)
Non Operating Relative Humidity Range
  • 10% - 95% (non-condensing)
Parts List
Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-A2SDV-12C+-TLN5F 1 A2SDV-12C+-TLN5F Motherboard
I/O Shield MCP-260-00084-0N • 1 Standard I/O Shield for A2SDV-TLN5F
SATA Cables CBL-0044L • 2 57.5CM SATA FLAT S-S PBF
Parts List (Retail Package)
Name Part Number Qty Description
Motherboard MBD-A2SDV-12C+-TLN5F 1 A2SDV-12C+-TLN5F Motherboard
I/O Shield MCP-260-00084-0N • 1 Standard I/O Shield for A2SDV-TLN5F
QRG MNL-2015-QRG 1 Motherboard Quick Reference Guide
SATA Cables CBL-0044L • 2 57.5CM SATA FLAT S-S PBF
Optional Parts List
Name Part Number Qty Description
1U I/O Shield MCP-260-00079-0N
MCP-260-00085-0B
--
--
1U I/O Shield for A2SDV-TLN5F in SC813/512 Chassis
1U I/O Shield for A2SDV-TLN5F in SC510/505/504 Chassis
Chassis (Optimized for A2SDV-12C+-TLN5F)
Embedded Compact 1U 2U 3U Mid/Mini-Tower             4U/Tower
SC505-203B
SC504-203B
= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU
