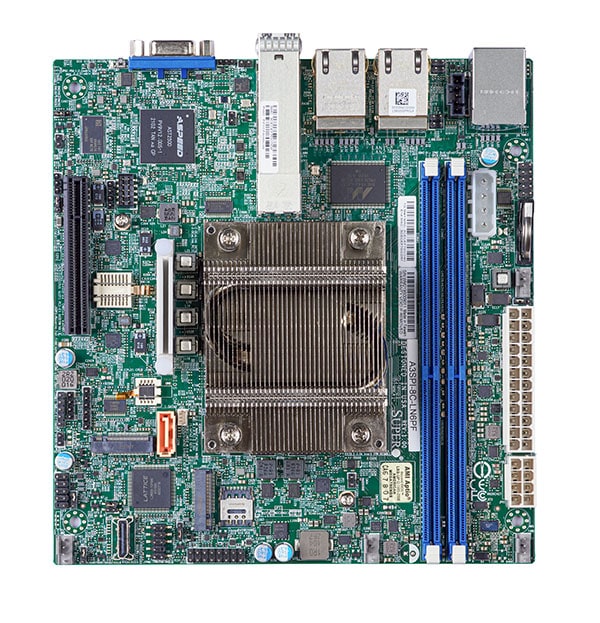

A3SPI-8C-LN6PF

Key Features


  1. System on Chip
  2. Intel Atom Processor C5325,
    Single Socket FCBGA-2106 supported,
    CPU TDP support 41W
  3. Intel Quick Assist Technology
  4. Up to 128GB ECC RDIMM DDR4-2933MHz, in 2 DIMM slots
  5. 2 SFP ports and 4 GbE LAN ports
  6. Supports 12V DC power input
  7. Up to 5 SATA3 ports from SoC (1 via SATA port, 4 via Oculink)
  8. I/O: 1 VGA, 1 COM, TPM 2.0 onboard and header both
  9. 2 USB 3.0 (Type-A on rear)
    2 USB 2.0 (via headers)
  10. M.2 Interface:
    1x M.2 B-Key 3052 w/PCIe 3.0 & SATA3 & USB3.0
    1x M.2 M-Key 2280 w/PCIe3.0
  11. Expansion slots:
    1 PCI-E 3.0 x2 (in x8 slot)
Specifications
Product SKUs
MBD-A3SPI-8C-LN6PF
  • A3SPI-8C-LN6PF

Physical Stats
Form Factor
  • Mini-ITX
Dimension
  • 6.7" x 7.1" (17.02cm x 18.3cm)

Processor
CPU
  • Intel® Atom® Processor C5325
  • Single Socket FCBGA-2106 supported, CPU TDP supports Up to 41W TDP
Core
  • Up to 8 cores / 9MB Cache

System Memory
Memory Capacity
  • 2 DIMM slots
  • Up to 128GB ECC RDIMM, DDR4-2933MHz
Memory Type
  • 2933/2666/2400MHz ECC DDR4 RDIMM
DIMM Sizes
  • 8GB, 16GB, 32GB, 64GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset
  • System on Chip
SATA
  • SoC controller for 1 SATA3 (6 Gbps) ports
IPMI
  • ASPEED AST2500 BMC
Graphics
  • Aspeed AST2500 BMC
Network Controllers
  • Quad LAN with 1GbE LAN via Marvell PHY 88E1543
  • Dual LAN with 1GbE SFP via SoC

Input / Output
LAN
  • 4 RJ45 Gigabit Ethernet LAN ports
  • 2 SFP
USB
  • 2 USB 2.0 port(s) (2 via header)
  • 2 USB 3.0 port(s) (2 rear)
Video Output
  • 1 VGA D-Sub Connector port(s)
Serial Port
  • 1 COM Port(s) (1 header)
DOM
  • 1 SuperDOM (Disk on Module) ports
TPM
  • 1 TPM Header & Chip both
Others
  • 1 8-bit GPIO header
  • 1 Oculink
Expansion Slots
PCI-E
  • 1 PCI-E 3.0 x2 (in x8 slot)
M.2
  • M.2 Interface: 1 PCI-E 3.0 x4; 1 SATA/PCI-E 3.0 x2/USB 3.0
  • Form Factor: 2280, 3052
  • Key: M-Key, B-Key

System BIOS
BIOS Type
  • 32MB AMI UEFI
BIOS Features
  • UEFI 2.7
  • SMBIOS 3.0 or later
  • ACPI 6.0 or later

Management
Software
  • Watchdog, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, SuperDoctor® 5
System Management Software
  • IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support, SuperDoctor® 5
Power Configurations
  • ATX Power connector, +12V DC Power Input, CPU thermal trip support for processor protection, Power-on mode for AC power recovery

PC Health Monitoring
Voltage
  • VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chassis intrusion header, 4 -fan status, 3.3V standby, 1.2V (VDIMM), 1.05 (PCH), +5V standby, +5V, +3.3V, +12V
LED
  • UID/Remote UID
Temperature
  • CPU thermal trip support
FAN
  • 4x 4-pin fan headers (up to 4 fans)
  • Thermal control tachometer fan connectors, Fan speed control, Dual Cooling Zone, 4 fans with tachometer monitoring, Status monitoring for speed control, Pulse Width Modulated (PWM) fan connectors, Support 3-pin fans (w/o speed control)
Other Features
  • UID, RoHS, M.2 NGFF connector, Chassis intrusion header, ATX Power connector, ACPI power management, 8-pin 12v DC power connector, 12V DC or ATX Power Source, Intel® QuickAssist Technology

Operating Environment
Operating Temperature Range
  • 0°C - 60°C (32°F - 140°F)
Non-Operating Temperature Range
  • -40°C - 85°C (-40°F - 185°F)
Operating Relative Humidity Range
  • 10% - 85% (non-condensing)
Non Operating Relative Humidity Range
  • 10% - 95% (non-condensing)
Parts List
Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-A3SPI-8C-LN6PF 1 A3SPI-8C-LN6PF Motherboard
1U I/O Shield MCP-260-00173-0N 1 STD I/O Shield for A3SPI with EMI Gasket
SATA cable CBL-0044L • 1 57.5CM SATA FLAT S-S PBF
Parts List (Retail Package)
Name Part Number Qty Description
Motherboard MBD-A3SPI-8C-LN6PF 1 A3SPI-8C-LN6PF Motherboard
I/O Shield MCP-260-00173-0N 1 STD I/O Shield for A3SPI with EMI Gasket
OCuLink to SATA Cable CBL-SAST-0933 • 1 SATA Cables
QRG MNL-2467-QRG 1 Motherboard Quick Reference Guide
SATA cable CBL-0044L • 1 57.5CM SATA FLAT S-S PBF
Optional Parts List
Name Part Number Qty Description
1U I/O Shield MCP-260-00175-0B - 1U E300/E302/E200 I/O Shield for A3SPI with EMI Gasket
